Intermediate/Overdrive Cylinder Assembly, Disassembled View

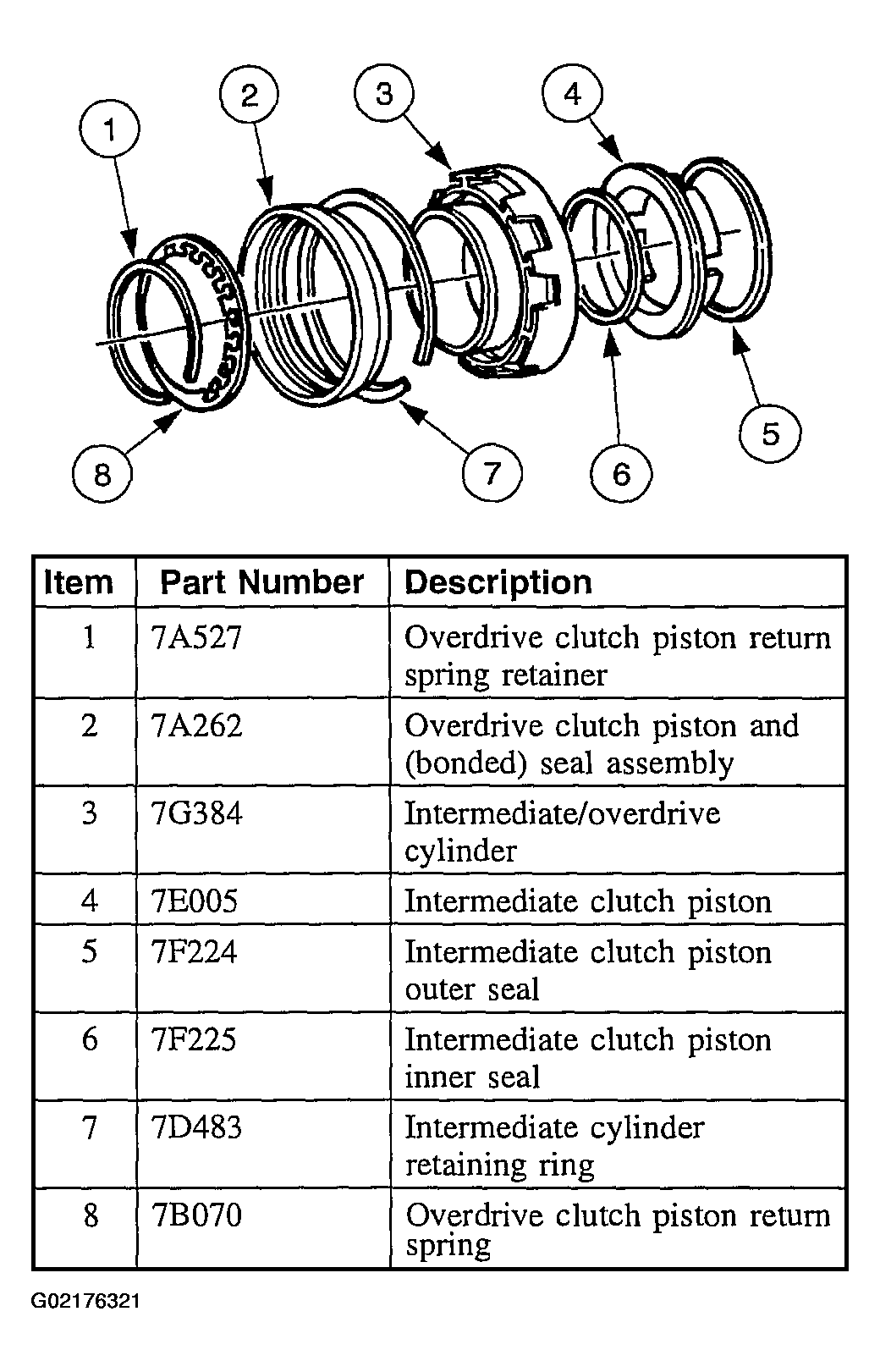

Fig 1: Identifying Components Of Intermediate/Overdrive Cylinder Assembly
G02176321Courtesy of FORD MOTOR CO.
