Fluid Capacity

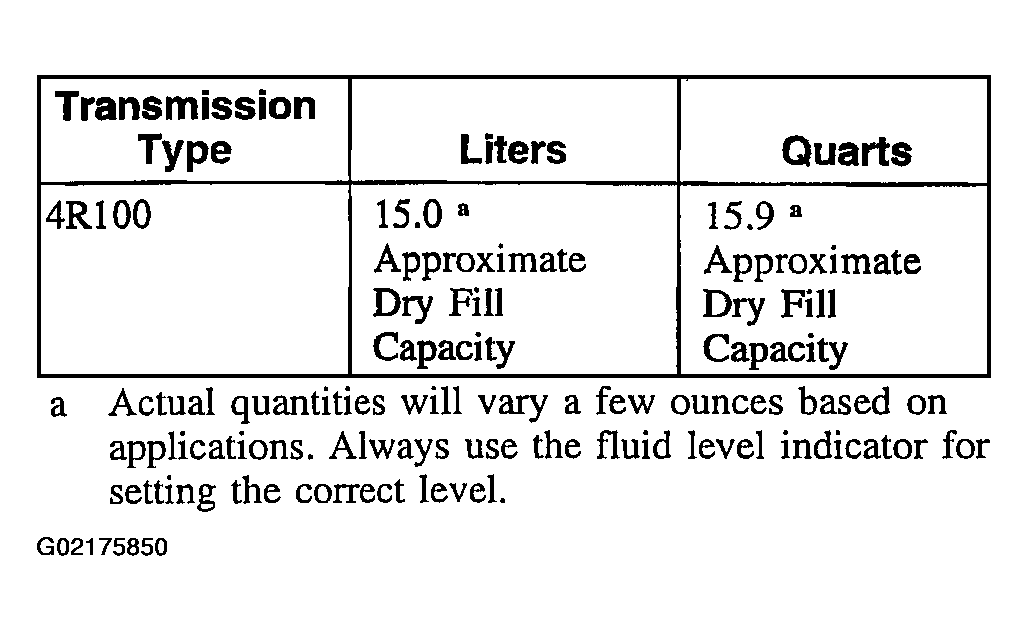

Fig 1: Fluid Capacity Chart

Courtesy of FORD MOTOR CO.

CAUTION: Using a transmission fluid that indicates a dual usage MERCON® and MERCON® V) in a transmission application requiring MERCON®, may cause transmission damage. Use of any fluid other than the recommended fluid may cause transmission damage.

NOTE: Refer to the fluid level indicator and the Owner's Guide for the type of transmission fluid required. Some fluid labels may indicate dual usage such as MERCON® and MERCON® V. These dual-usage fluids are not to be used in transmissions that use only the MERCON® type fluid. These dual-usage fluids may be used in transmissions that require MERCON® V use.

NOTE: Always use the fluid level indicator to check and set the correct level of transmission fluid.

The above fluid capacities are approximate dry fill capacity and include fluid coolers and fluid cooler tubes. The fluid level indicator should be used to determine actual fluid requirement and fluid specifications. Check level at operating temperature. DO NOT OVERFILL.

The transmission fluid should be changed every 30,000 miles (48,000 km) regardless of normal or special operating conditions.

Once the vehicle is equipped with the in-line transmission fluid filter, a new filter should be installed every 30,000 miles (48,000 km). A new in-line transmission fluid filter should also be installed during any transmission overhaul, exchange, repair or if internal contamination is present. If the vehicle is equipped with an in-line transmission fluid filter, only a new filter needs to be installed. If the vehicle is not equipped with an in-line transmission fluid filter, a new in-line transmission fluid filter kit should be installed.
