Pinpoint Test F: The Smart Lock Does Not Operate Properly

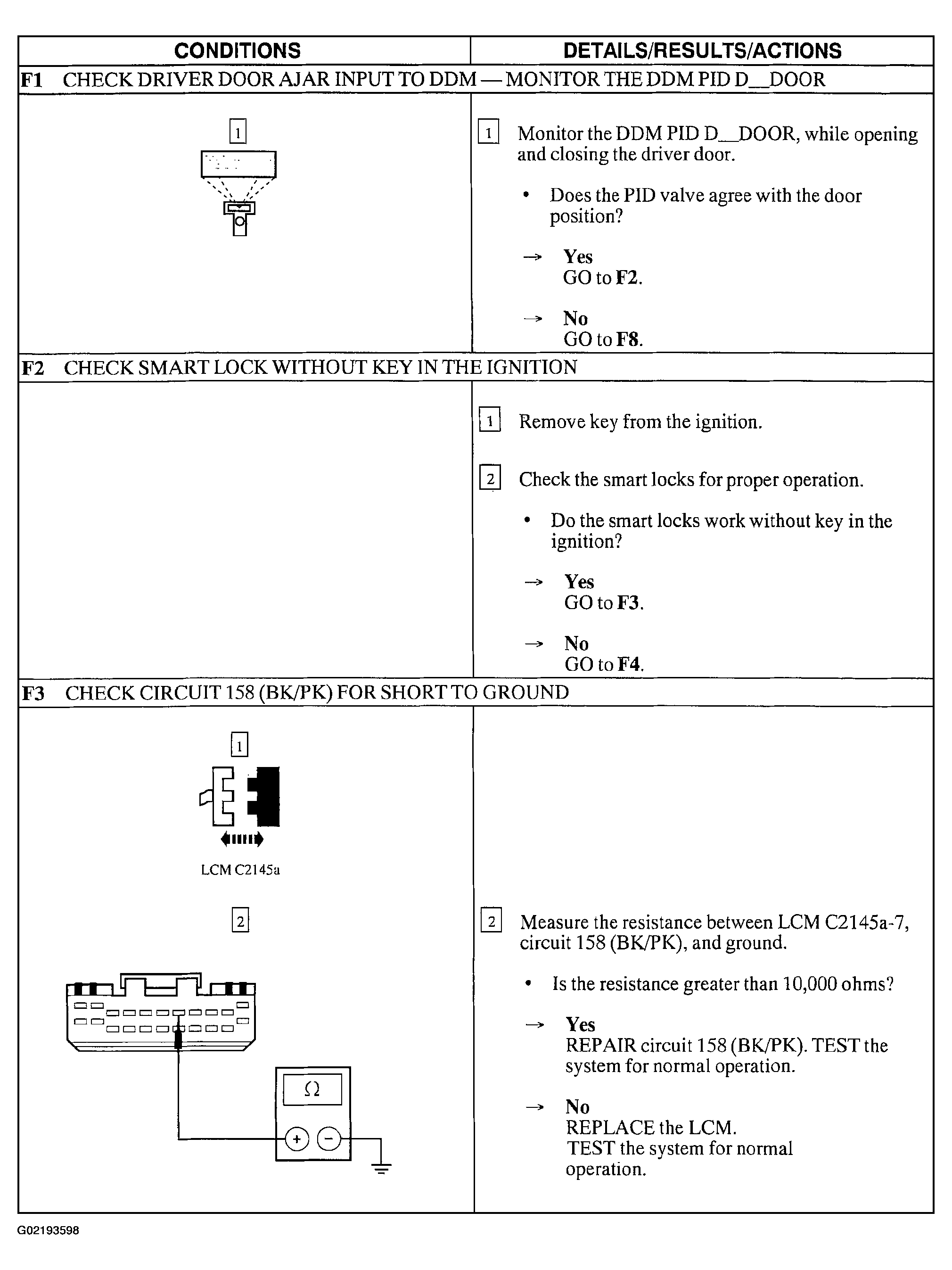

Fig 1: Pinpoint Test F: The Smart Lock Does Not Operate Properly (Steps F1-F3)

Courtesy of FORD MOTOR CO.

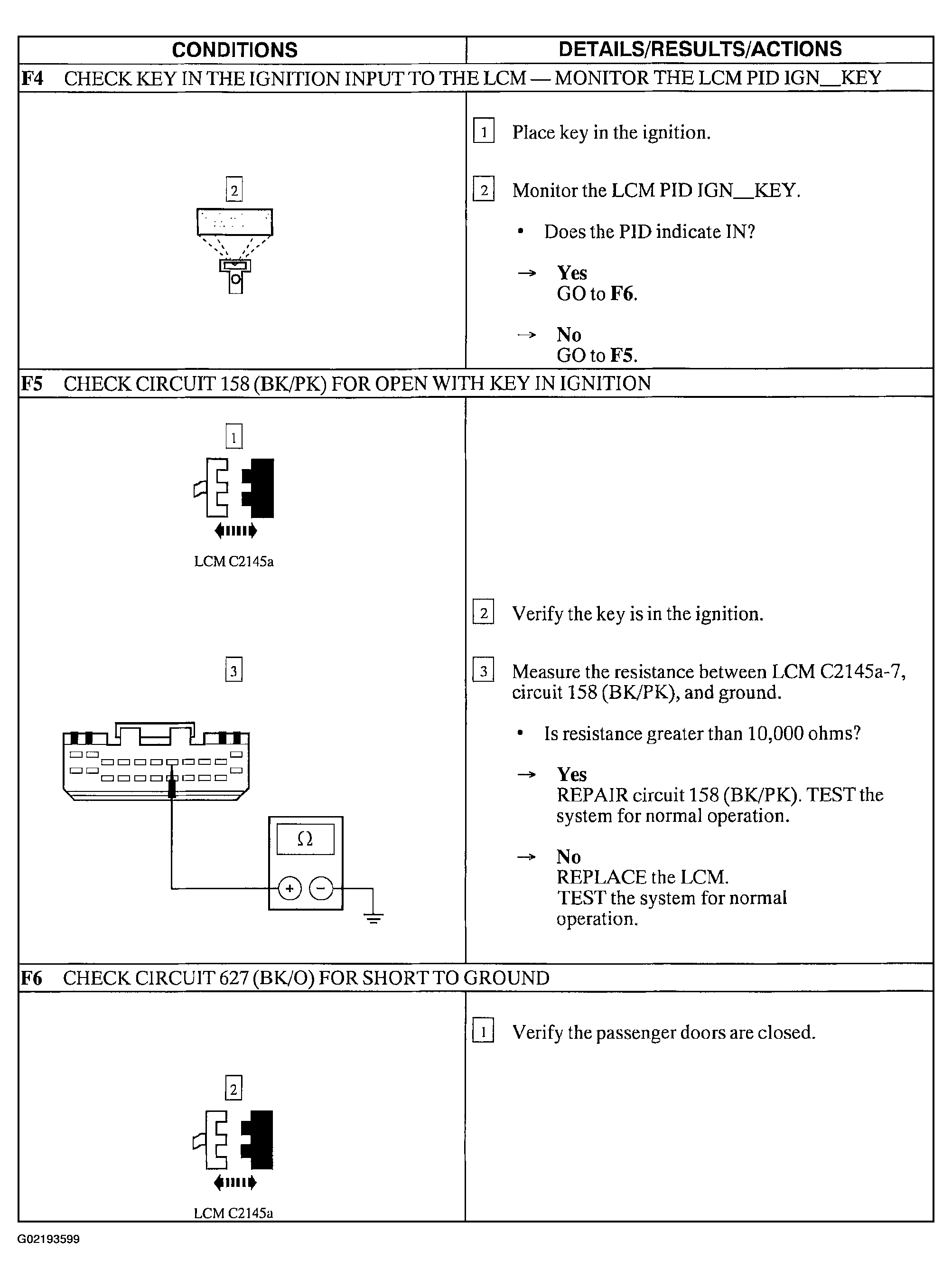

Fig 2: Pinpoint Test F: The Smart Lock Does Not Operate Properly (Steps F4-F6)

Courtesy of FORD MOTOR CO.

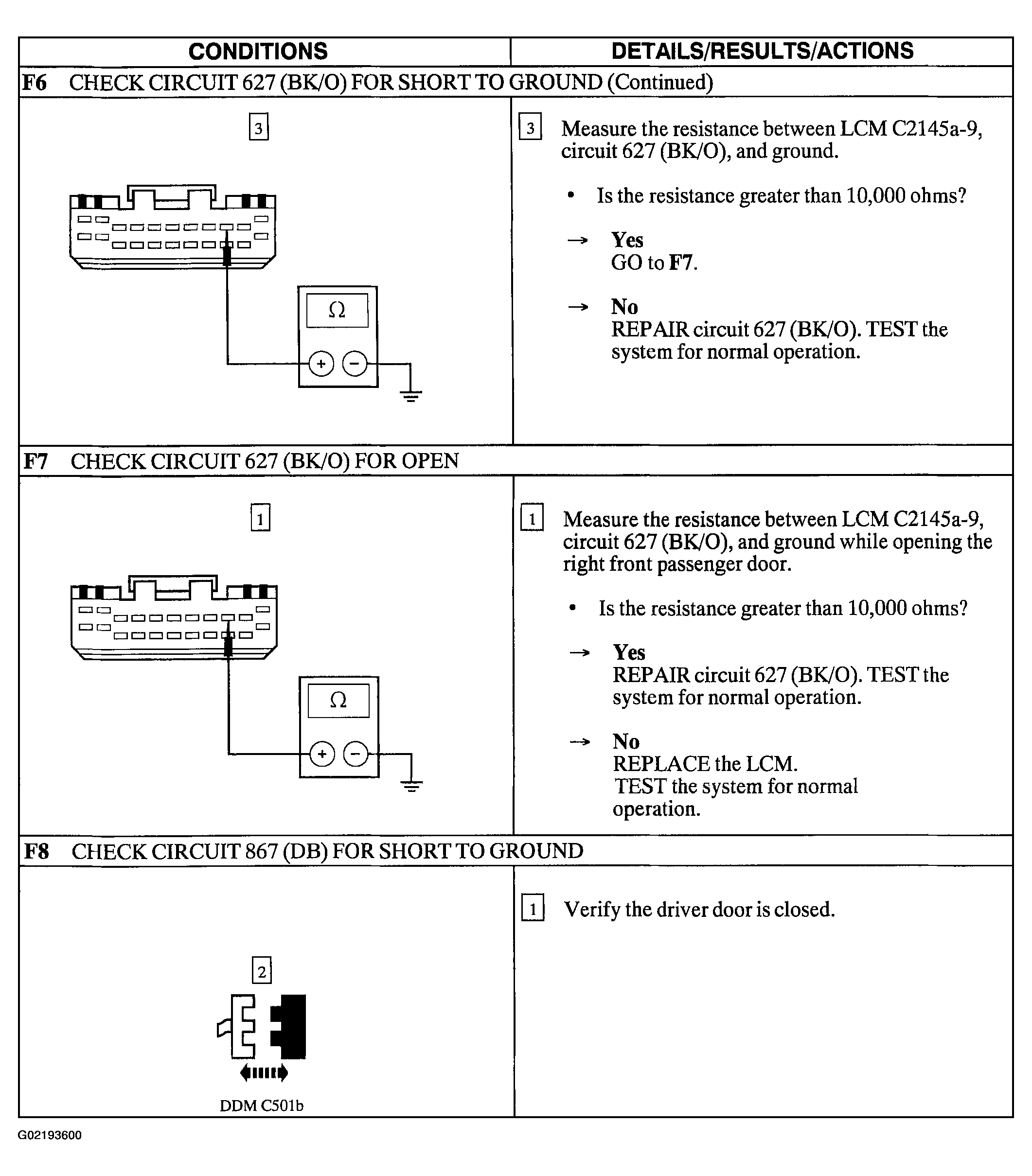

Fig 3: Pinpoint Test F: The Smart Lock Does Not Operate Properly (Steps F6 Cont.-F8)

Courtesy of FORD MOTOR CO.

Fig 4: Pinpoint Test F: The Smart Lock Does Not Operate Properly (Steps F8 Cont. & F9)
