Removal And Installation: Module: Removal

  1. Turn the ignition switch to the OFF position.
  2. Press the air suspension switch to the OFF position.
  3. Remove the luggage compartment trim panel
  4. Lower the module tray.

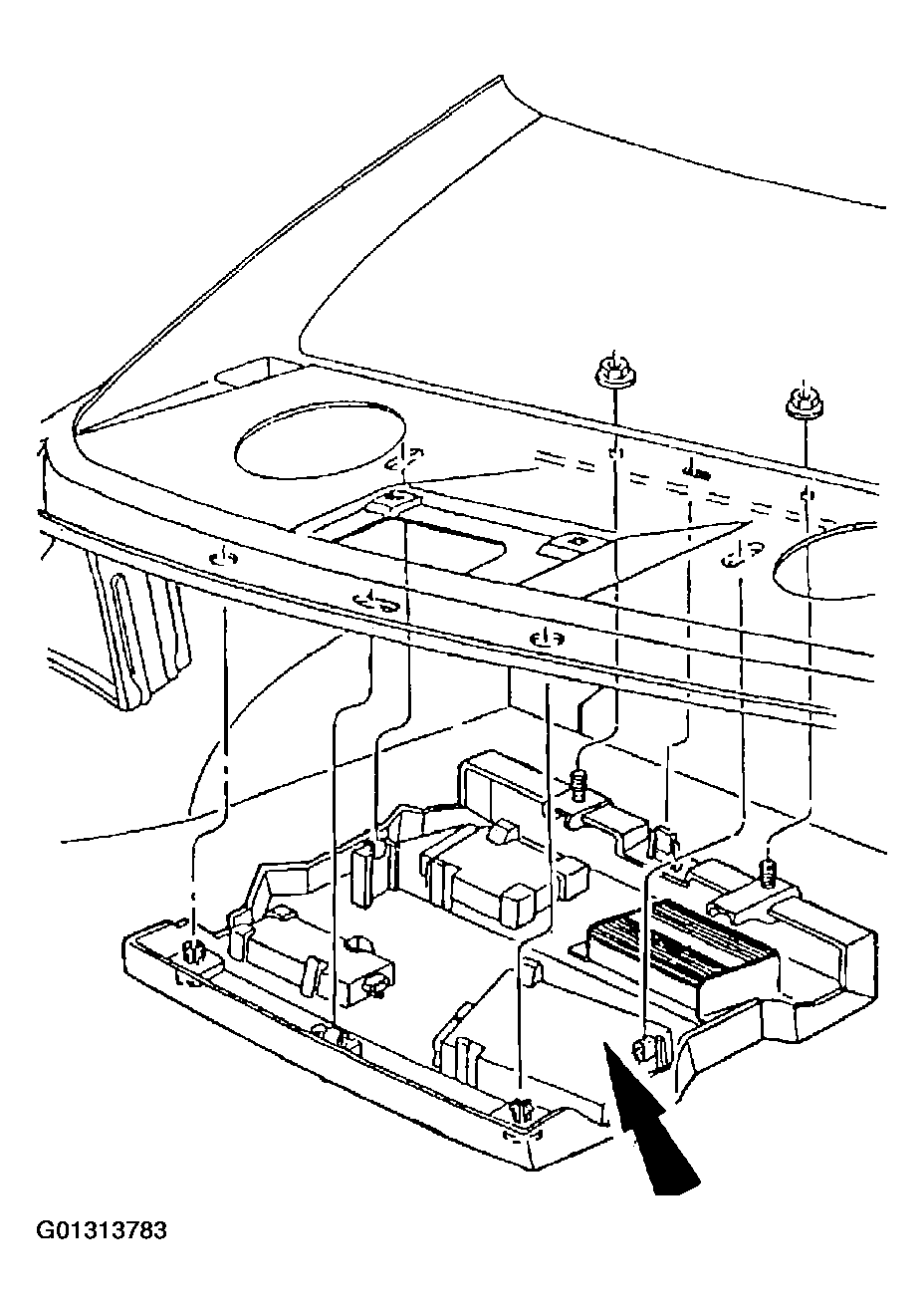

    Fig 1: Lowering Module Tray
    G01313783Courtesy of FORD MOTOR CO.
  5. Disconnect the wiring at the control module
  6. Unsnap the module from the tray clips.
