Ignition Switch Lock Cylinder-Non-Functional Lock Cylinder: Installation
- Install the bearing and the gear.
- Install the bearing retainer.

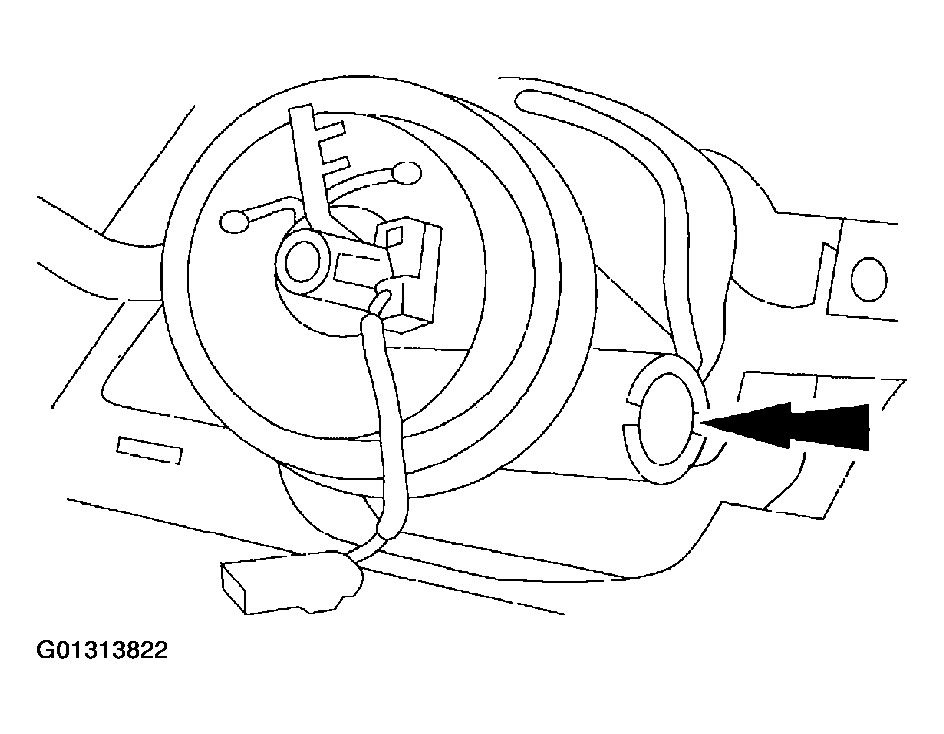

- Install a new lock cylinder into the column housing.
- Install the steering Wheel .
- Reactivate the supplemental restrain system. For additional information, refer to Supplemental Restraint System (SRS) Deactivation and Reactivation .
- Verify the ignition switch lock cylinder operation.
WARNING:
To avoid the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the steering wheel removal and installation procedure.
WARNING:
To avoid the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the supplemental restraint system reactivation procedure.
