Disassembled Views

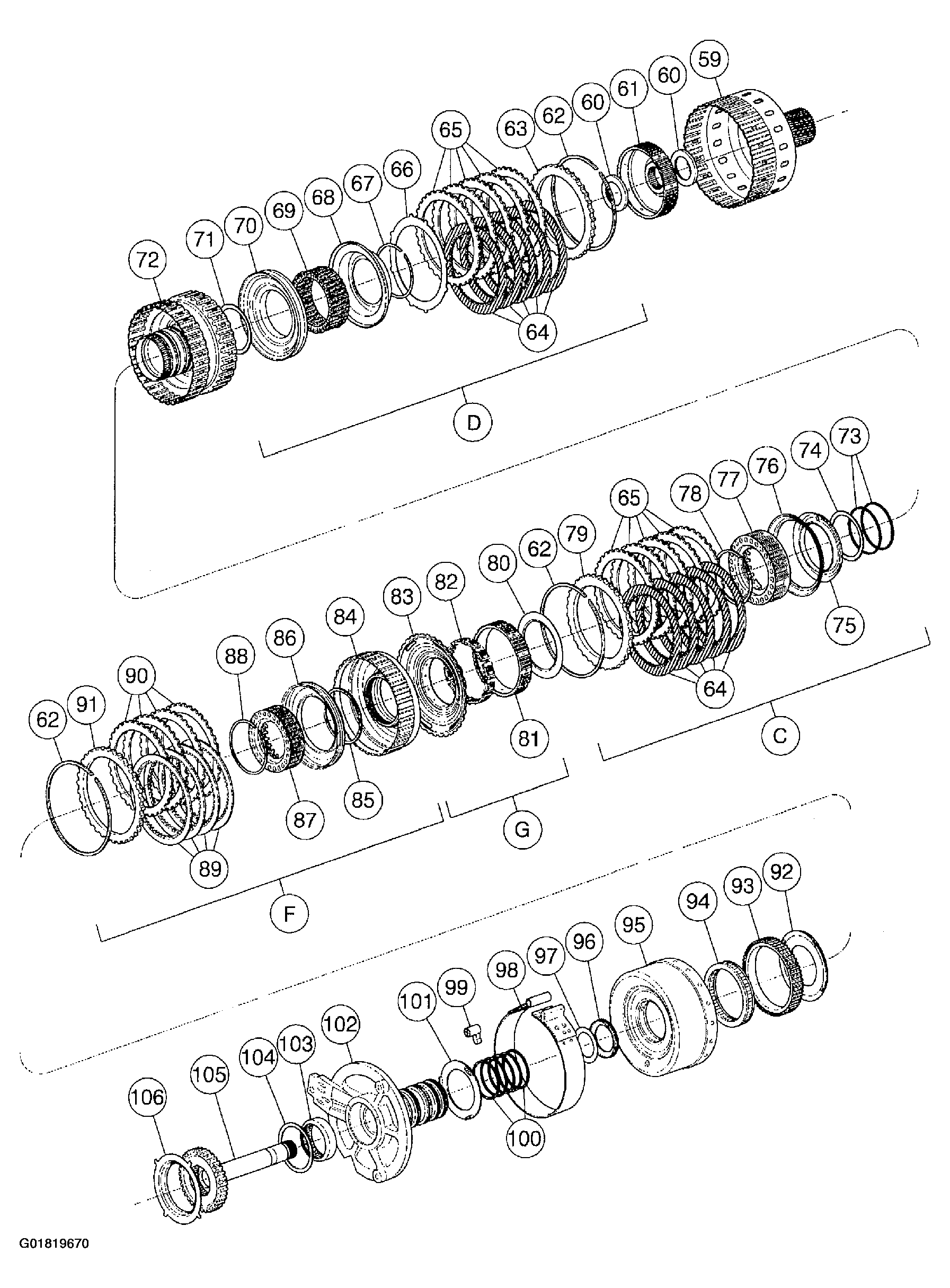

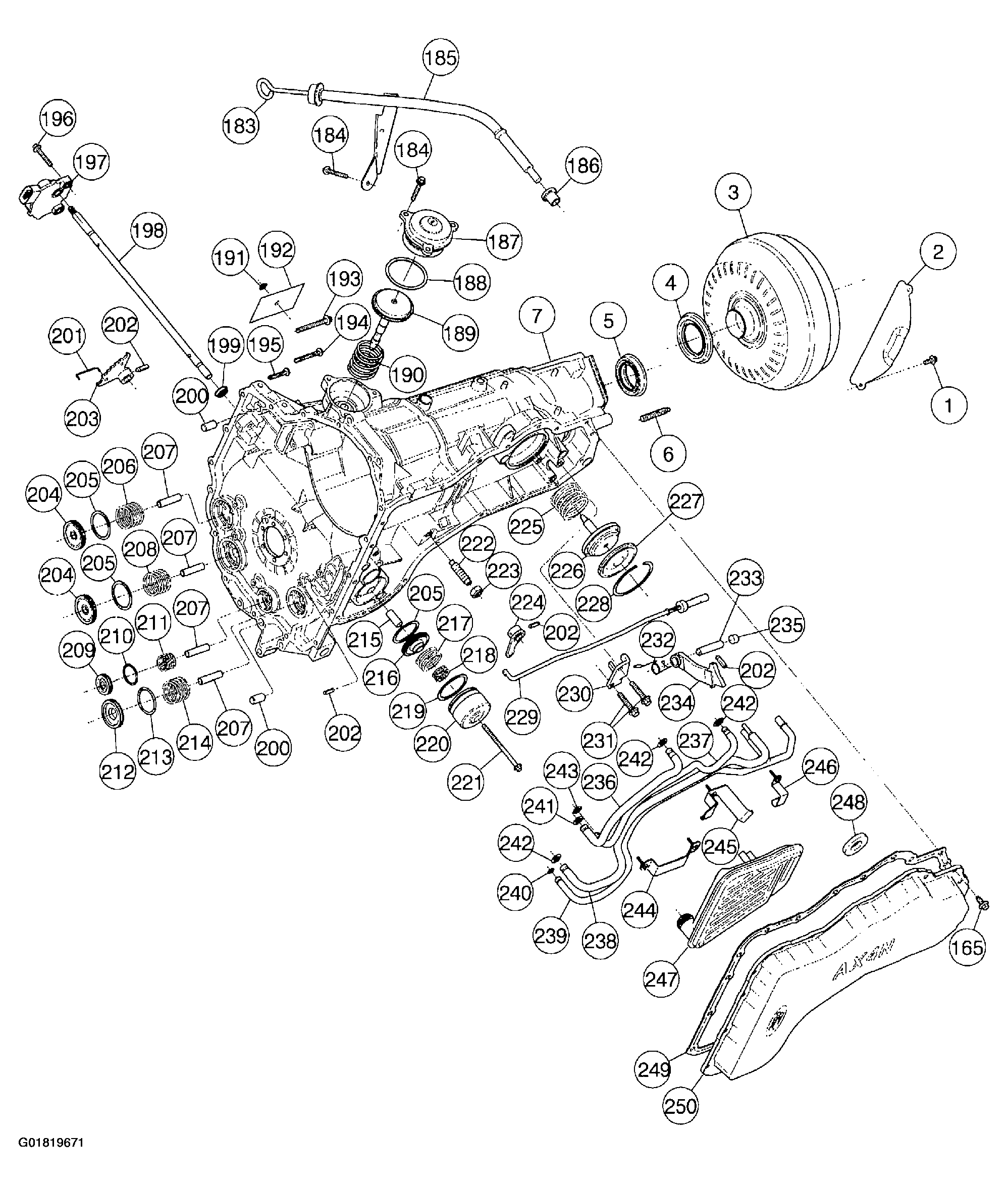

Fig 1: 4F50N Disassembled Views (1 Of 4)

Courtesy of FORD MOTOR CO.

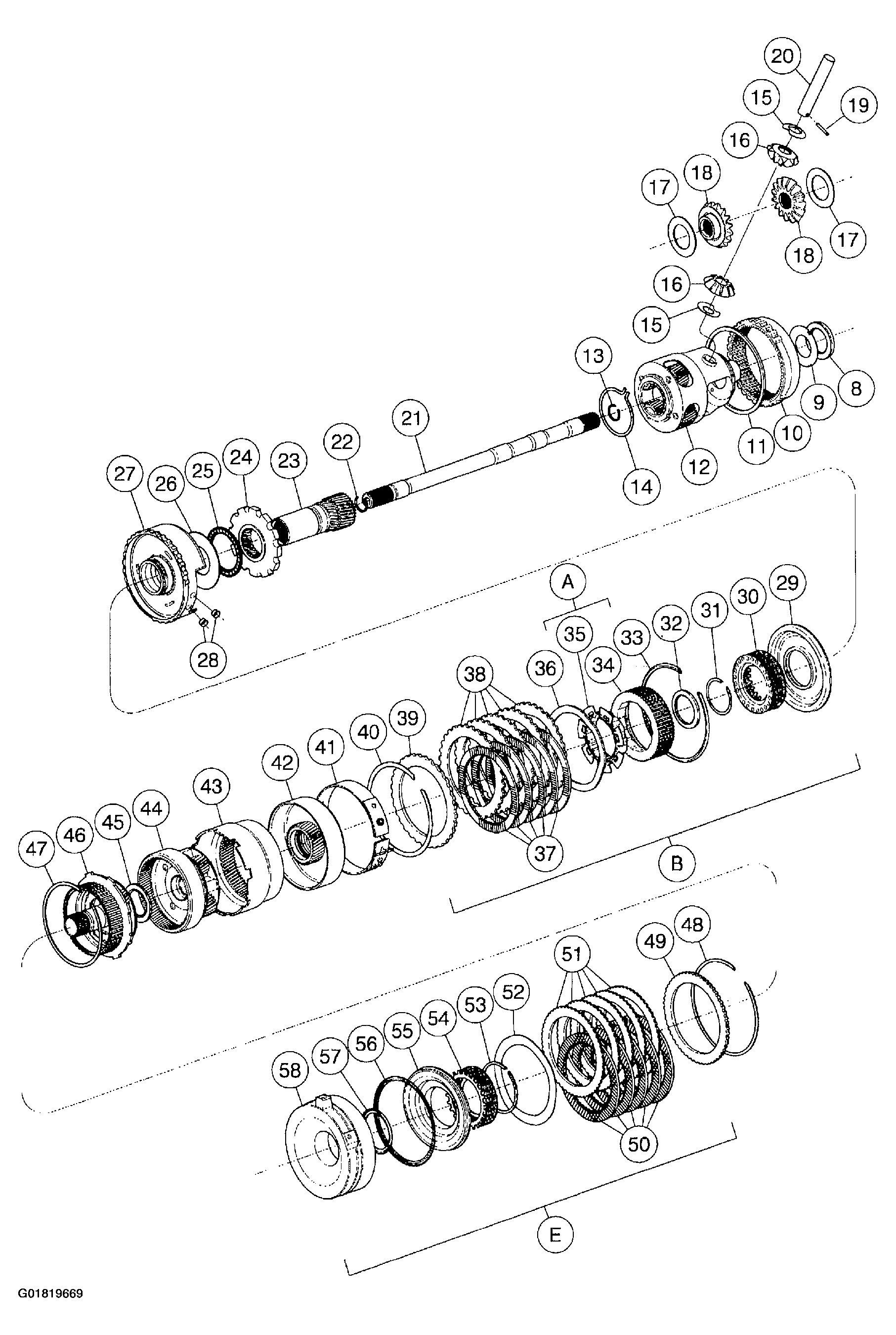

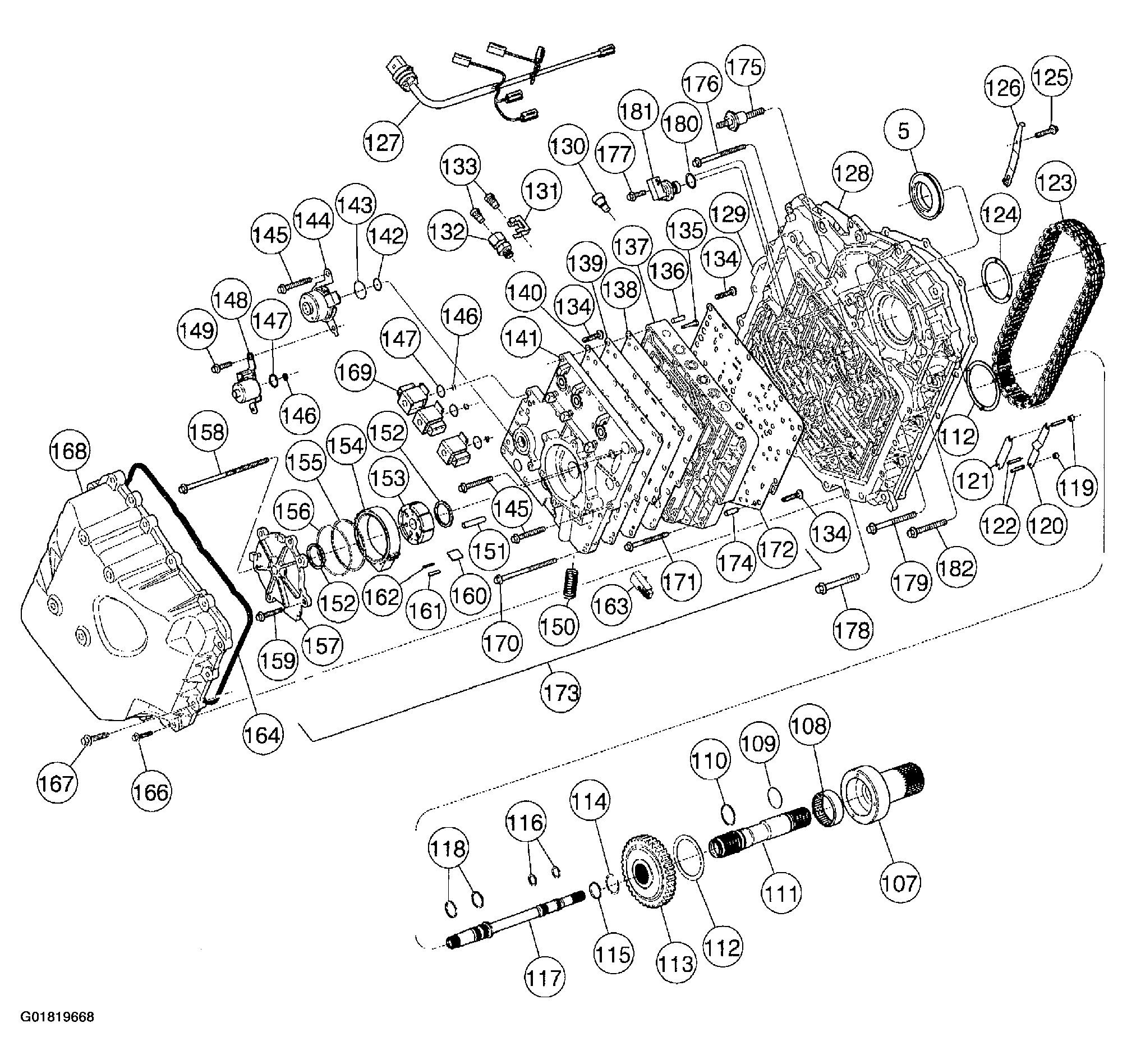

Fig 2: 4F50N Disassembled Views (2 Of 4)

Courtesy of FORD MOTOR CO.

Fig 3: 4F50N Disassembled Views (3 Of 4)

Courtesy of FORD MOTOR CO.

Fig 4: 4F50N Disassembled Views (4 Of 4)

Courtesy of FORD MOTOR CO.

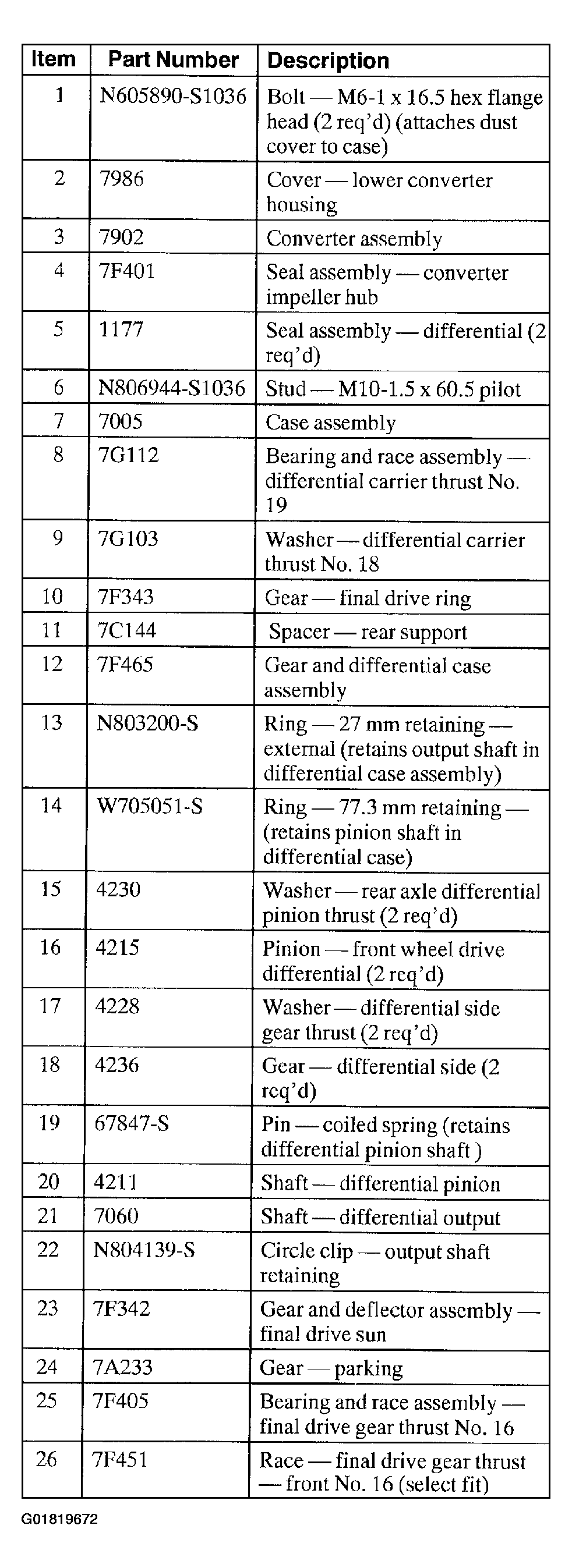

Fig 5: 4F50N Disassembled View Legend (Items 1-26)

Courtesy of FORD MOTOR CO.

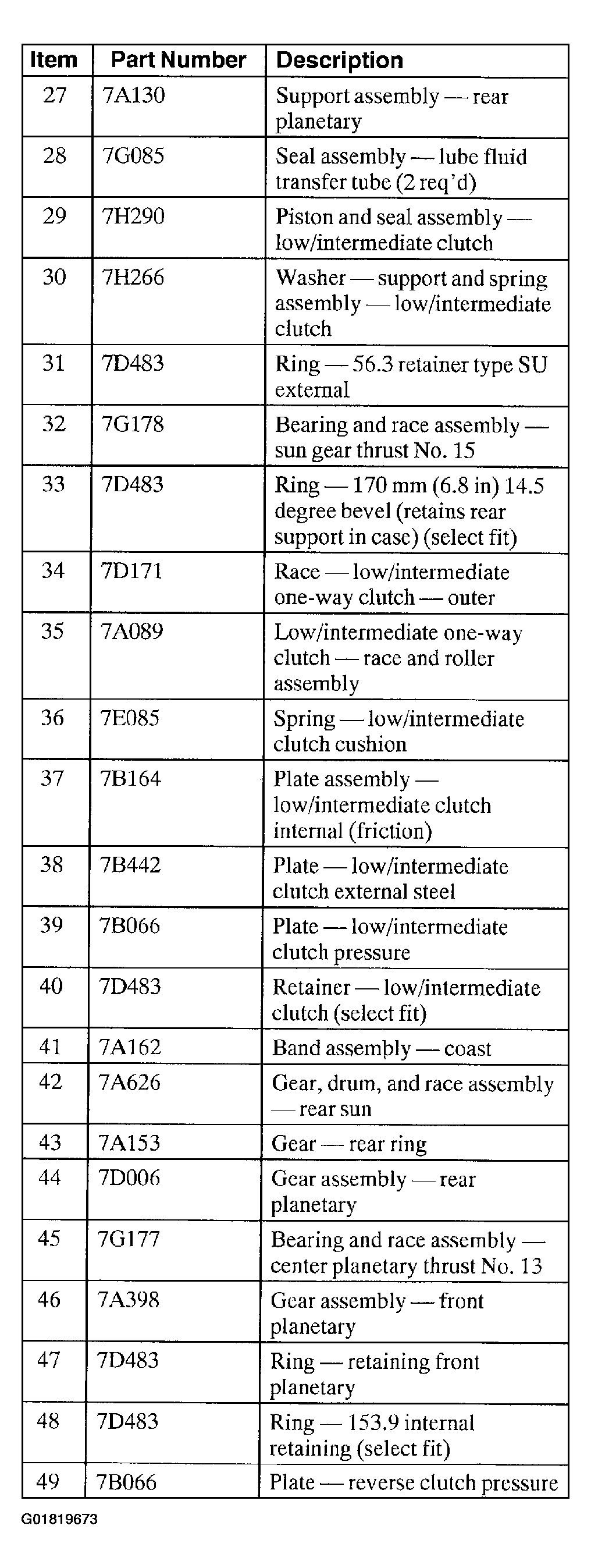

Fig 6: 4F50N Disassembled View Legend (Items 27-49)

Courtesy of FORD MOTOR CO.

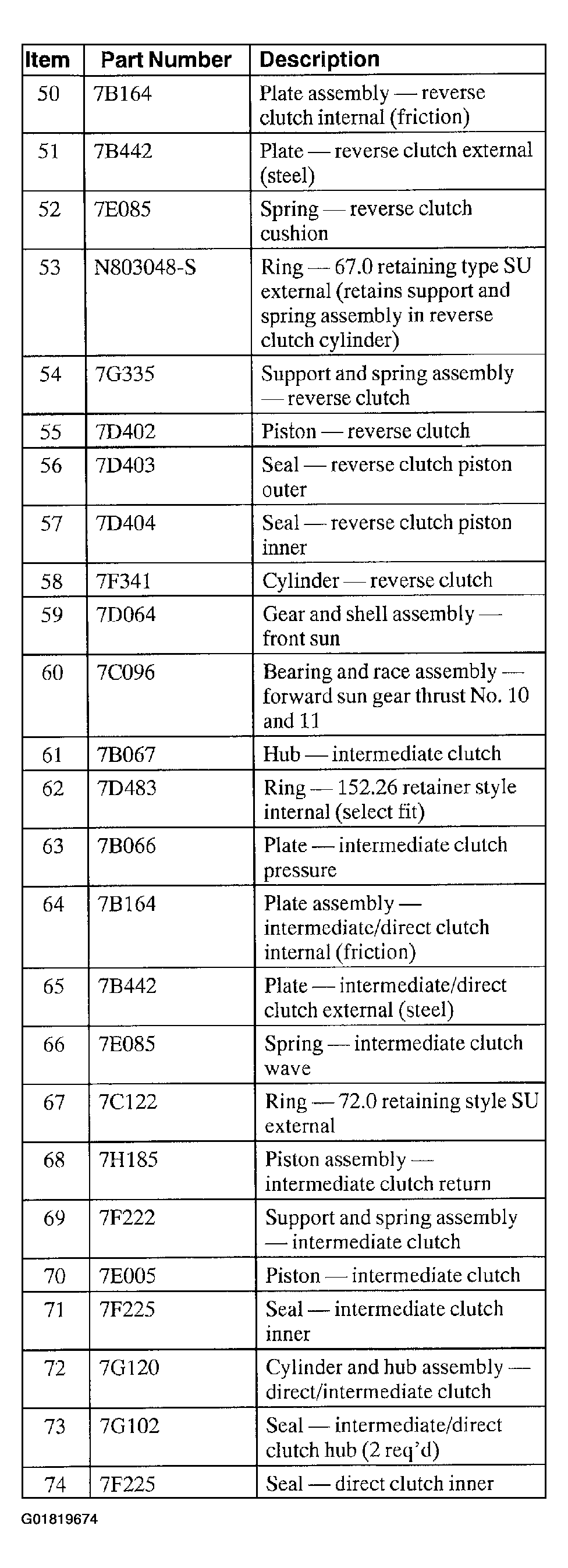

Fig 7: 4F50N Disassembled View Legend (Items 50-74)

Courtesy of FORD MOTOR CO.

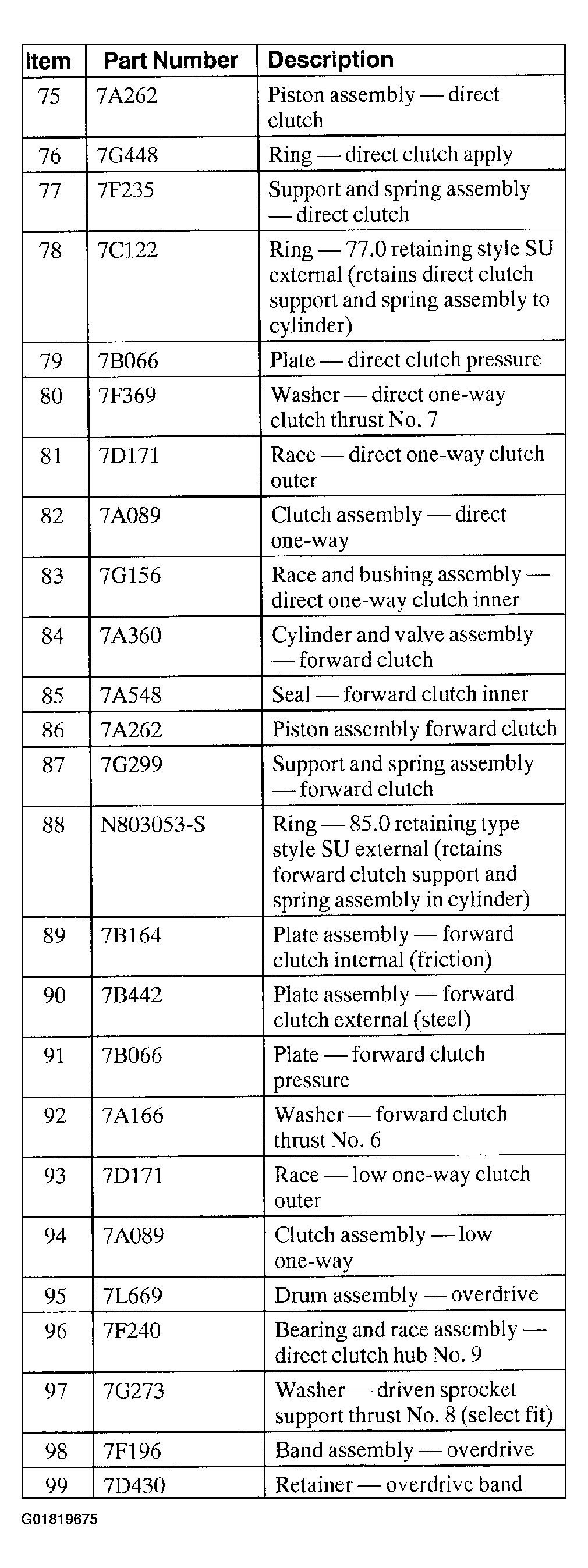

Fig 8: 4F50N Disassembled View Legend (Items 75-99)

Courtesy of FORD MOTOR CO.

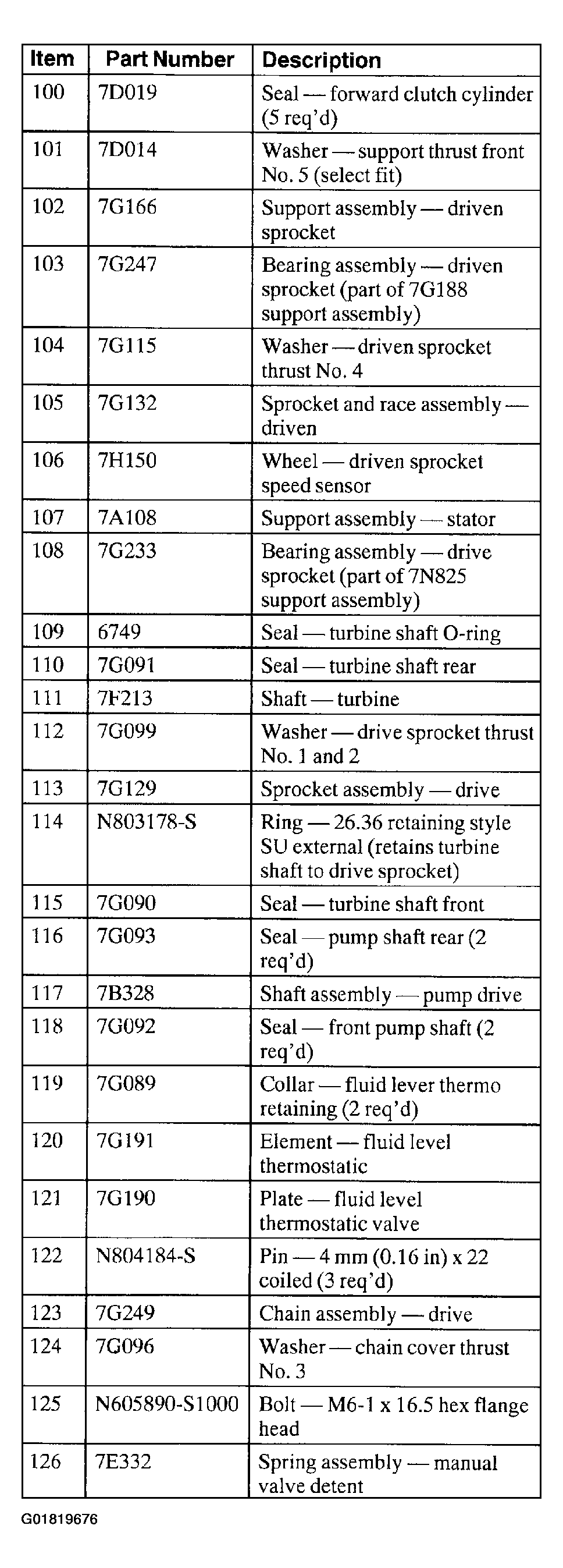

Fig 9: 4F50N Disassembled View Legend (Items 100-126)

Courtesy of FORD MOTOR CO.

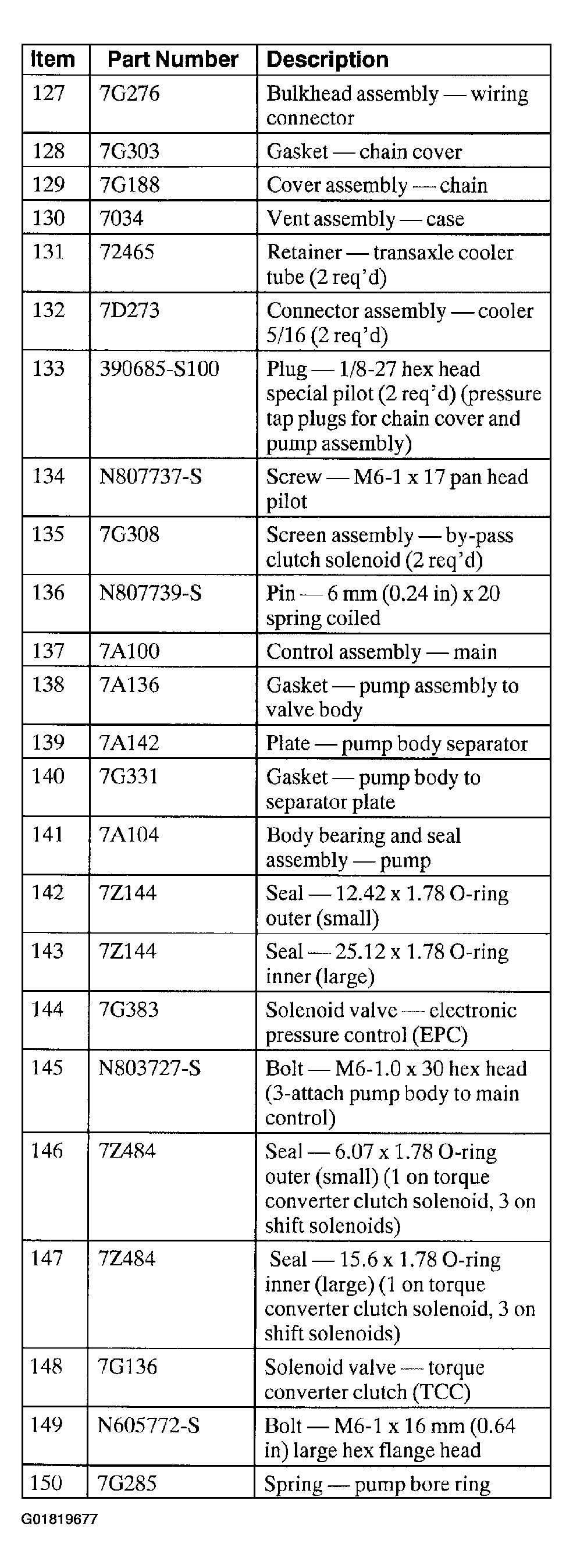

Fig 10: 4F50N Disassembled View Legend (Items 127-150)

Courtesy of FORD MOTOR CO.

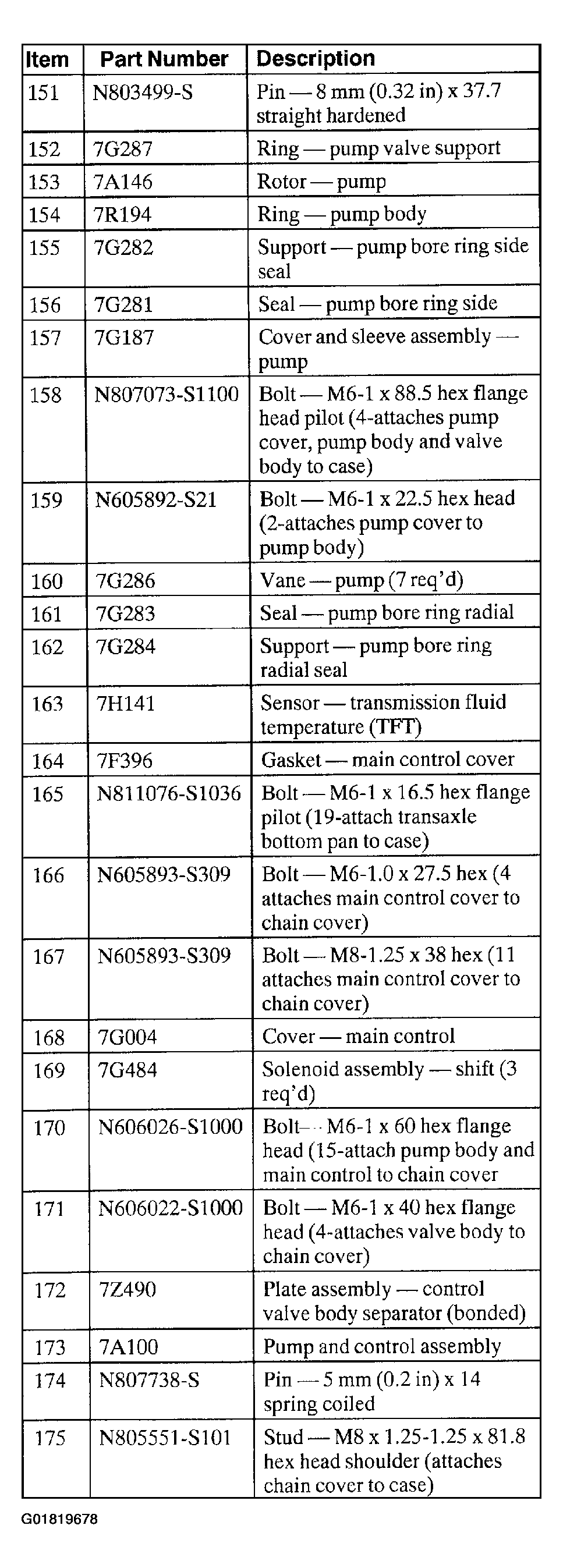

Fig 11: 4F50N Disassembled View Legend (Items 151-175)

Courtesy of FORD MOTOR CO.

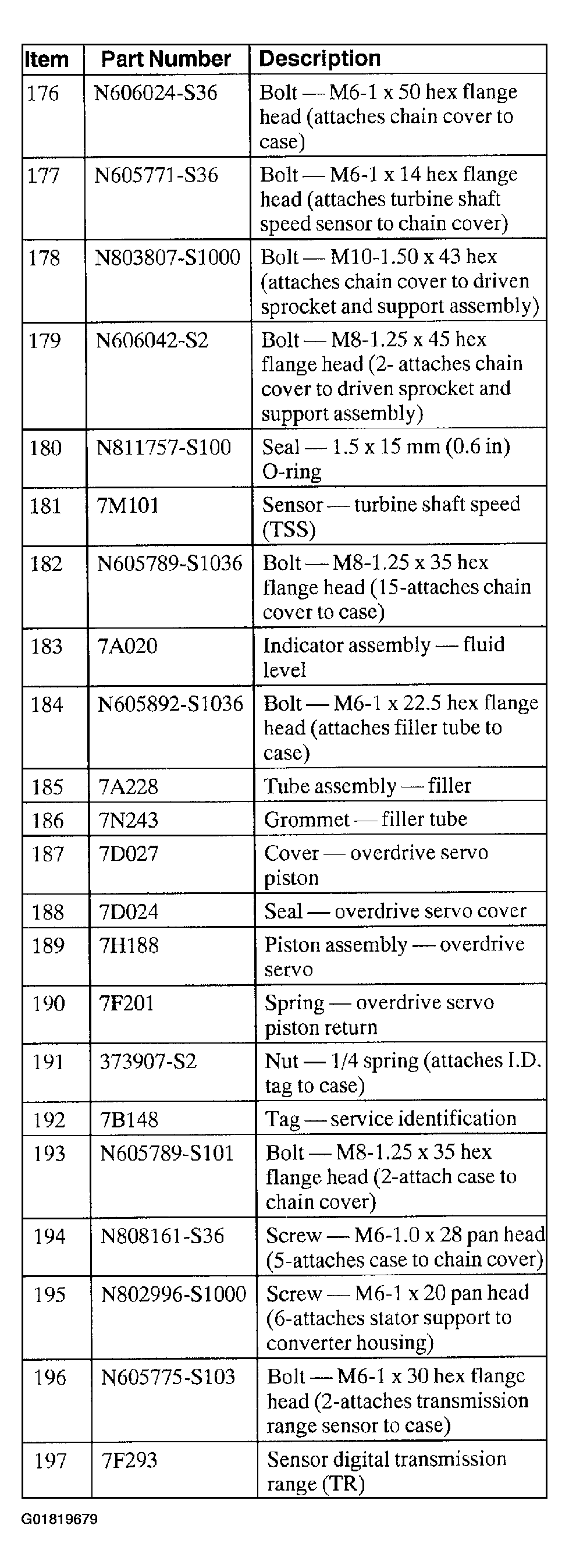

Fig 12: 4F50N Disassembled View Legend (Items 176-197)

Courtesy of FORD MOTOR CO.

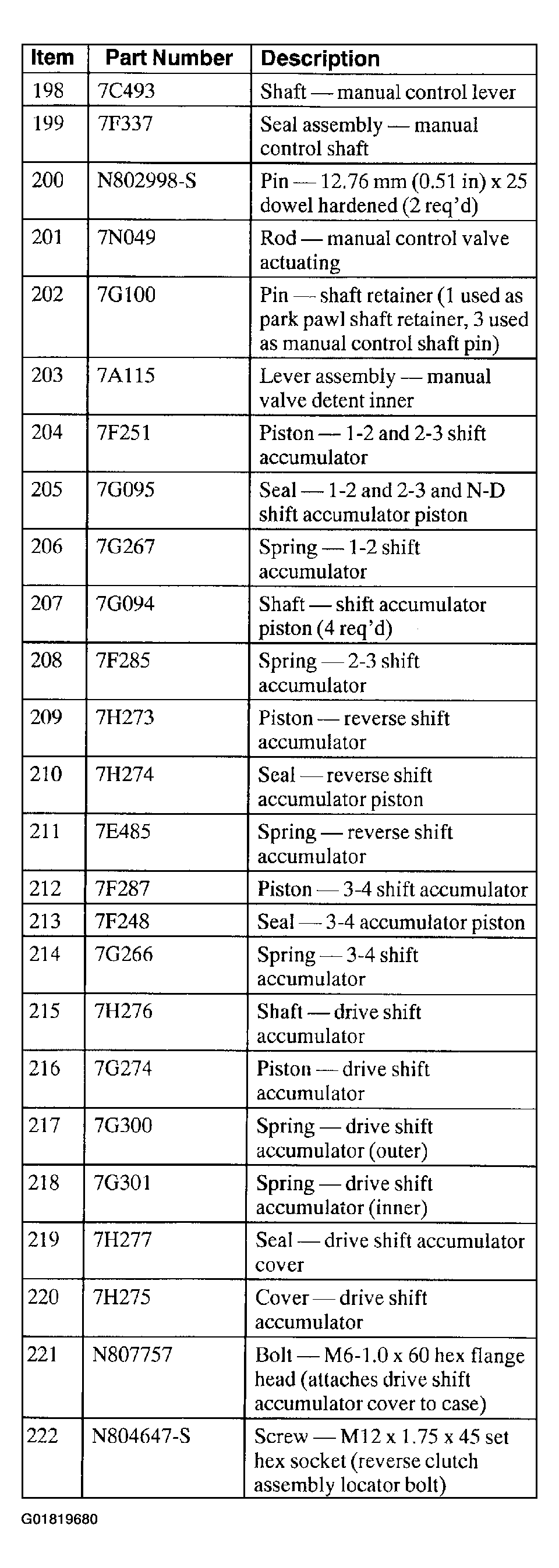

Fig 13: 4F50N Disassembled View Legend (Items 198-222)

Courtesy of FORD MOTOR CO.

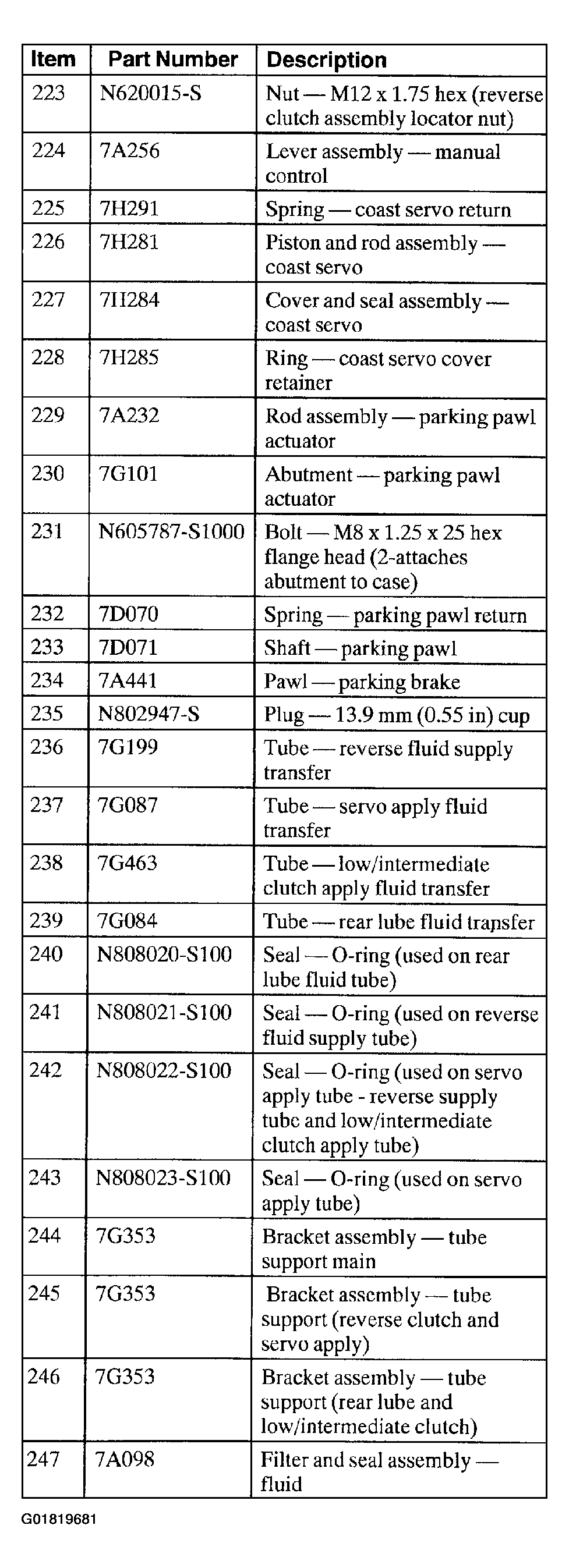

Fig 14: 4F50N Disassembled View Legend (Items 223-247)

Courtesy of FORD MOTOR CO.

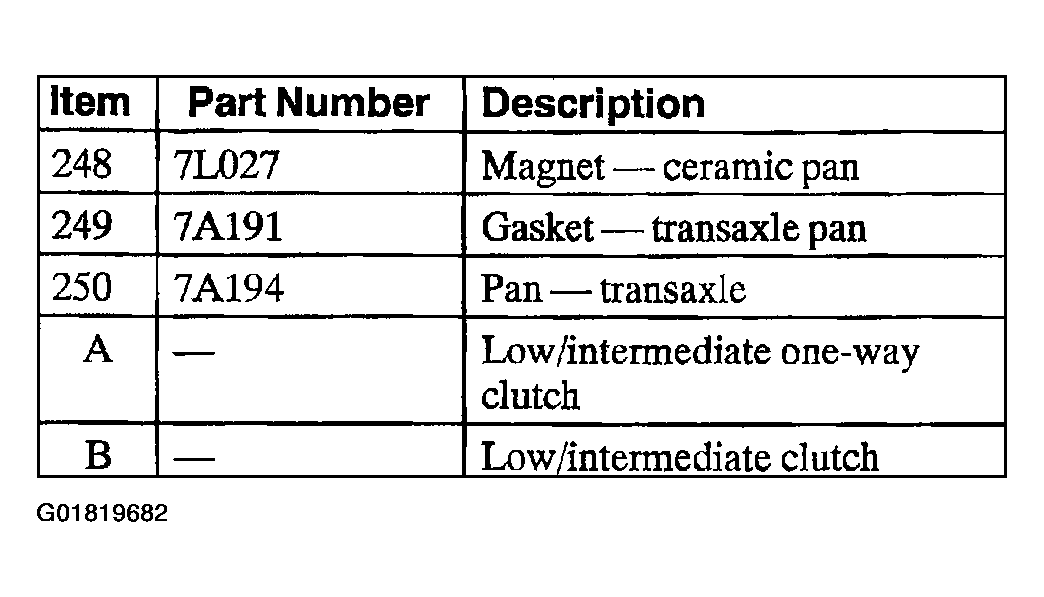

Fig 15: 4F50N Disassembled View Legend (Items 248-250 & Items A & B)

Courtesy of FORD MOTOR CO.

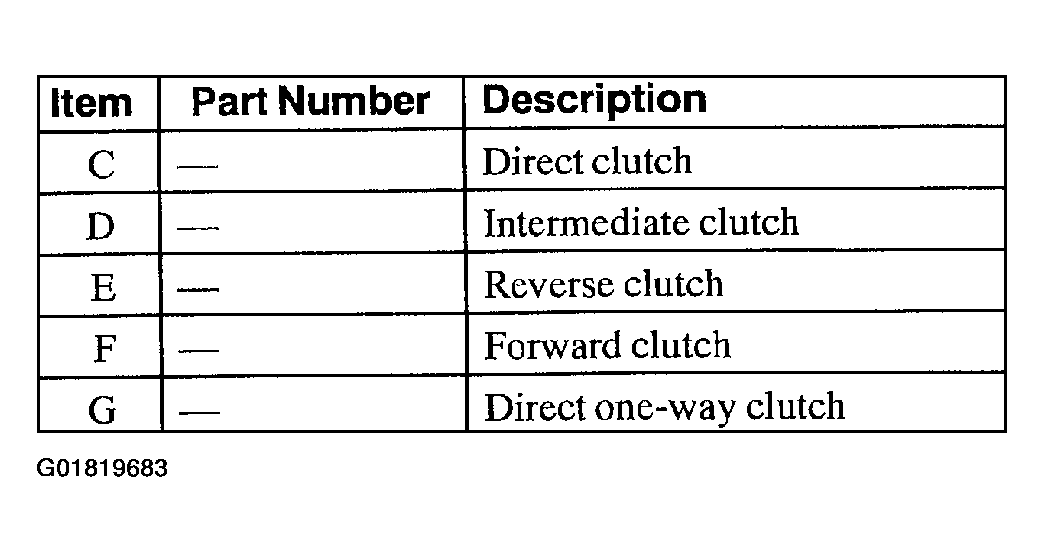

Fig 16: 4F50N Disassembled View Legend (Items C-G)

Courtesy of FORD MOTOR CO.
