Wheel Alignment Angles: Toe

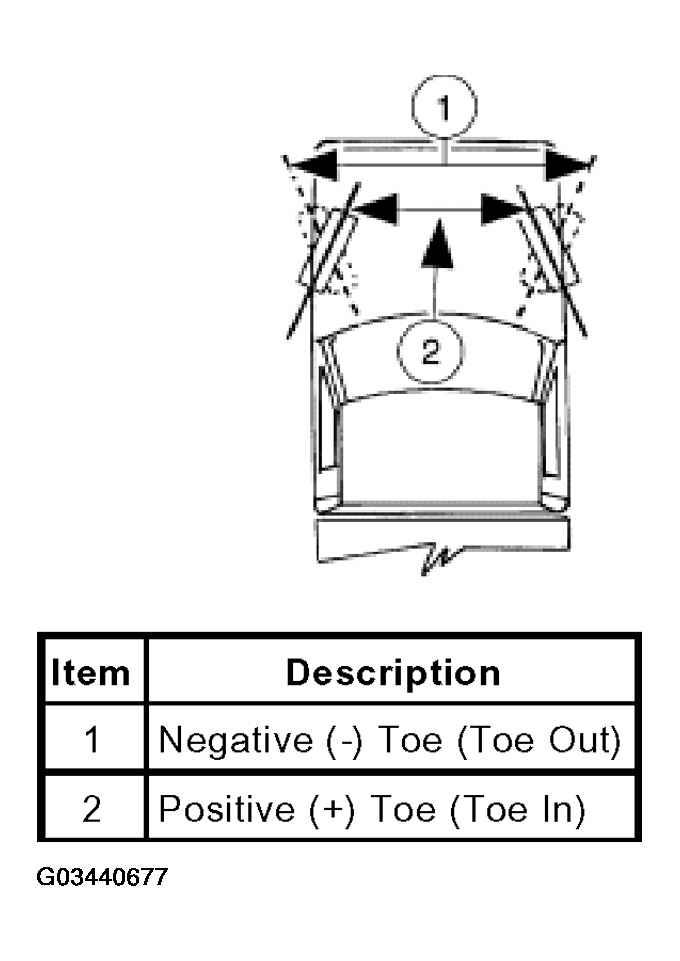

Fig 1: Identifying Toe
G03440677Courtesy of FORD MOTOR CO.

Toe is a measurement of how much the front of the wheels are turned in or out from the straight-ahead position. When the wheels are turned in, toe is positive (+) (toe in). When the wheels are turned out, toe is negative (-) (toe out). Toe is measured in degrees, from side to side and totaled.

Toe should only be checked and adjusted after the camber and caster have been set to the proper specifications.
