Output Shaft Speed Sensor -Rear: Installation

WARNING: This page is about a different variant/trim than selected.
    CAUTION: Make sure the sensor seats flat against the boss.

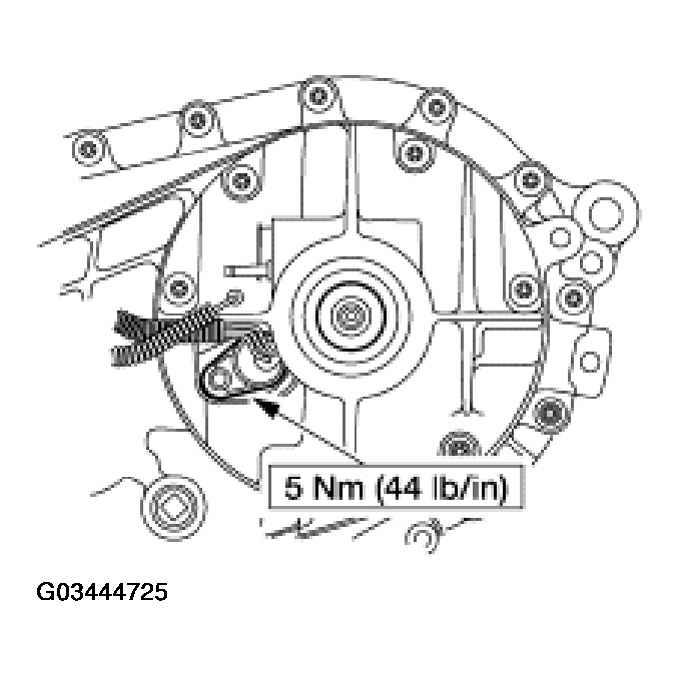

    Fig 1: Installing Sensor Bolts
    G03444725Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
