Output Shaft Speed Sensor -Rear: Removal

WARNING: This page is about a different variant/trim than selected.
WARNING: The electrical power supply to the air suspension system must be shut off prior to hoisting, jacking or towing an air suspension vehicle. This can be accomplished by turning off the air suspension switch located in the rear jack storage area. Failure to do so can result in unexpected inflation or deflation of the air spring, which can result in shifting of the vehicle during these operations.
  1. Raise and support the vehicle.
  2. Disconnect the electrical connector.

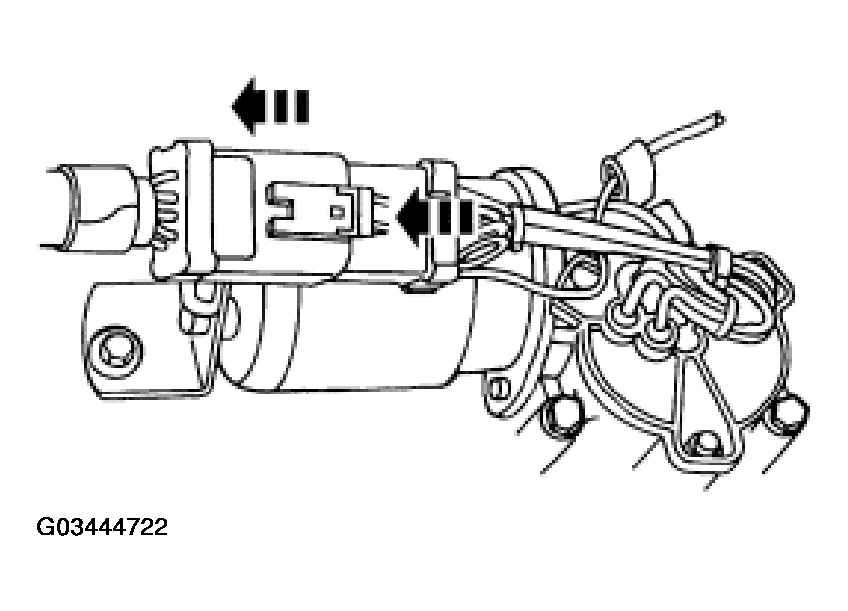

    Fig 1: Disconnecting Electrical Connector
    G03444722Courtesy of FORD MOTOR CO.
  3. Remove the wire connector spacer and the rear output shaft speed sensor wire pins from the electrical connector.
    • Use the proper electrical connector pin remover.

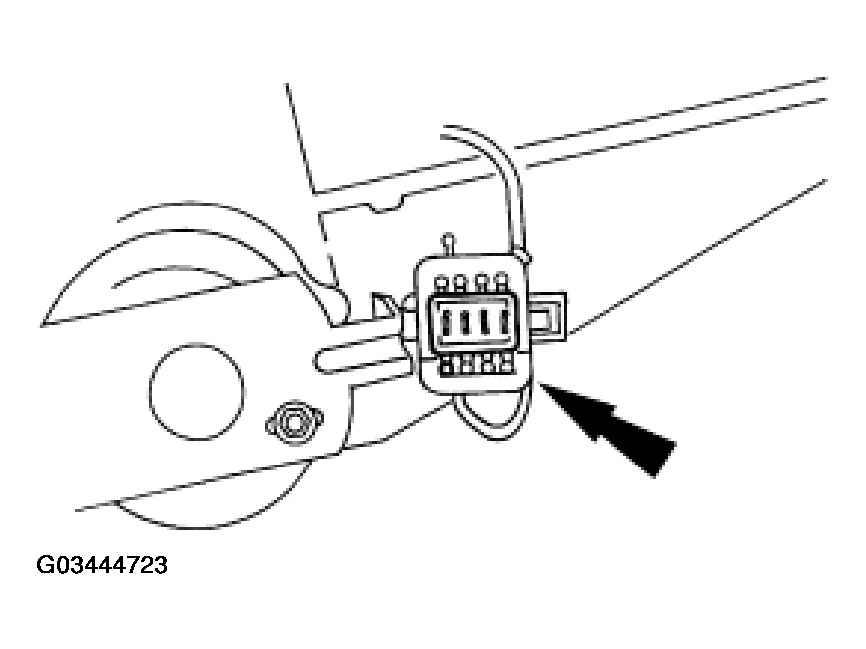

    Fig 2: Removing Wire Connector Spacer And Rear Output Shaft Speed Sensor Wire Pins
    G03444723Courtesy of FORD MOTOR CO.
  4. Remove the bolt, and remove the sensor.

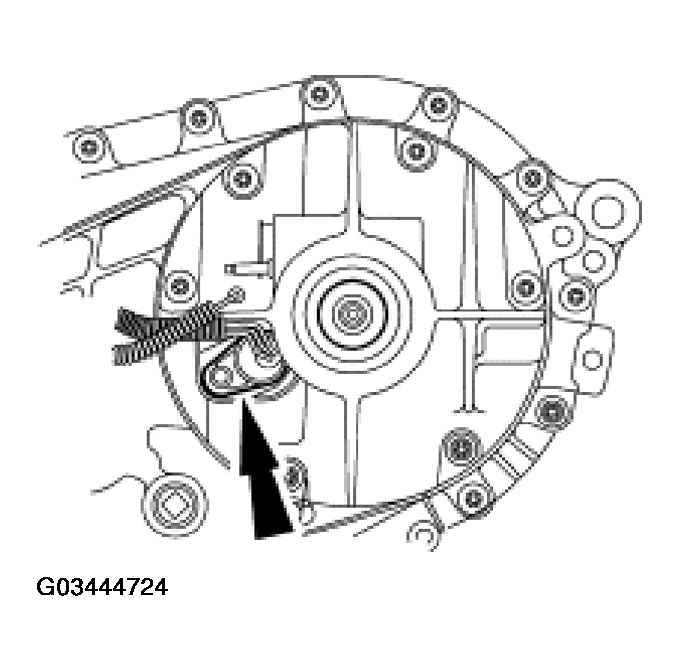

    Fig 3: Removing Sensor Bolts
    G03444724Courtesy of FORD MOTOR CO.
