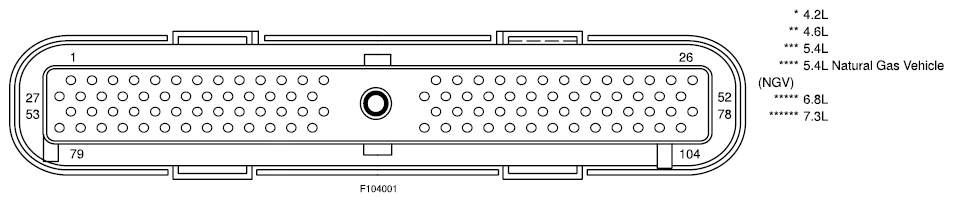

| 1 |
1025 (OG/YE) |
Coil On Plug (COP) 6 (12029), control |
| *
315 (VT/OG) |
Shift solenoid B |
| ******
... |
not used |
| 2 |
658 (PK/LG) |
Malfunction Indicator Lamp (MIL), control |
| 3 |
570 (BK/WH) |
Ground |
| *
1144 (YE/BK) |
Digital Transmission Range (DTR) sensor, TR1 |
| ******
3996 (RD/YE) |
without memory, to, Manifold intake air heater relay |
| 4 |
828 (VT/LB) |
Voltage supplied at all times (overload protected) |
| *
... |
not used |
| **
... |
not used |
| ******
284 (OG) |
not used |
| 5 |
... |
not used |
| ******
162 (LG/RD) |
Parking brake switch (15A851) |
| 6 |
237 (OG/YE) |
Window lockout A |
| *
... |
not used |
| 7 |
... |
not used |
| 8 |
... |
not used |
| *
1022 (DB/YE) |
Intake Manifold Runner Control (IMRC) module, monitor |
| *****
1278 (WH/VT) |
output, to, Glow plug relay |
| 9 |
29 (YE/WH) |
Fuel pump/fuel gauge sender, Low fuel indicator |
| *
... |
not used |
| ****
- |
not used |
| ******
1279 (WH) |
Fuel pump/fuel gauge sender |
| 10 |
... |
not used |
| ******
308 (RD/OG) |
Idle validation switch, control |
| 11 |
315 (VT/OG) |
Shift solenoid B |
| *
... |
not used |
| 12 |
911 (WH/LG) |
Transmission Control Indicator Lamp (TCIL) |
| *
29 (YE/WH) |
Fuel pump/fuel gauge sender |
| 13 |
107 (VT) |
Module programming signal |
| 14 |
781 (OG/LB) |
to 4L switch |
| *
... |
not used |
| **
... |
not used |
| ****
... |
not used |
| 15 |
915 (PK/LB) |
SCP Bus... |
| 16 |
914 (TN/OG) |
SCP Bus + |
| 17 |
... |
not used |
| ******
1012 (OG/BK) |
Digital Transmission Range (DTR) sensor (7F293), Digital Transmission Range (DTR) sensor |
| 18 |
... |
not used |
| 19 |
... |
not used |
| ******
648 (WH/PK) |
signal |
| 20 |
924 (BN/OG) |
Powertrain Control Module (PCM) (12A650), Coasting clutch solenoid |
| *
- |
not used |
| 21 |
349 (DB) |
Crankshaft position sensor (6C315) - |
| ******
795 (DG) |
Camshaft position sensor (6B288), to Powertrain Control Module (PCM) (12A650) |
| 22 |
350 (GY) |
Crankshaft position sensor (6C315) + |
| ******
- |
not used |
| 23 |
- |
not used |
| *****
570 (BK/WH) |
Ground |
| 24 |
570 (BK/WH) |
Ground |
| ******
837 (YE/BK) |
Accelerator pedal position sensor, to, Powertrain Control Module (PCM) (12A650) |
| 25 |
875 (BK/LB) |
Ground |
| 26 |
1024 (LG/WH) |
Coil On Plug (COP) 1 (12029), control |
| *
526 (PB/LG) |
PCM, to, Ignition coil (12029) |
| ******
- |
not used |
| 27 |
1021 (LG/YE) |
Coil On Plug (COP) 5 (12029), control |
| *****
1142 (WH/RD) |
Coil On Plug (COP) 10, control |
| 237 (OG/YE) |
Transmission Control Indicator Lamp (TCIL) |
| ******
- |
not used |
| 28 |
- |
not used |
| ******
911 (WH/LG) |
Transmission Control Indicator Lamp (TCIL) |
| ******
643 (RD) |
Indicator, Water-in-fuel sensor |
| 29 |
224 (TN/WH) |
PCM, to transmission overdrive cancel switch |
| 30 |
- |
not used |
| ******
553 (VT/LB) |
Exhaust Back Pressure (EBP) sensor, to, Powertrain Control Module (PCM) (12A650) |
| 31 |
- |
not used |
| ******
810 (RD/LG) |
Brake pedal position switch (13480), input |
| 32 |
311 (DG/PK) |
Knock sensor (12A699)- |
| ****
- |
not used |
| ******
- |
not used |
| 33 |
- |
not used |
| *****
676 (PK/OG) |
Vehicle Speed Sensor (VSS) - |
| ******
676 (PK/OG) |
Vehicle Speed Sensor (VSS) - |
| 34 |
1144 (YE/BK) |
Digital Transmission Range (DTR) sensor, TR1 |
| *
- |
not used |
| ******
1277 (WH/LG) |
not used |
| 35 |
392 (RD/LG) |
Heated Oxygen Sensor (HO2S) #12 (9G444), input |
| ****
- |
not used |
| ******
1183 (WH/YE) |
Generator, Power |
| 36 |
968 (TN/LB) |
Mass Air Flow (MAF) sensor (12B579), signal, return |
| ******
1280 (GY/RD) |
Fuel heater, to, Powertrain Control Module (PCM) (12A650) |
| 37 |
923 (OG/BK) |
Transmission Fluid Temperature (TFT) sensor, input |
| 38 |
- |
not used |
| ******
354 (LG/RD) |
Engine Oil Temperature (EOT) sensor, input |
| 39 |
743 (GY) |
Intake Air Temperature (IAT) sensor (12A697), input |
| 40 |
238 (PG/YE) |
Fuel pump, monitor |
| ******
787 (PK/BK) |
Fuel pump, monitor |
| 41 |
347 (BK/YE) |
A/C clutch relay, switched output |
| **
439 (TN/LG) |
A/C pressure switch, signal |
| 42 |
- |
not used |
| *
1023 (DB/LG) |
Intake Manifold Runner Control (IMRC) module, to, Powertrain Control Module (PCM) (12A650) |
| ******
318 (GY/RD) |
Exhaust Pressure Regulator (EPR), to, Powertrain Control Module (PCM) (12A650) |
| 43 |
- |
not used |
| 44 |
- |
not used |
| 45 |
1105 (YE/LB) |
Cylinder head temperature sensor, to, Temperature, indicator |
| ******
- |
not used |
| 46 |
- |
not used |
| **
367 (BN) |
Intake Manifold Runner Control (IMRC) module |
| *****
679 (GY/BK) |
Vehicle Speed Sensor (VSS) + |
| 47 |
360 (BN/PK) |
EGR Vacuum Regulator (EVR), control |
| ****
- |
not used |
| ******
- |
not used |
| 48 |
648 (WH/PK) |
Tachometer, signal |
| ******
818 (GY/WH) |
Injector Driver Module (IDM) power relay, to, Powertrain Control Module (PCM) (12A650) |
| 49 |
1145 (LB/BK) |
Digital Transmission Range (DTR) sensor, TR2 |
| ******
146 (WH/PK) |
Digital Transmission Range (DTR) sensor, TR2 |
| 50 |
1146 (LG/RD) |
Digital Transmission Range (DTR) sensor, to, Powertrain Control Module (PCM) (12A650) |
| ******
145 (GY/BK) |
Shift solenoid |
| 51 |
570 (BK/WH) |
Ground |
| 52 |
1028 (WH/PK) |
Coil On Plug (COP) 3 (12029), control |
| *****
1021 (LG/YE) |
Coil On Plug (COP) 5 (12029), control |
| *
527 (RD/LB) |
PCM, to, Ignition coil (12029) |
| ******
- |
not used |
| 53 |
1030 (DG/VT) |
Coil On Plug (COP) 4 (12029), control |
| *****
1027 (PK/LB) |
Coil On Plug (COP) 7 (12029), control |
| *
- |
not used |
| ******
- |
not used |
| 54 |
480 (VT/YE) |
Torque Converter Clutch (TCC) solenoid |
| 55 |
37 (YE) |
Voltage supplied at all times (overload protected) |
| 56 |
191 (LG/BK) |
Powertrain Control Module (PCM) (12A650), EVAP canister purge valve |
| ***
- |
not used |
| ******
- |
not used |
| 57 |
310 (YE/RD) |
Knock sensor (12A699)- |
| ****
- |
not used |
| ******
- |
not used |
| 58 |
- |
not used |
| ******
679 (GY/BK) |
Vehicle Speed Sensor (VSS) + |
| 59 |
970 (DG/WH) |
Turbine Shaft Speed (TSS) sensor |
| *
& **
- |
not used |
| ******
- |
not used |
| 60 |
74 (GY/LB) |
Heated Oxygen Sensor (HO2S) #11 (9F472), input |
| ******
1185 (YE) |
Generator, Power |
| 61 |
- |
not used |
| *
& **
393 (VT/LG) |
Heated Oxygen Sensor (HO2S) #22 (9G444), input |
| ******
151 (LB/BK) |
Speed control switch, input |
| 62 |
791 (RD/PK) |
Fuel tank pressure transducer sensor (9C968) |
| ****
1164 (LB) |
Engine controls, Gas temperature sensor (CNG), Temperature |
| ******
- |
not used |
| 63 |
- |
not used |
| ****
141 (RD/PK) |
Injector pressure sensor, except 1, 9 TDI unit injector engine |
| 64 |
199 (LB/YE) |
Clutch pedal position switch, to, Powertrain Control Module (PCM) (12A650) |
| 65 |
352 (BN/LG) |
Differential Pressure Feedback EGR (DPFE) sensor, input |
| ****
- |
not used |
| ******
796 (LB) |
Camshaft position sensor (6B288), signal, return |
| 66 |
1102 (YE/LG) |
Cylinder-head temperature sensor (6G004), to, Powertrain Control Module (PCM) (12A650) |
| ******
439 (TN/LG) |
Modified vehicle power, to, Powertrain Control Module (PCM) (12A650) |
| 67 |
91 (VT/WH) |
Canister vent |
| ****
- |
not used |
| 91 (VT/WH) |
Power, Battery Power |
| 68 |
679 (GY/BK) |
Vehicle Speed Sensor (VSS) + |
| *****
1100 (GY/BK) |
Fuel injector 9 (9F593), control |
| ******
- |
not used |
| 69 |
- |
not used |
| **
883 (BK/LB) |
Voltage supplied at all times (overload protected) |
| 331 (PK/YE) |
A/C clutch relay, control |
| 70 |
- |
not used |
| ******
464 (BK/PK) |
Low coolant indicator, control |
| 71 |
361 (RD) |
Voltage supplied in Start and Run (overload protected) |
| 72 |
561 (TN/RD) |
Fuel injector 7, control |
| *
- |
not used |
| ******
- |
not used |
| 73 |
559 (TN/BK) |
Fuel injector 5, control |
| ******
- |
not used |
| 74 |
557 (BN/YE) |
Fuel injector 3, control |
| ******
- |
not used |
| 75 |
555 (TN) |
Fuel injector 1, control |
| ******
- |
not used |
| 76 |
570 (BK/WH) |
Ground |
| ****
- |
not used |
| 77 |
570 (BK/WH) |
Ground |
| 78 |
1027 (PK/LB) |
Coil On Plug (COP) 7 (12029), control |
| *
528 (PK/WH) |
PCM, to, Ignition coil (12029) |
| *****
1026 (PK/WH) |
Coil On Plug (COP) 2 (12029), control |
| ******
- |
not used |
| 79 |
1029 (WH/LG) |
Coil On Plug (COP) 8 (12029), control |
| *
911 (WH/LG) |
Transmission Control Indicator Lamp (TCIL) |
| ******
358 (LG/BK) |
Manifold Absolute Pressure (MAP) sensor, to, Powertrain Control Module (PCM) (12A650) |
| 80 |
926 (LB/OG) |
Fuel pump relay, control |
| ******
814 (WH/BK) |
Injector Driver Module (IDM) power relay, control |
| 81 |
925 (WH/YE) |
to Electronic Pressure Control (EPC) solenoid |
| 82 |
- |
not used |
| *****
1141 (YE/BK) |
Coil On Plug (COP) 4 (12029), control |
| 83 |
264 (WH/LB) |
Idle Air Control (IAC) valve (9F715), control |
| ******
552 (YE/RD) |
Injection Pressure Regulator (IPR), to, Powertrain Control Module (PCM) (12A650) |
| 84 |
136 (DB/YE) |
Powertrain Control Module (PCM) (12A650) - Output Shaft Speed (OSS) sensor (7M101) |
| ******
970 (DG/WH) |
Turbine Shaft Speed (TSS) sensor |
| 85 |
795 (DG) |
Camshaft position sensor (6B288), to, Powertrain Control Module (PCM) (12A650) |
| ******
- |
not used |
| 86 |
- |
not used |
| 87 |
94 (RD/BK) |
Heated Oxygen Sensor (HO2S) #21 (9F472), input |
| 812 (DB/LG) |
Injection Control Pressure (ICP) sensor |
| 88 |
967 (LB/RD) |
Mass Air Flow (MAF) sensor (12B579), output |
| ******
- |
not used |
| 89 |
355 (GY/WH) |
Throttle Position Sensor (TPS) (9B989), input |
| 90 |
351 (BN/WH) |
Reference, voltage |
| 91 |
359 (GY/RD) |
signal, return |
| 92 |
511 (LG) |
Brake pedal position switch (13480), to stoplamps |
| 93 |
387 (RD/WH) |
Heated Oxygen Sensor (HO2S) #11 (9F472), heater |
| ******
- |
not used |
| 94 |
388 (YE/LB) |
Heated Oxygen Sensor (HO2S) #21 (9F472), heater |
| ******
926 (LB/OG) |
Fuel pump relay, control |
| 95 |
389 (WH/BK) |
Heated Oxygen Sensor (HO2S) #12 (9G444), heater |
| ****
- |
not used |
| ******
821 (BN/OG) |
fuel delivery command, signal, output |
| 96 |
- |
not used |
| *
& **
390 (TN/YE) |
Heated Oxygen Sensor (HO2S) #22 (9G444), heater |
| ******
817 (YE/LB) |
cylinder identification, signal, output |
| 97 |
361 (RD) |
Voltage supplied in Start and Run (overload protected) |
| *
- |
not used |
| 98 |
562 (LB) |
Fuel injector 8, control |
| *
- |
not used |
| ******
462 (PK) |
Manifold intake air heater relay, control |
| 99 |
560 (LG/OG) |
Fuel injector 6, control |
| ******
- |
not used |
| 100 |
558 (BN/LB) |
Fuel injector 4, control |
| ******
29 (YE/WH) |
Fuel pump/fuel gauge sender |
| 101 |
556 (WH) |
Fuel injector 2, control |
| ******
1086 (VT/OG) |
Glow plug relay, to, Powertrain Control Module (PCM) (12A650) |
| 102 |
- |
not used |
| 1030 (DG/VT) |
Coil On Plug (COP) 4 (12029), control |
| 103 |
570 (BK/WH) |
Ground |
| 104 |
1026 (PK/WH) |
Coil On Plug (COP) 2 (12029), control |
| *****
1028 (WH/PK) |
Coil On Plug (COP) 3 (12029), control |
| *
- |
not used |
| ******
- |
not used |
