Pinpoint Test F: The Module Does Not Respond To The Diagnostic Tool - Restraint Control Module (RCM)

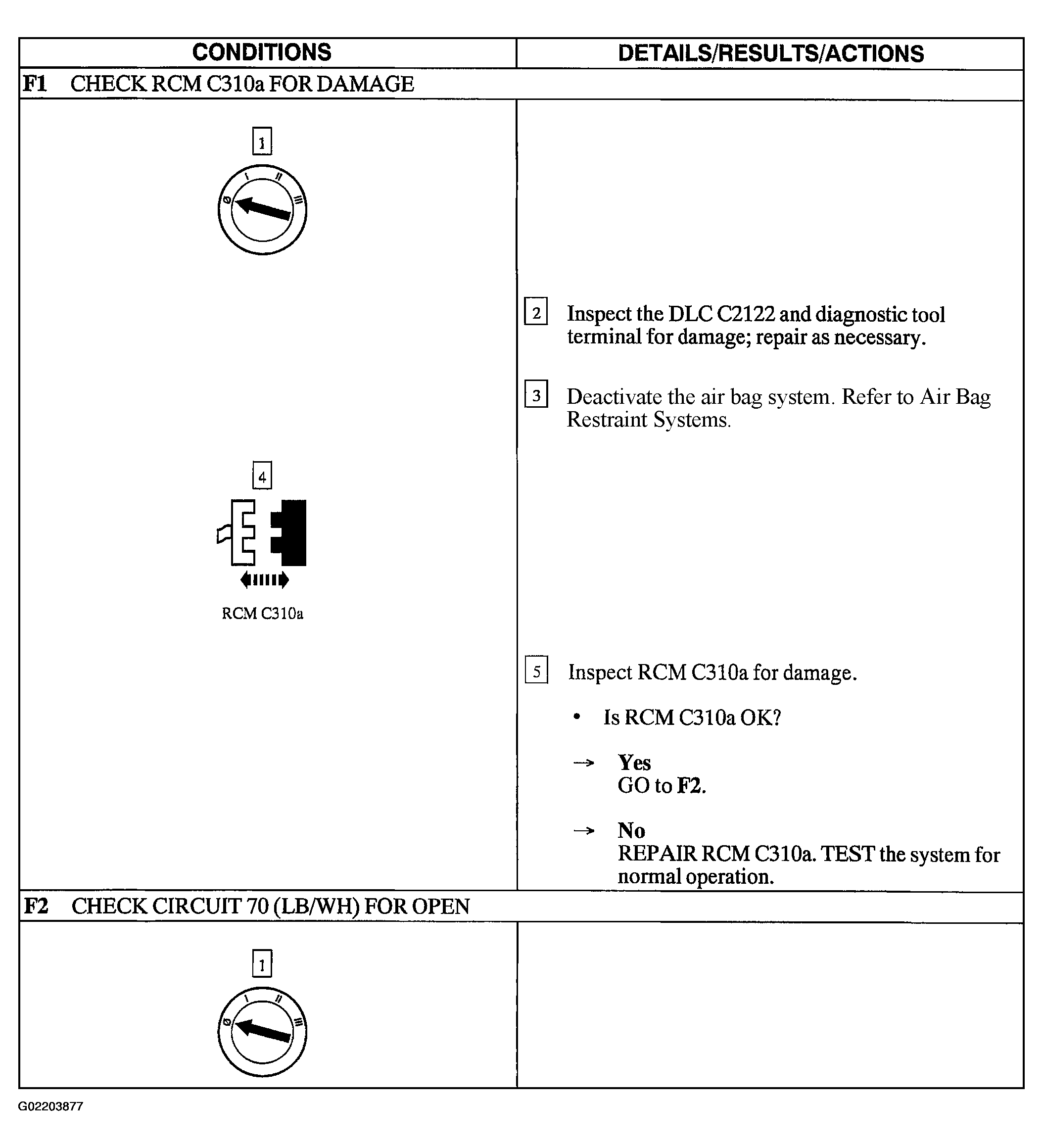

Fig 1: Pinpoint Test F: Module Does Not Respond To Diagnostic Tool - Restraint Control Module (F1-F2)

Courtesy of FORD MOTOR CO.

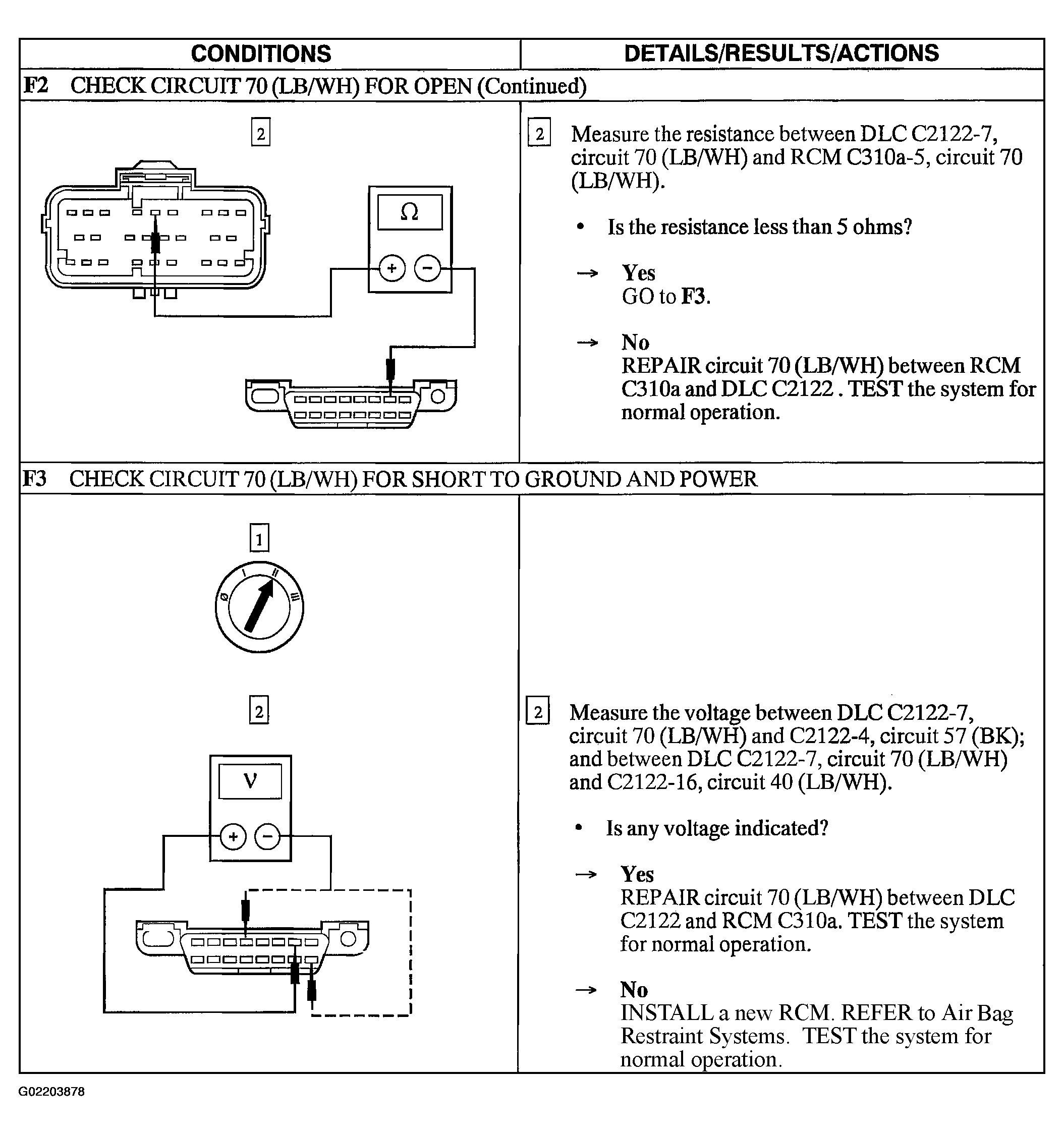

Fig 2: Pinpoint Test F: Module Does Not Respond To Diagnostic Tool - Restraint Control Module (F2 Cont. - F3)

Courtesy of FORD MOTOR CO.
