Pinpoint Test J: The Module Does Not Respond To The Diagnostic Tool - Powertrain Control Module (Pcm)

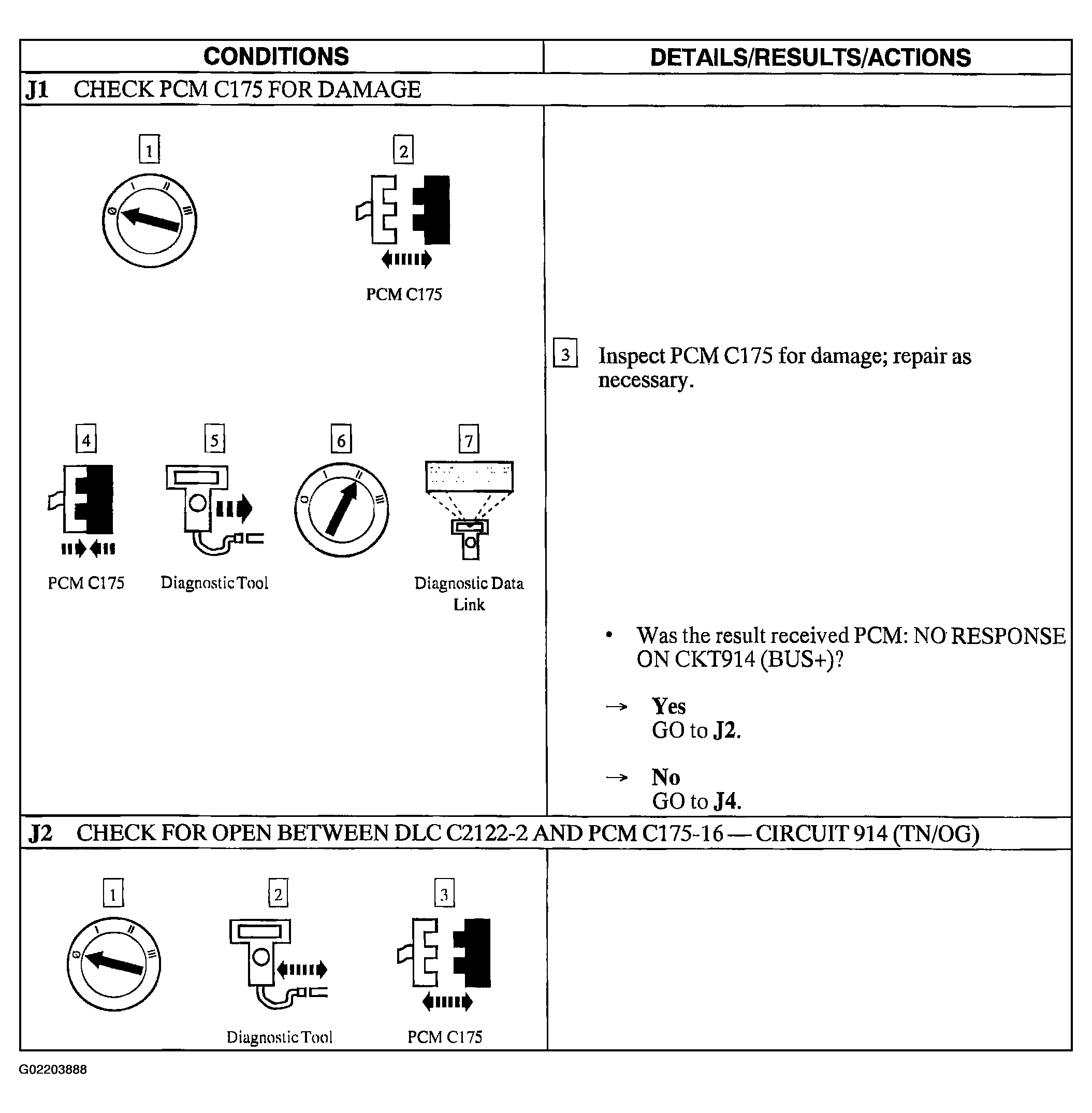

Fig 1: Pinpoint Test J: Module Does Not Respond To Diagnostic Tool - Powertrain Control Module (J1-J2)

Courtesy of FORD MOTOR CO.

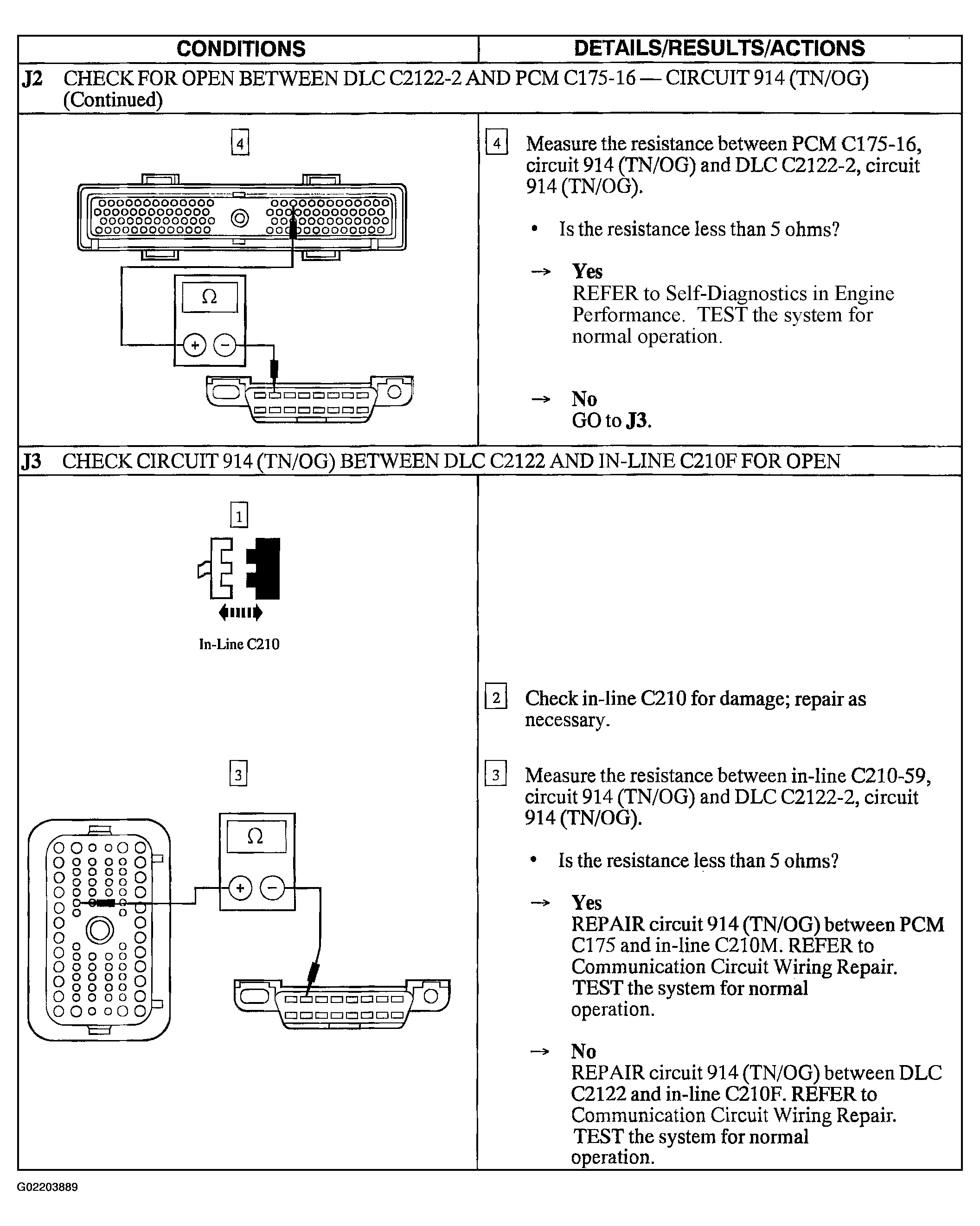

Fig 2: Pinpoint Test J: Module Does Not Respond To Diagnostic Tool - Powertrain Control Module (J2 Cont.-J3)

Courtesy of FORD MOTOR CO.

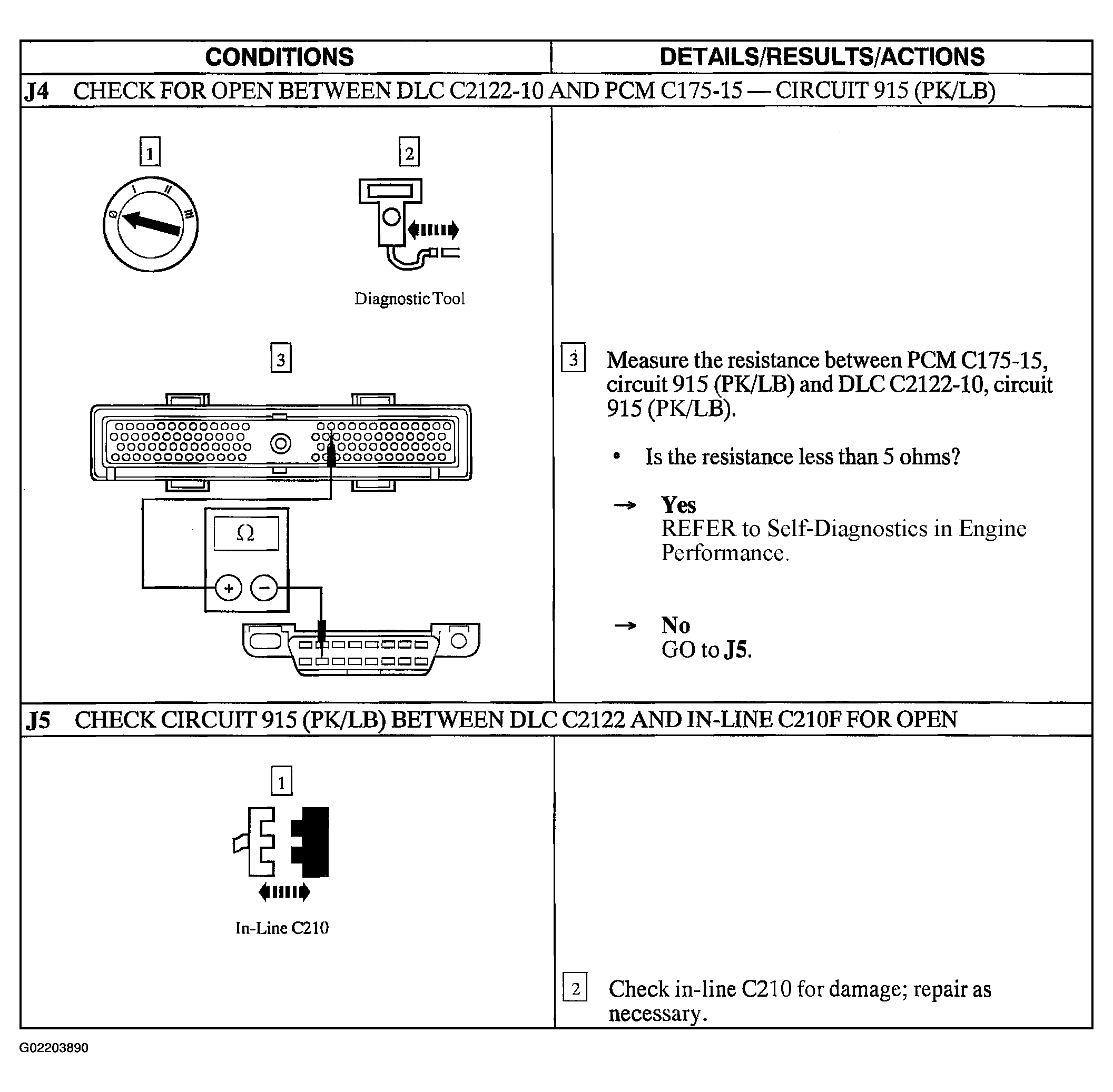

Fig 3: Pinpoint Test J: Module Does Not Respond To Diagnostic Tool - Powertrain Control Module (J4-J5)

Courtesy of FORD MOTOR CO.

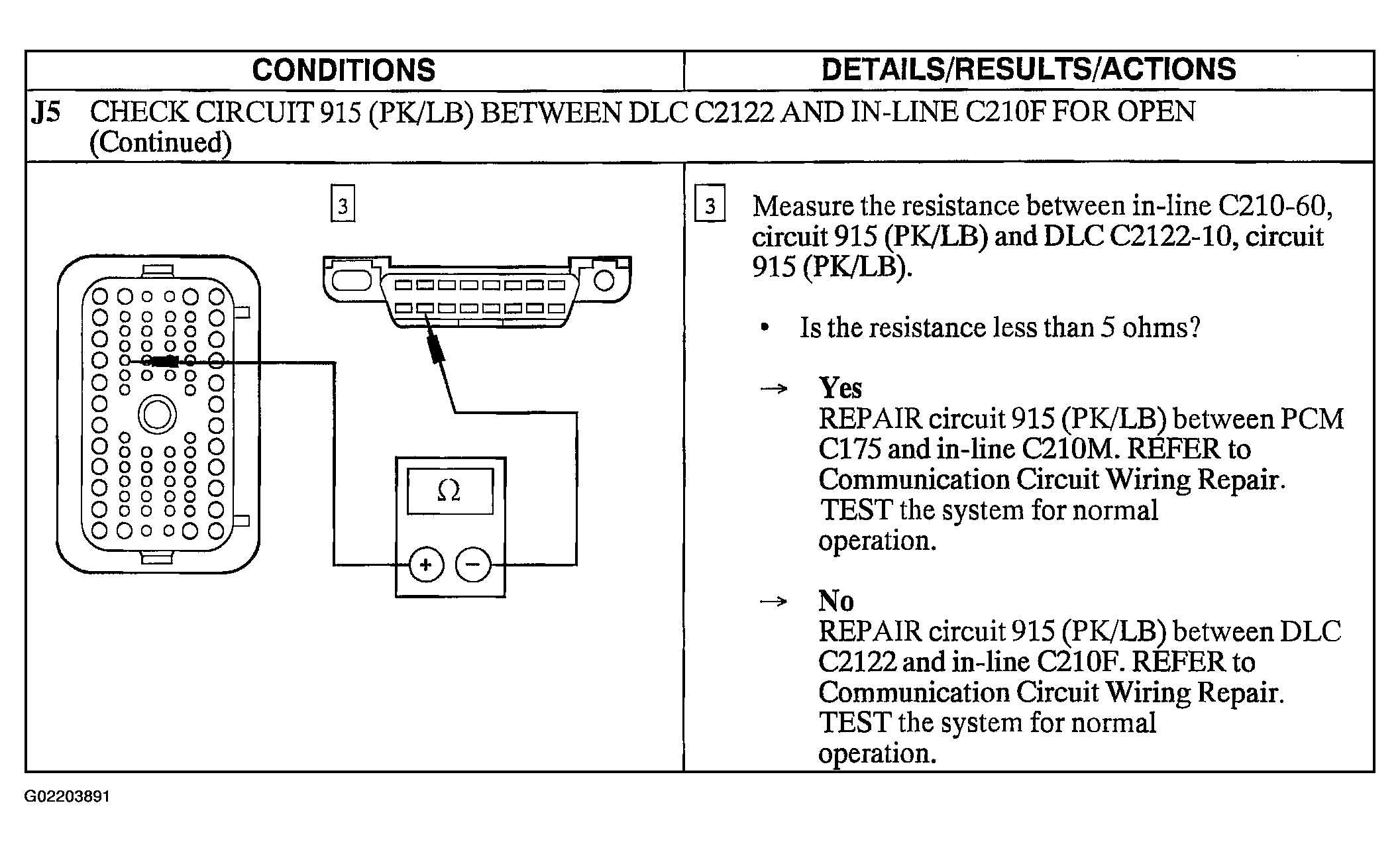

Fig 4: Pinpoint Test J: Module Does Not Respond To Diagnostic Tool - Powertrain Control Module (J5 Cont.)

Courtesy of FORD MOTOR CO.
