Keypad - Keyless Entry: Removal

  1. Disconnect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the driver door panel. For additional information; refer to INTERIOR TRIM AND ORNAMENTATION .
  3. Position the weather shield aside.
  4. Remove the keyless entry keypad.
    1. Remove the clip and remove the keyless entry keypad.
      • Disconnect the electrical connector.

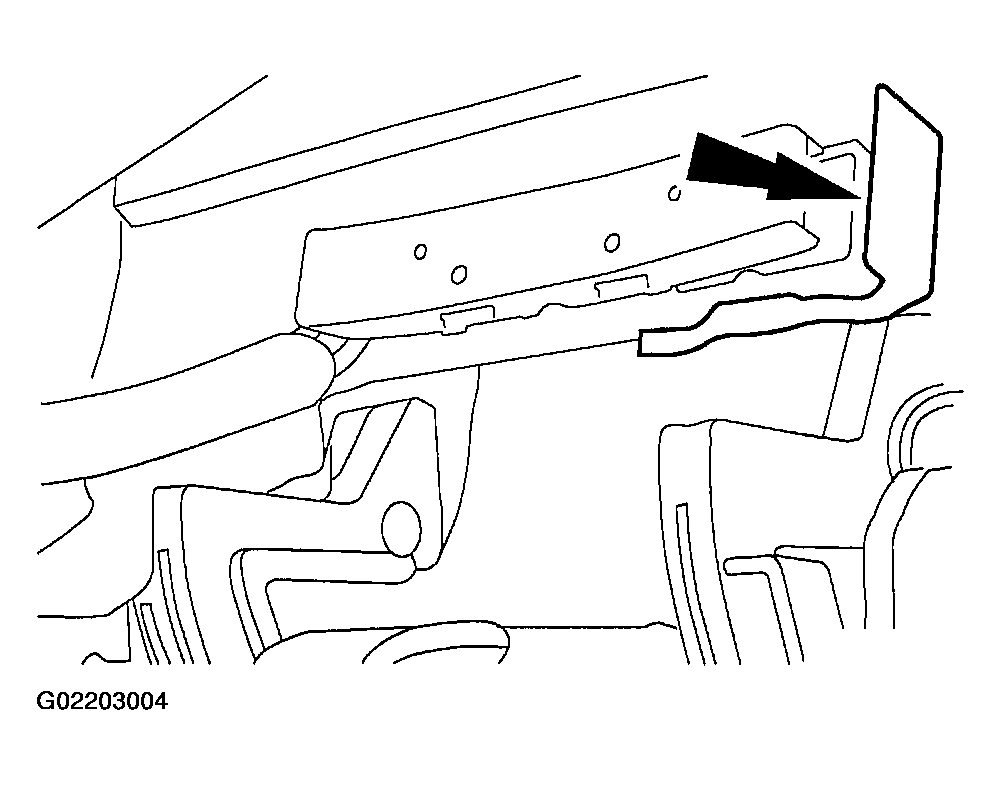

        Fig 1: Removing Keyless Entry Keypad
        G02203004Courtesy of FORD MOTOR CO.
