Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Driver Door Module

WARNING: This page is about a different car, the 2002 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

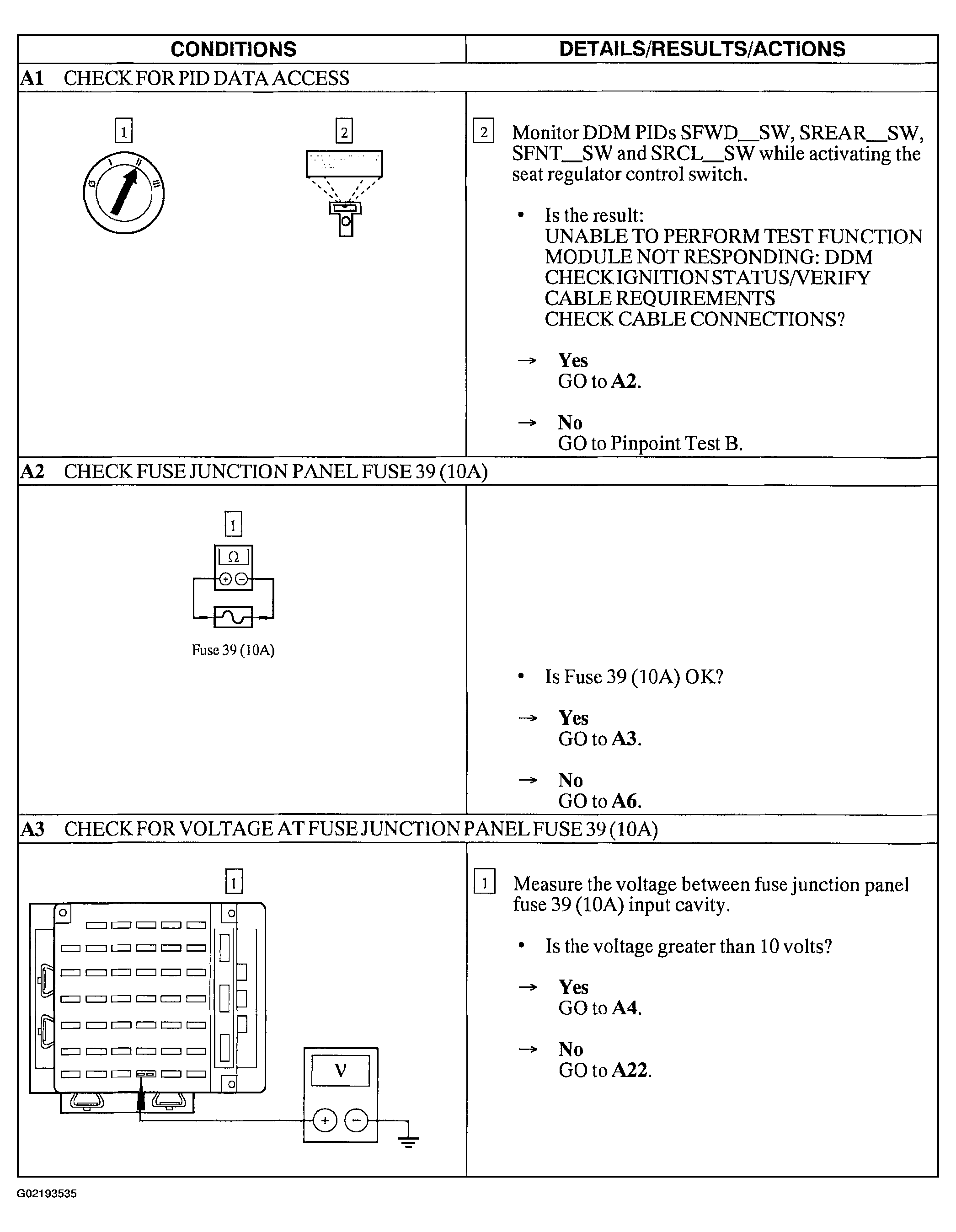

Fig 1: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Driver Door Module (Steps A1-A3)

Courtesy of FORD MOTOR CO.

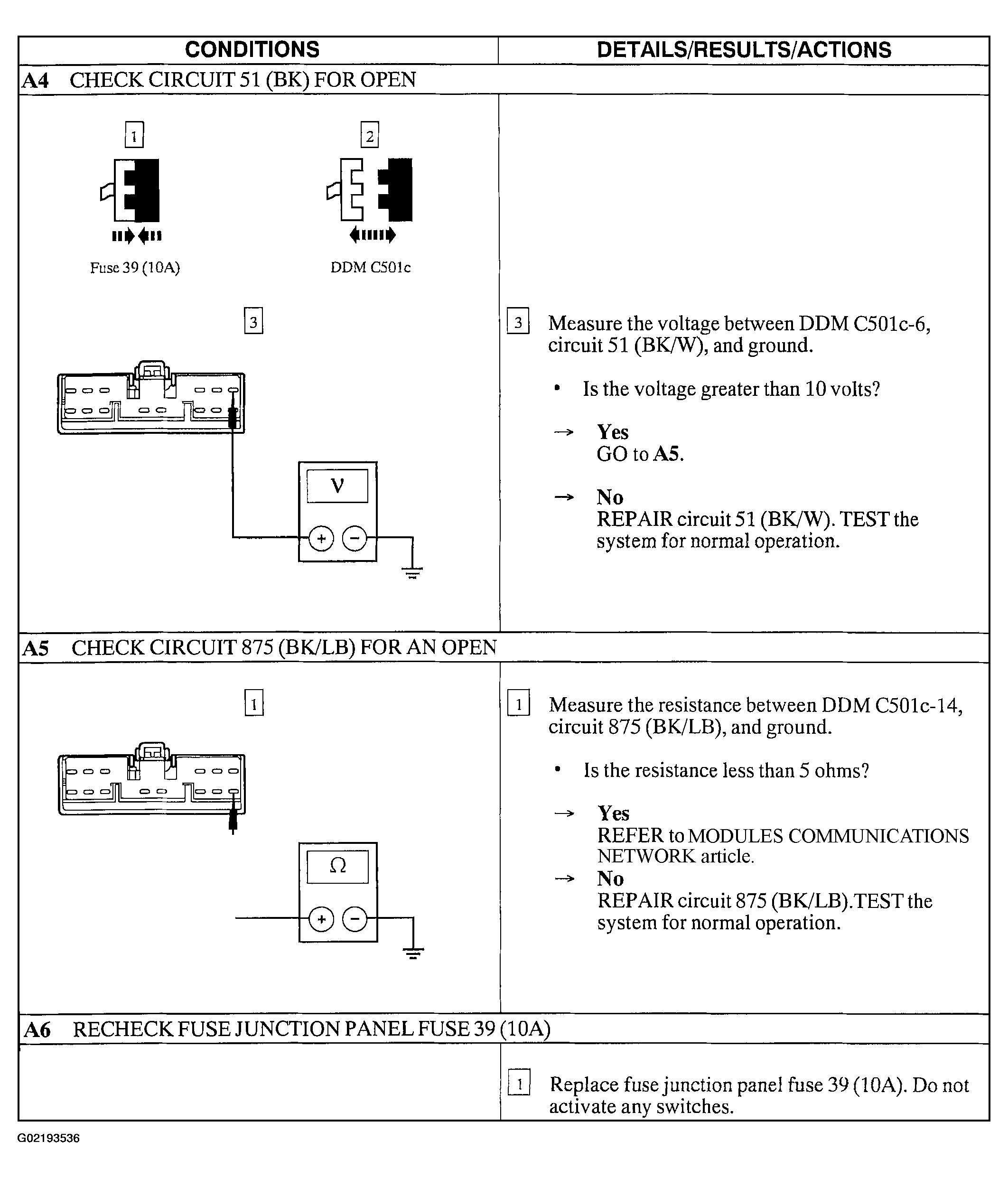

Fig 2: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Driver Door Module (Steps A4-A6)

Courtesy of FORD MOTOR CO.

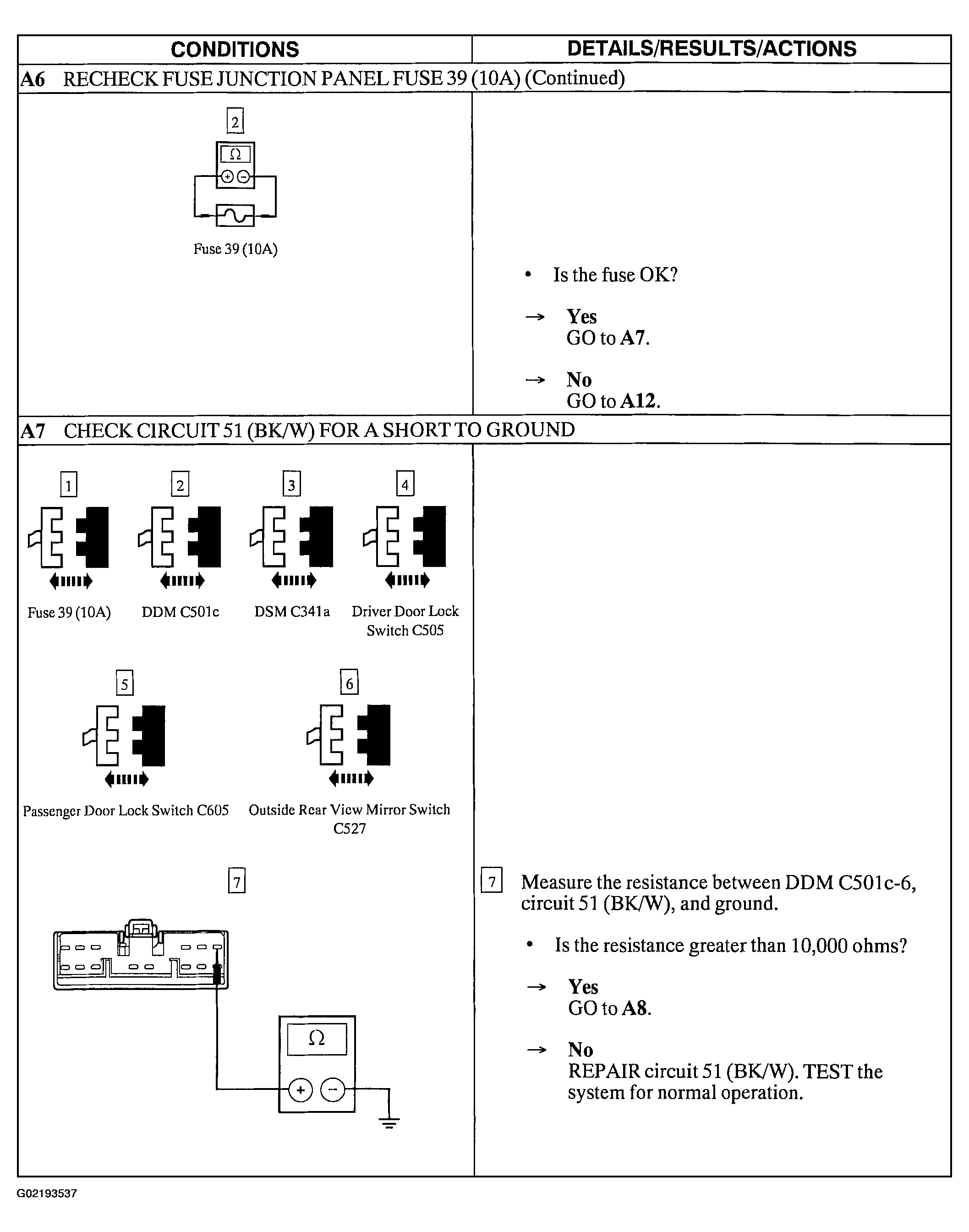

Fig 3: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Driver Door Module (Steps A6 Cont. & A7)

Courtesy of FORD MOTOR CO.

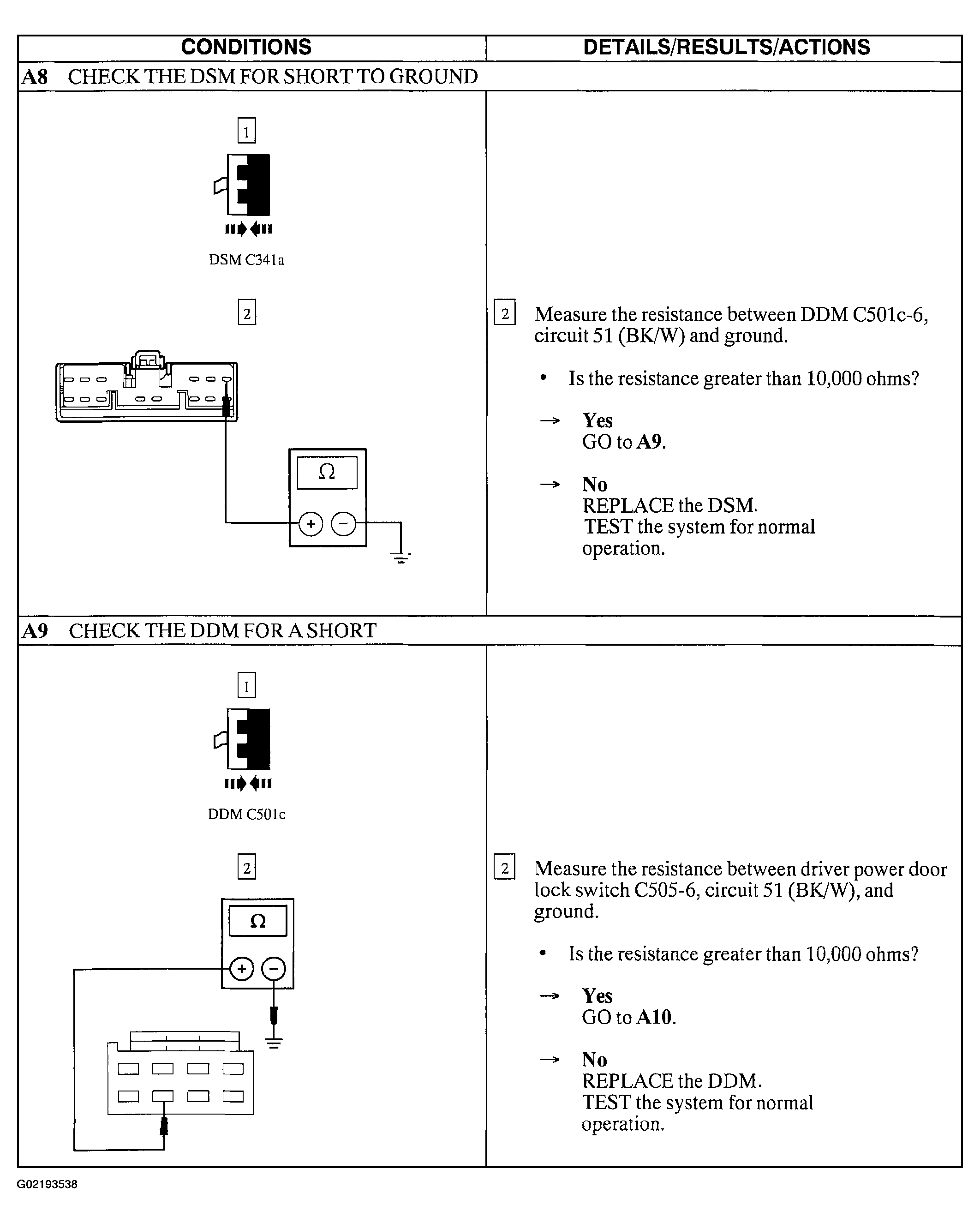

Fig 4: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Driver Door Module (Steps A8 & A9)

Courtesy of FORD MOTOR CO.

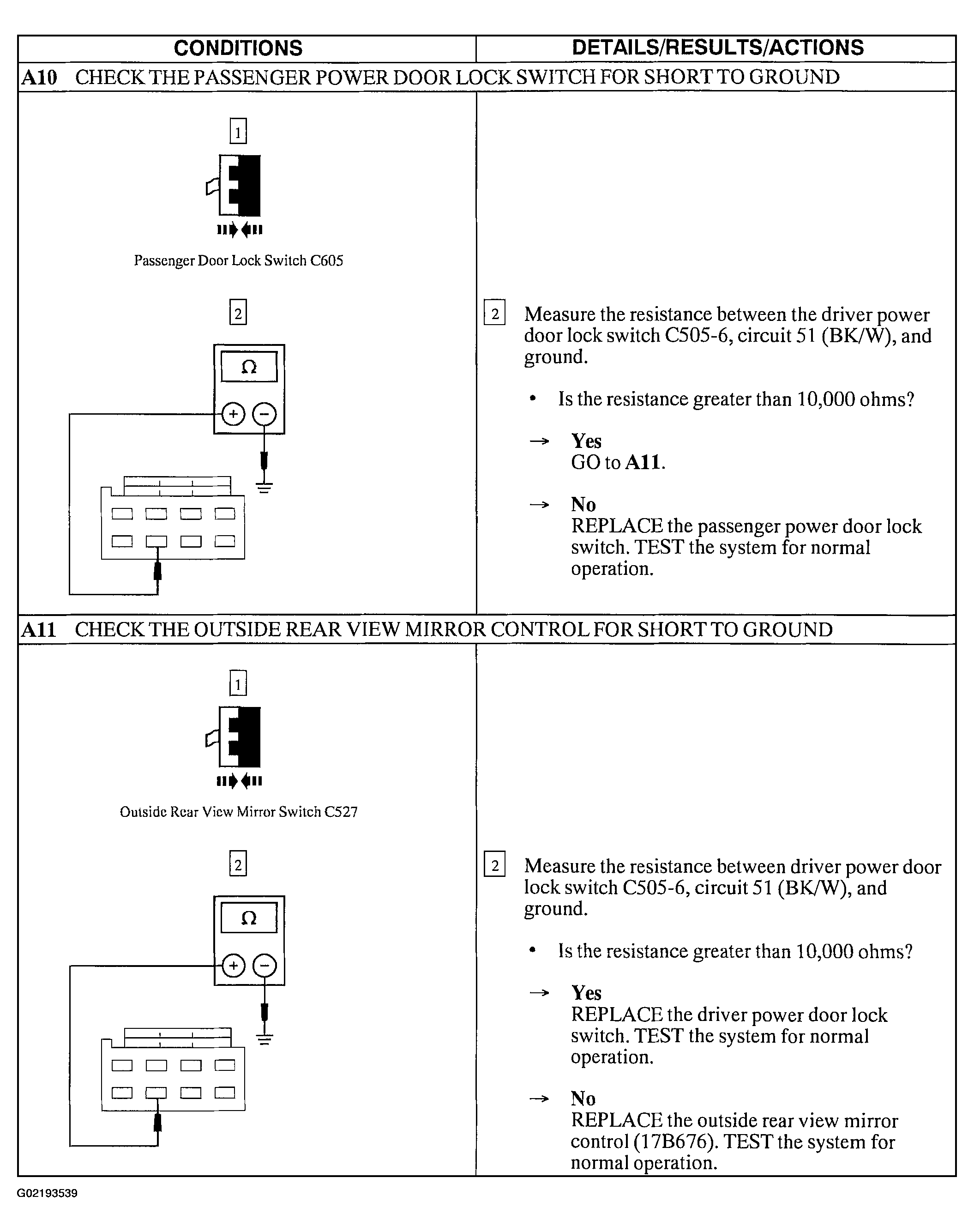

Fig 5: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Driver Door Module (Steps A10 & A11)

Courtesy of FORD MOTOR CO.

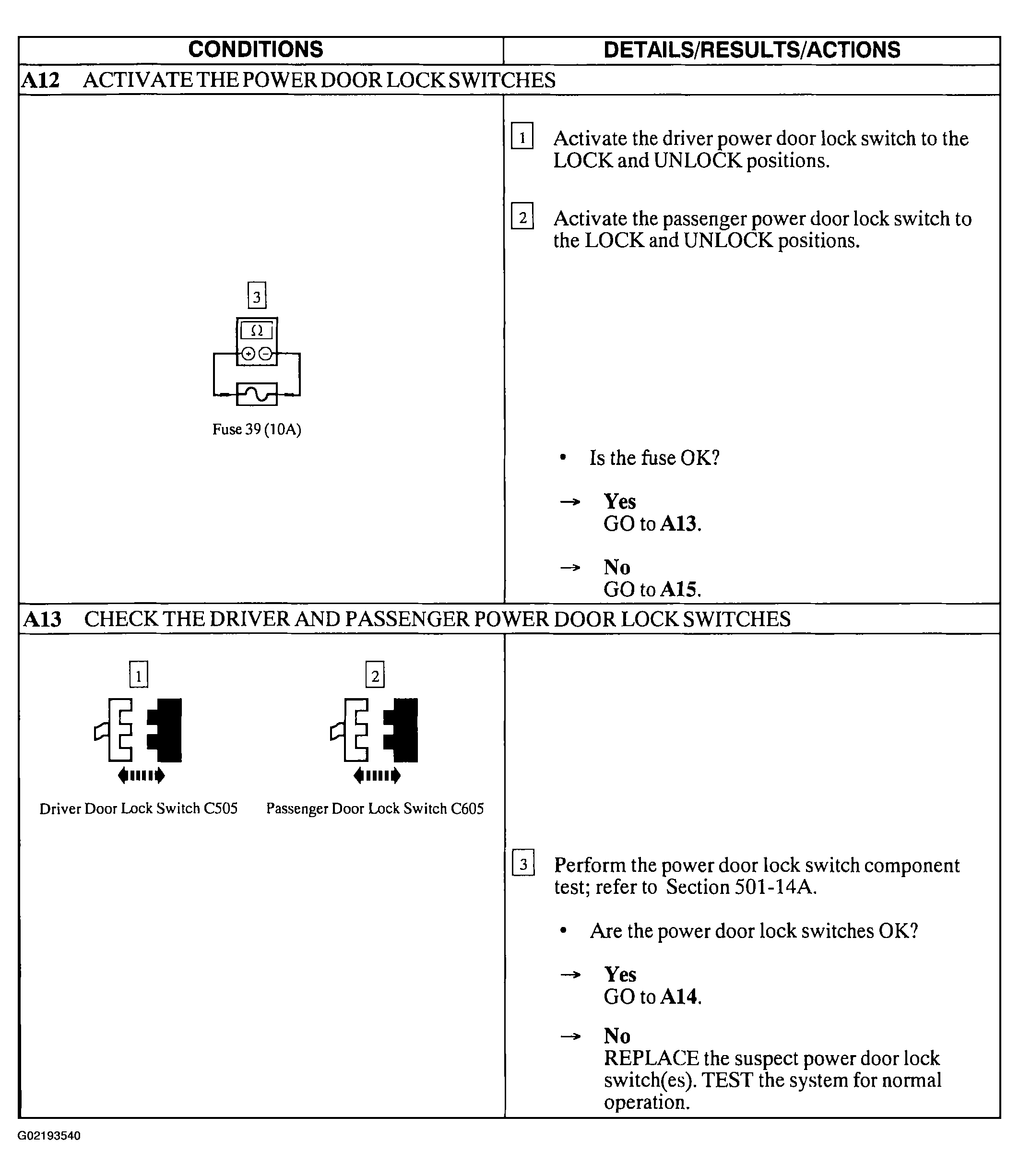

Fig 6: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Driver Door Module (Steps A12 & A13)

Courtesy of FORD MOTOR CO.

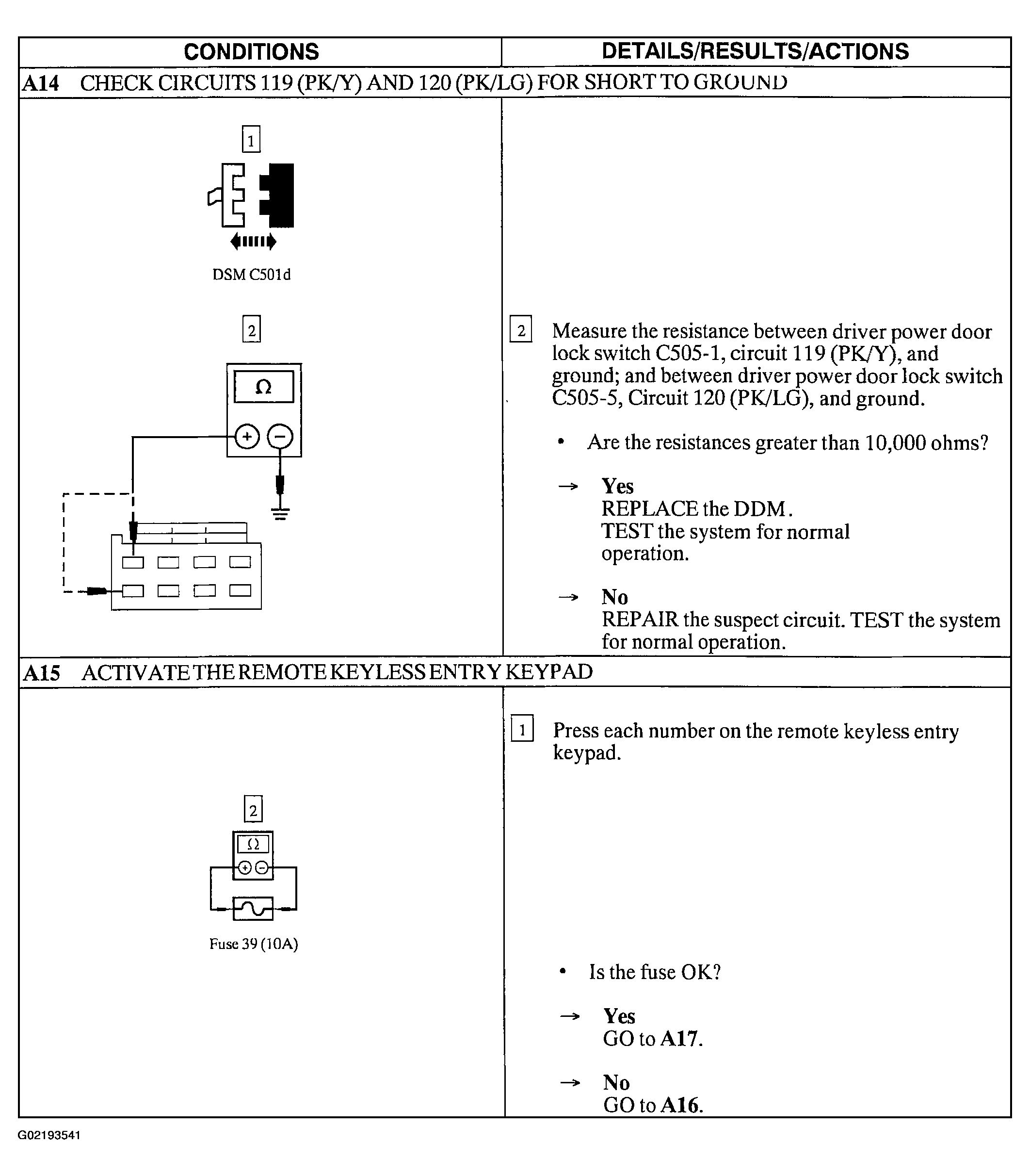

Fig 7: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Driver Door Module (Steps A14 & A15)

Courtesy of FORD MOTOR CO.

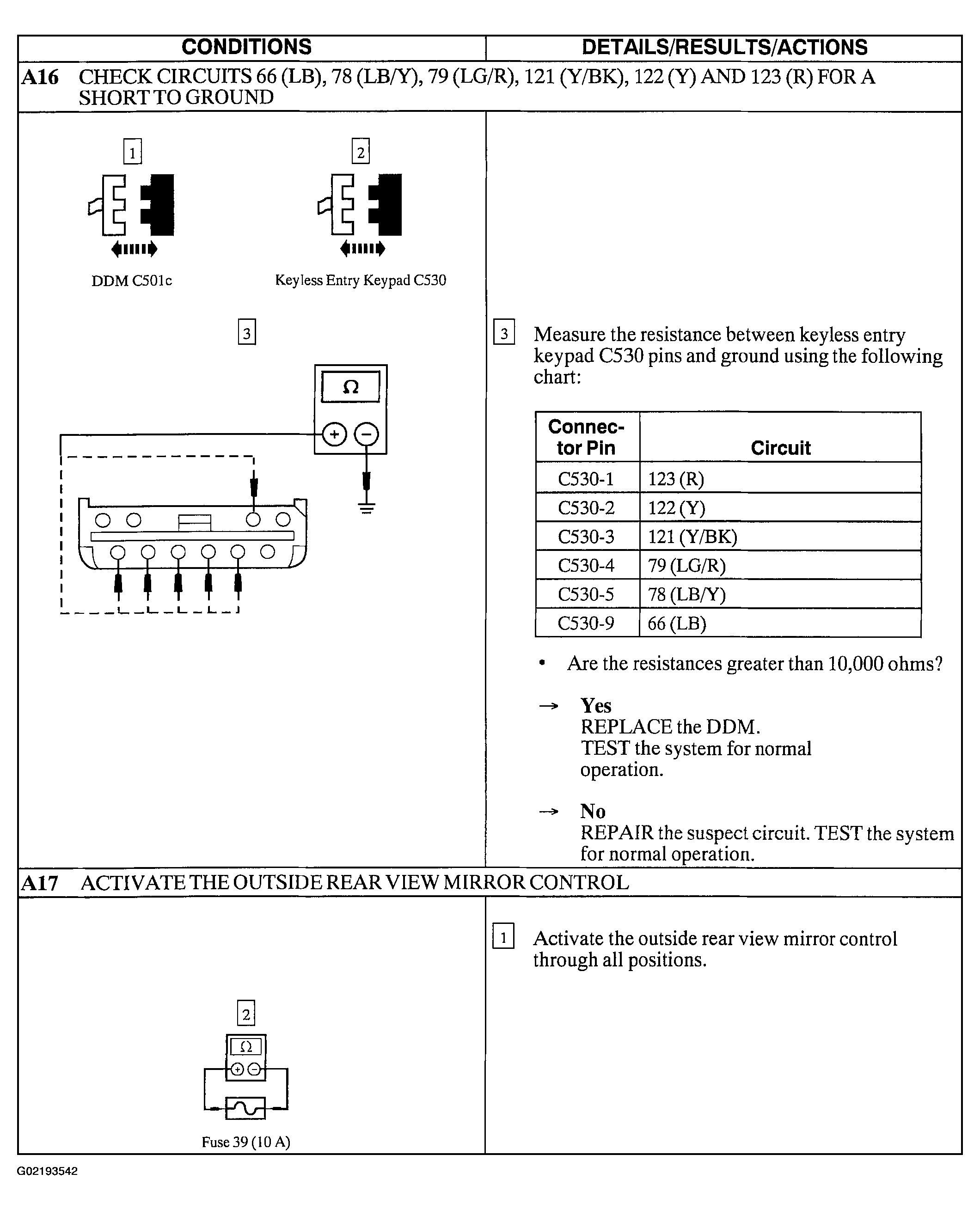

Fig 8: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Driver Door Module (Steps A16 & A17)

Courtesy of FORD MOTOR CO.

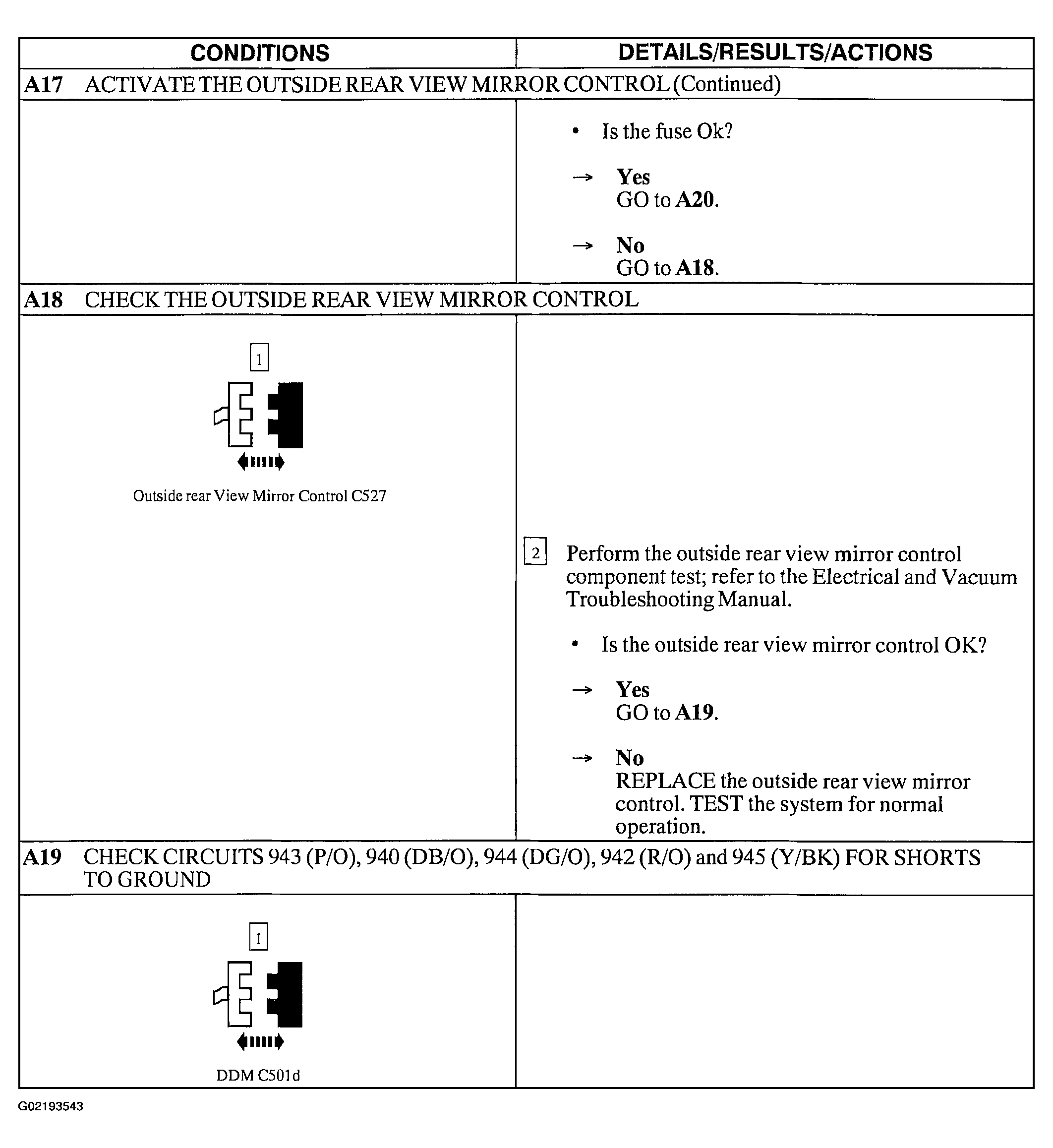

Fig 9: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Driver Door Module (Steps A17 Cont.-A19)

Courtesy of FORD MOTOR CO.

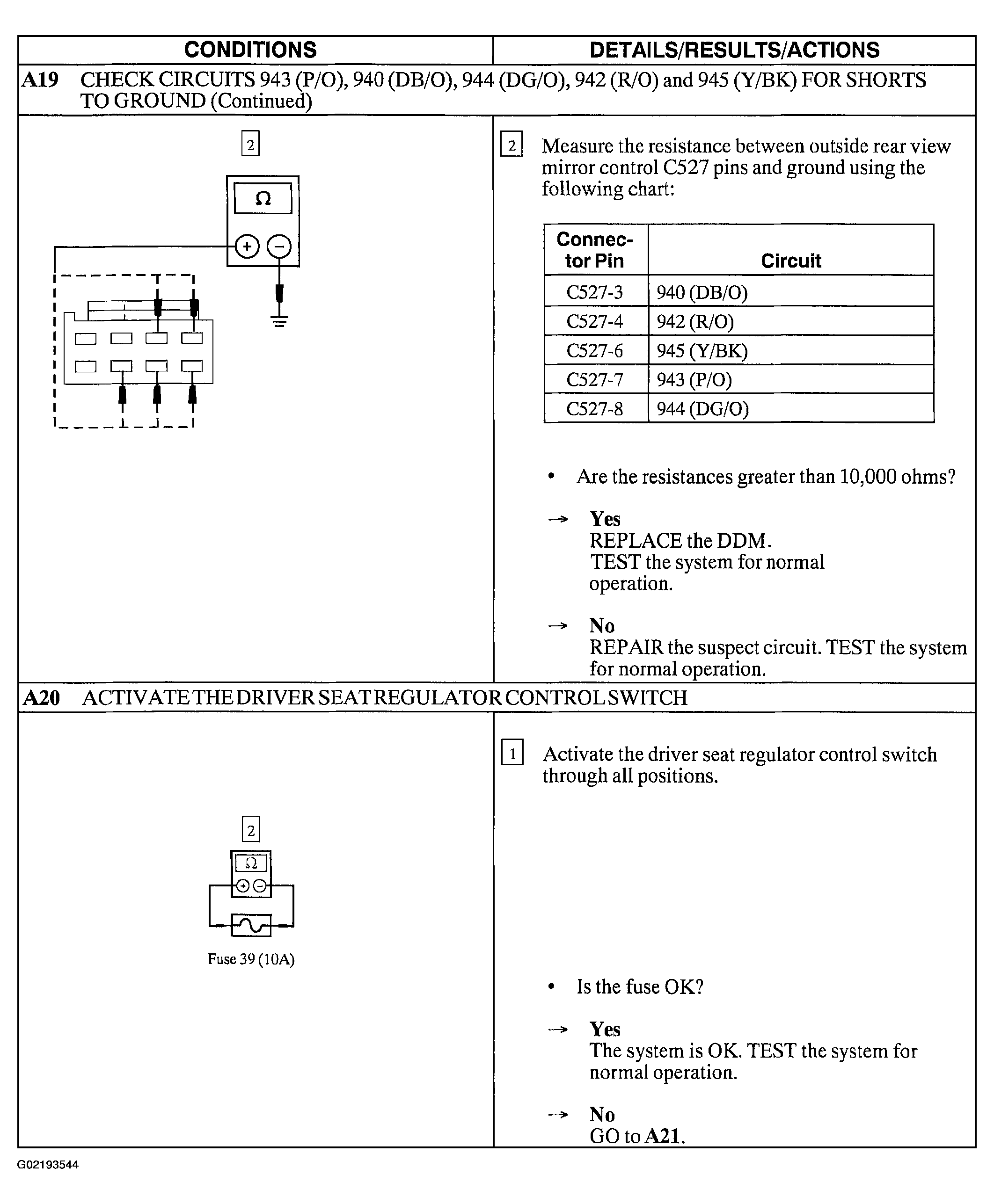

Fig 10: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Driver Door Module (Steps A19 Cont. & A20)

Courtesy of FORD MOTOR CO.

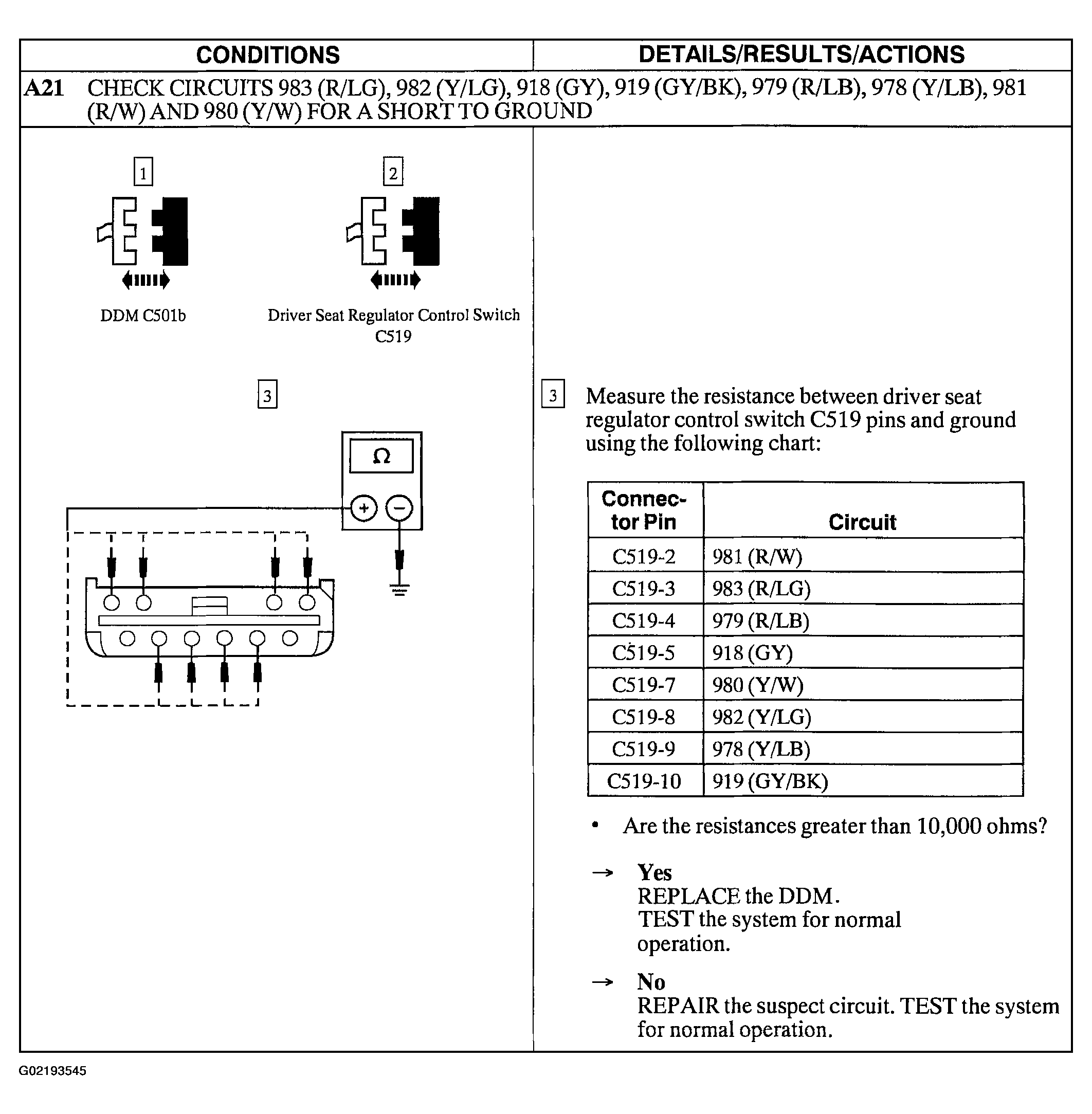

Fig 11: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Driver Door Module (Step A21 Cont.)

Courtesy of FORD MOTOR CO.

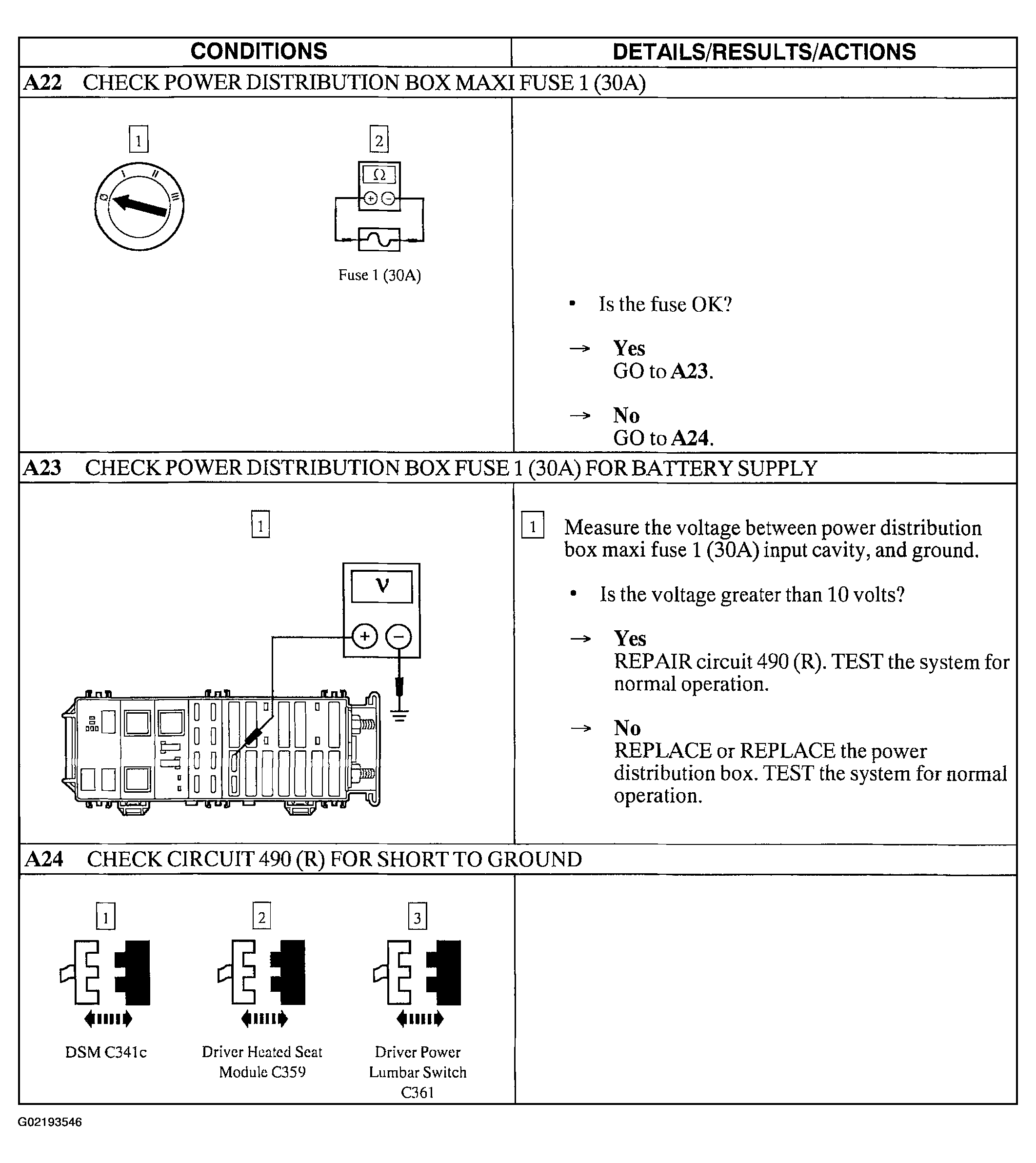

Fig 12: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Driver Door Module (Steps A22-A24)

Courtesy of FORD MOTOR CO.

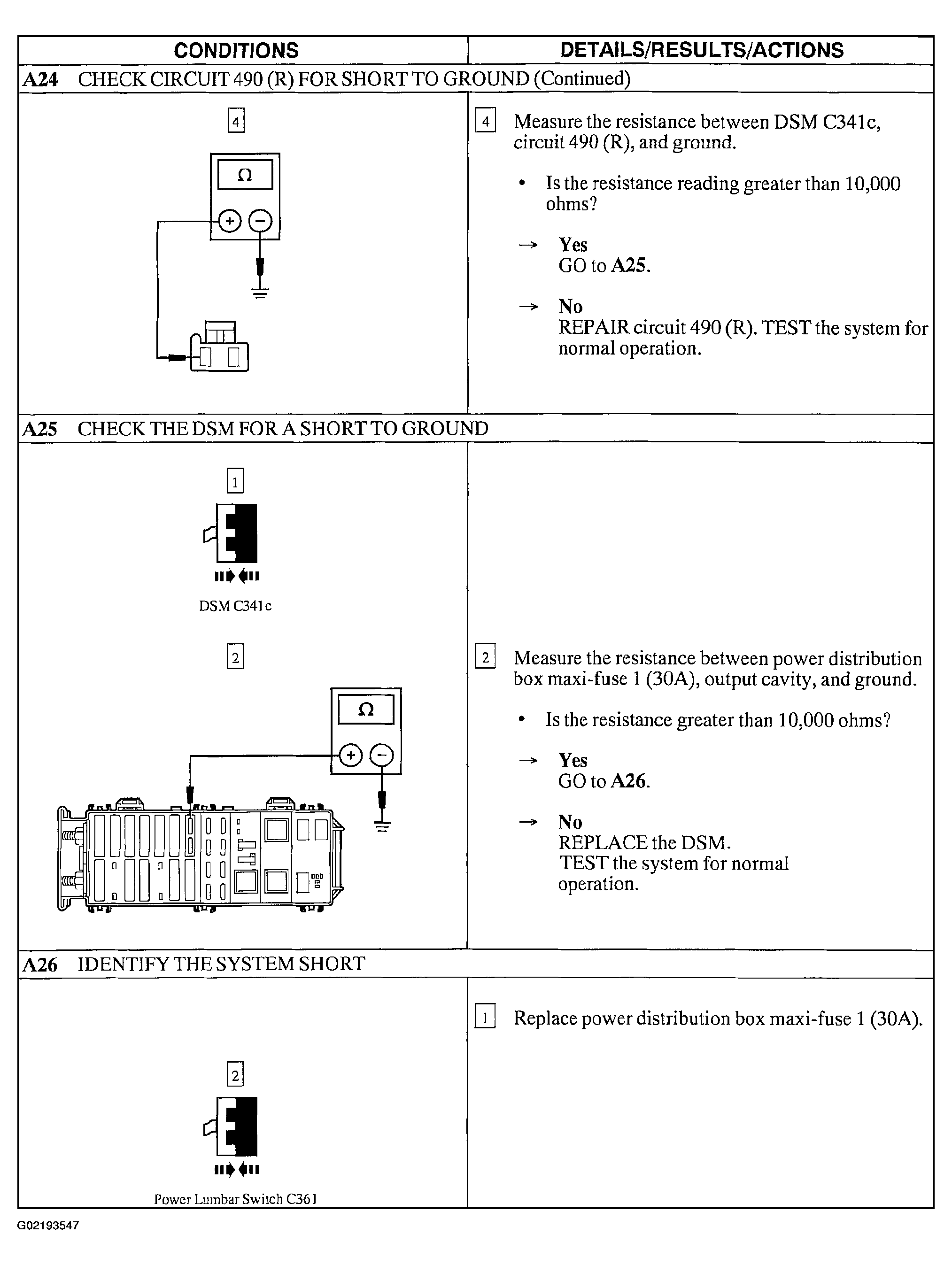

Fig 13: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Driver Door Module (Steps A24 Cont.-A26)

Courtesy of FORD MOTOR CO.

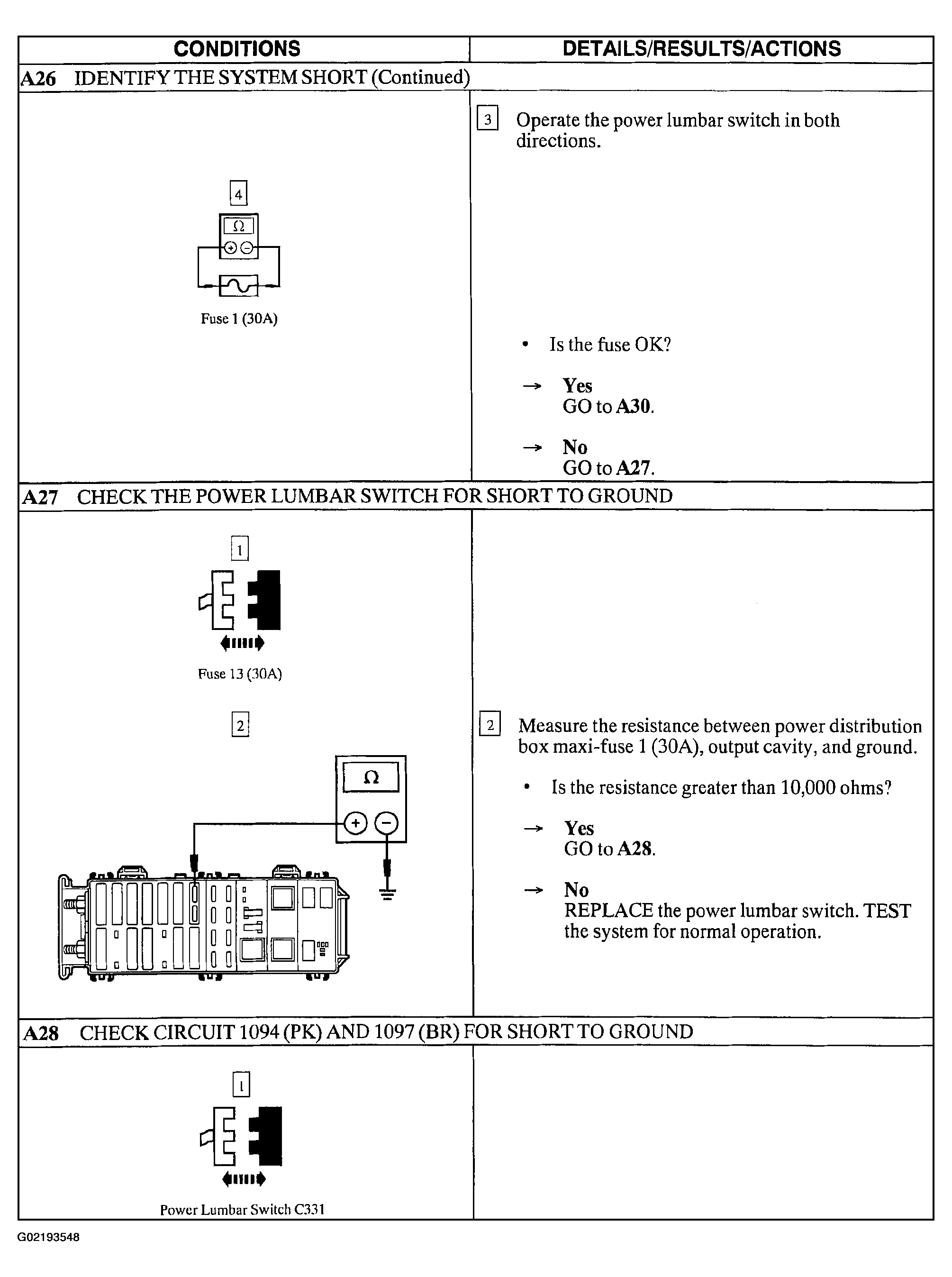

Fig 14: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Driver Door Module (Steps A26 Cont.-A28)

Courtesy of FORD MOTOR CO.

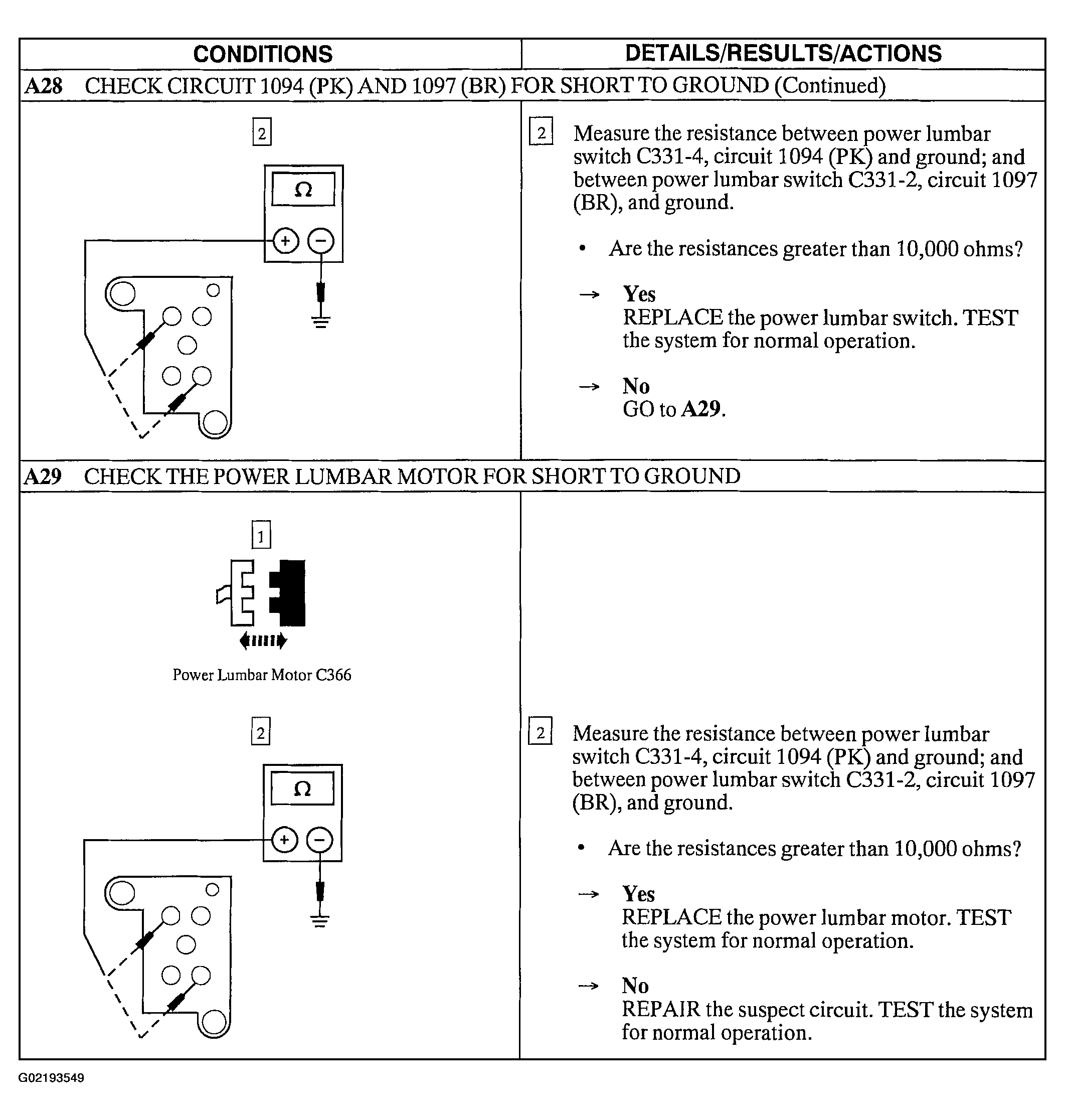

Fig 15: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Driver Door Module (Steps A28 Cont. & A29)

Courtesy of FORD MOTOR CO.

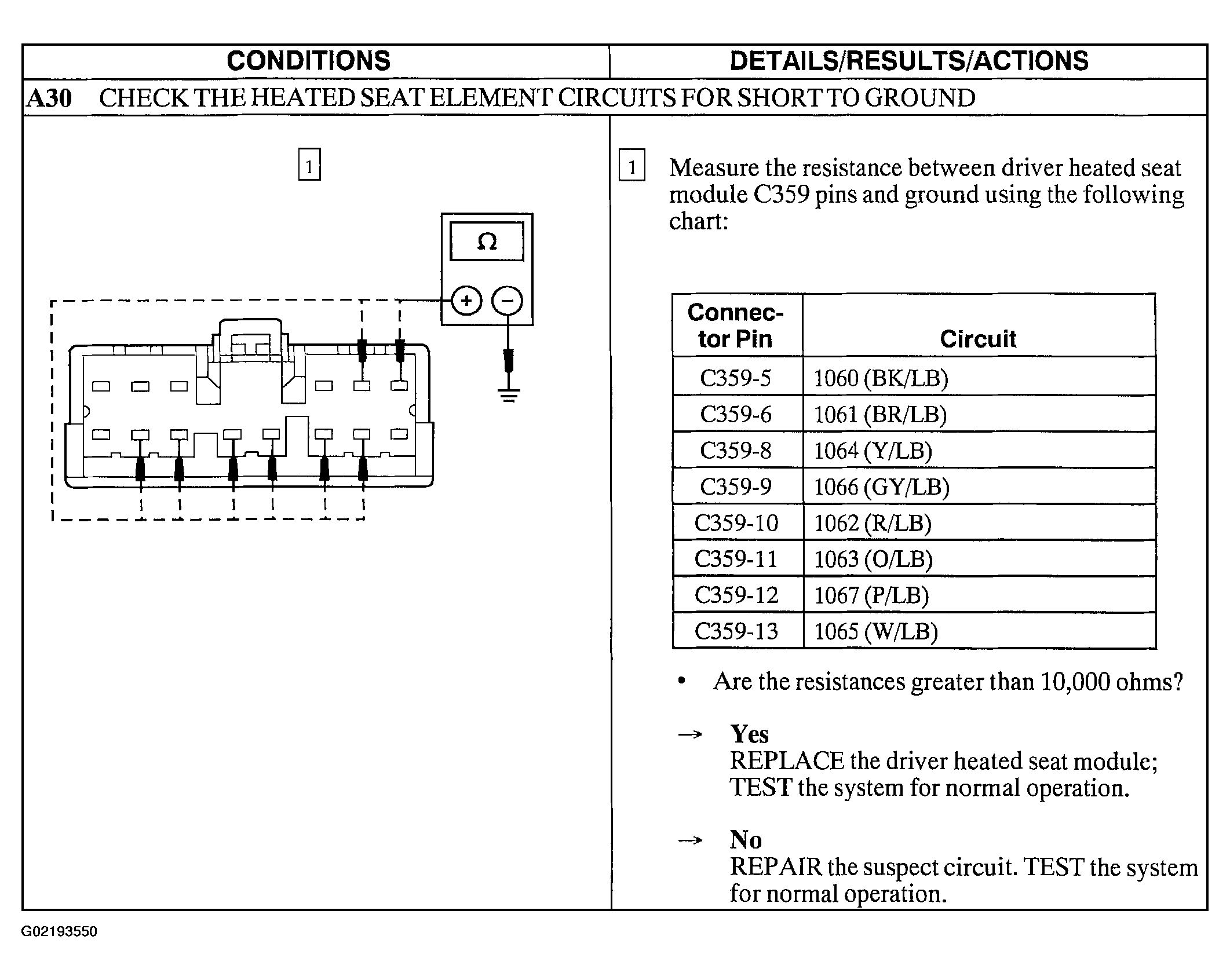

Fig 16: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Driver Door Module (Step A30)

Courtesy of FORD MOTOR CO.
