System Flushing
WARNING:
Do not mix fluid types. Any mixture or any unapproved fluid could lead to seal deterioration and leaks. A leak could ultimately cause loss of fluid, which could result in a loss of power steering assist.

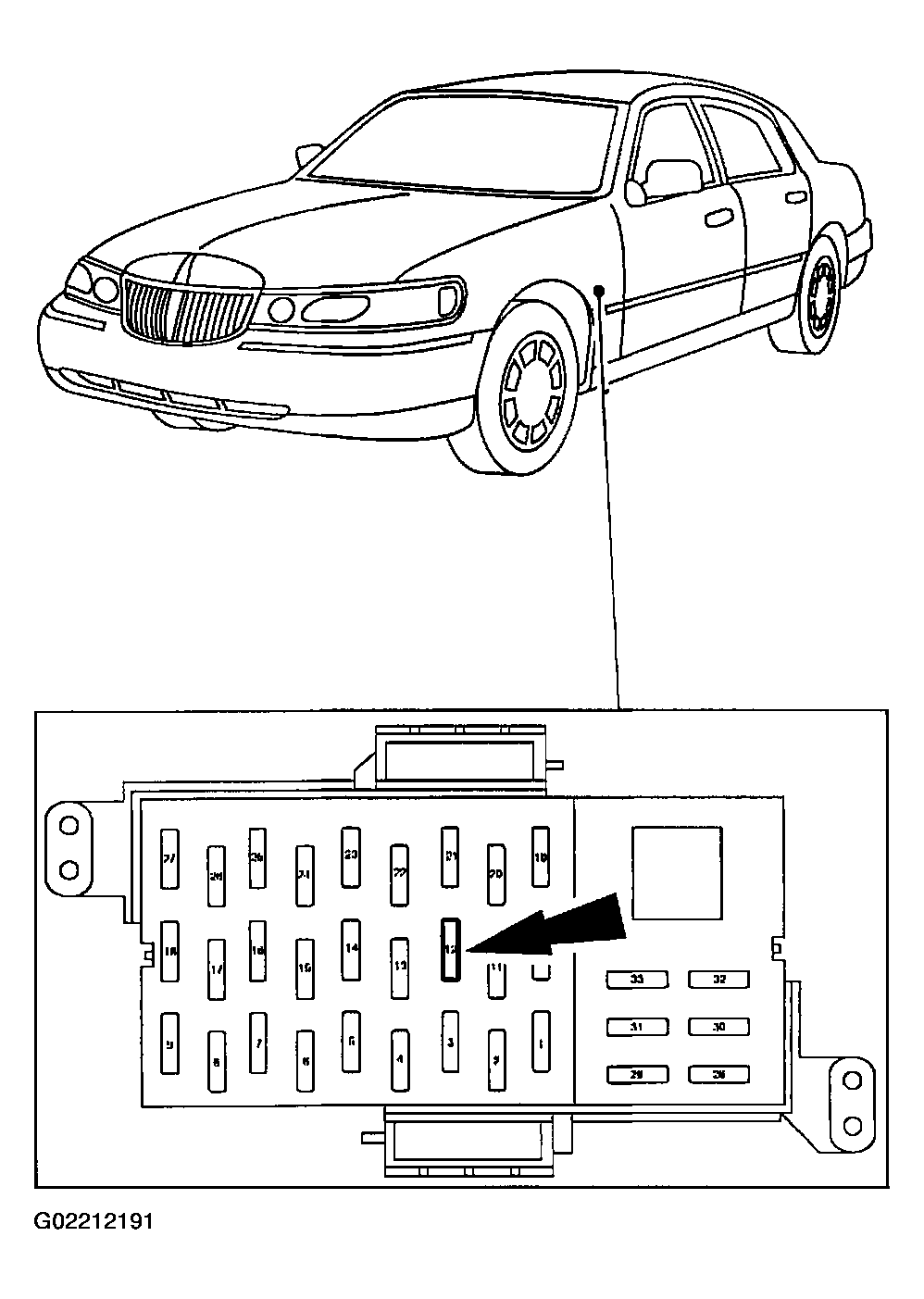

- Remove the ignition coil fuse number 12 in the fuse junction panel to disable the engine from starting.
- Disconnect the power steering return hose.
- Compress and move the hose clamp.
- Disconnect the power steering return hose and plug the fitting to the reservoir.
- Attach an extension hose between the power steering return hose and an empty container.

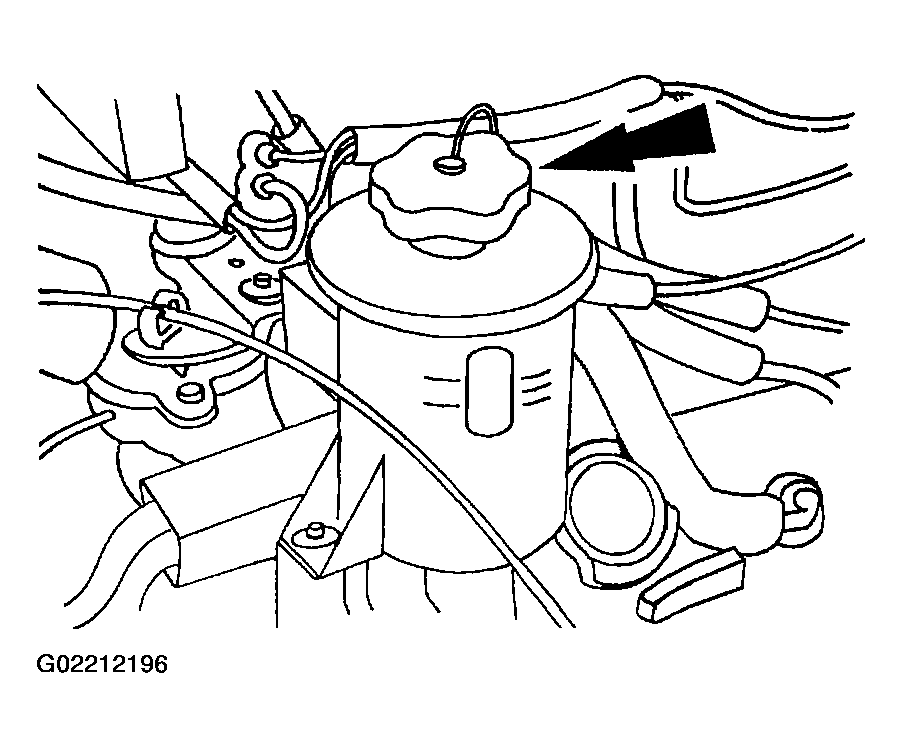

- Fill the power steering fluid reservoir.
- Use MERCON Multi-Purpose Automatic Transmission Fluid, XT-2-QDX or equivalent MERCON approved fluid.
- Raise the front wheels off the ground.
- Turn the steering wheel from stop to stop while cranking the engine until the fluid exiting the extension hose is clean.
- Disconnect the extension hose from the power steering return hose and attach the power steering return hose to the power steering fluid reservoir.

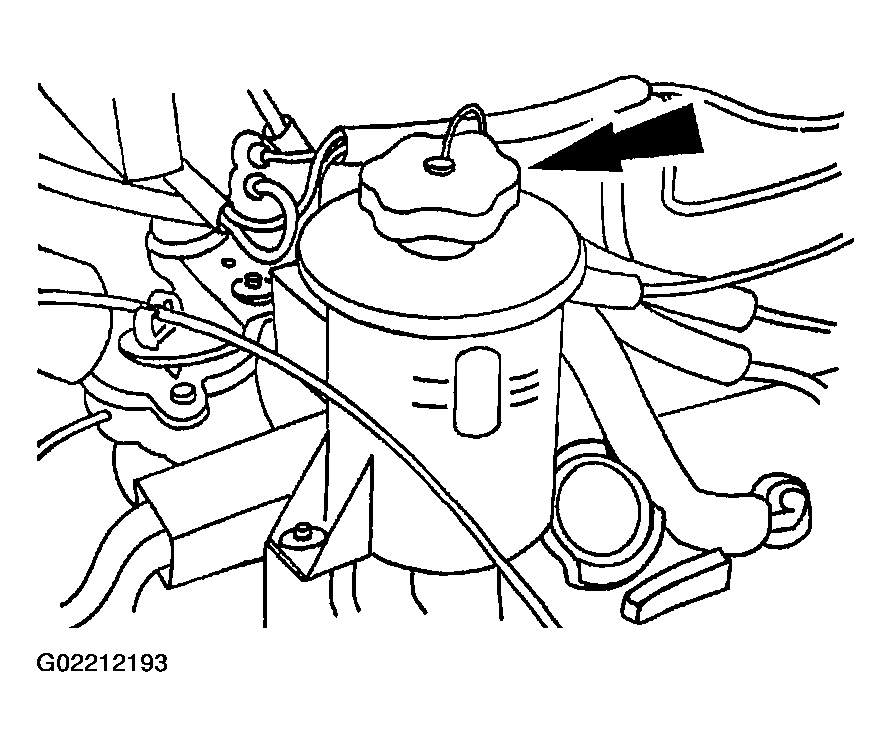

- Fill the power steering fluid reservoir.
- Use MERCON Multi-Purpose Automatic Transmission Fluid, XT-2-QDX or equivalent MERCON approved fluid.
- Install the ignition coil fuse.
- Start the engine and turn the steering wheel from stop to stop.
- Check the power steering fluid level.
- Clear diagnostic trouble codes (DTCs). For additional information, refer to CLEARING CODES .
CAUTION:
Do not operate the starter motor for more than 10 seconds at a time. Damage to the starter motor could result.
NOTE:
Do not overfill the power steering fluid reservoir.
CAUTION:
Do not hold the steering wheel against the stops for more than three to five seconds at a time. Damage to the power steering pump will occur.
NOTE:
If power steering is noisy and accompanied by aerated fluid, it will be necessary to purge the power steering system; refer to PURGING .
