Navigation Module: Service and Repair

NAVIGATION SYSTEM MODULE

REMOVAL

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

NOTE: Prior to removal of the navigation system module, it is necessary to remove the digital versatile disc (DVD) from the navigation system module and store it in the customer case.

1. Disconnect the battery ground cable.
2. Remove the third row child safety seat tether anchor.


3. NOTE: The navigation system module assembly must be pulled straight back out of the floor panel before positioning aside.

Position the navigation system module assembly aside.

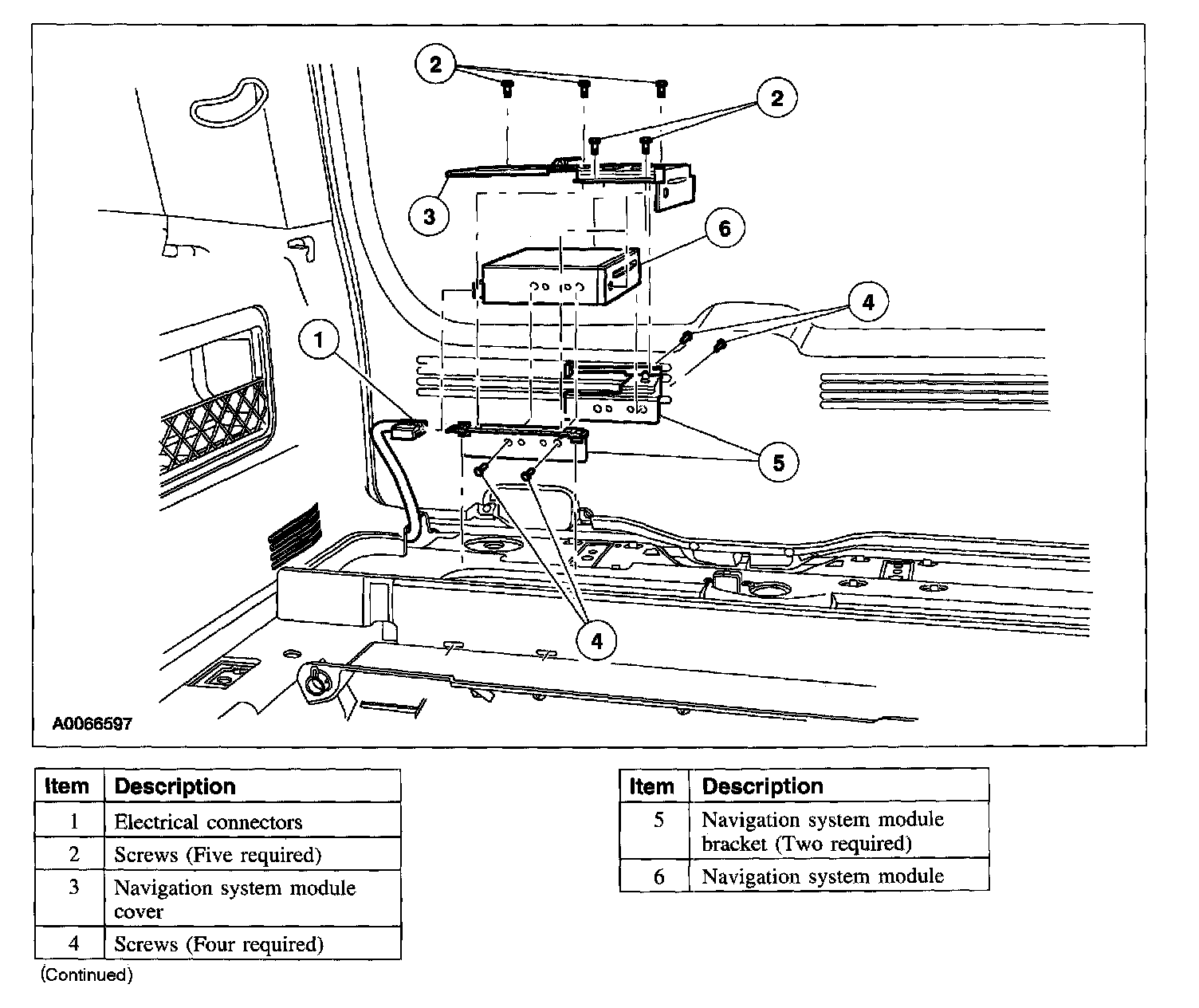

4. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
