Vehicle Security Module C3008F

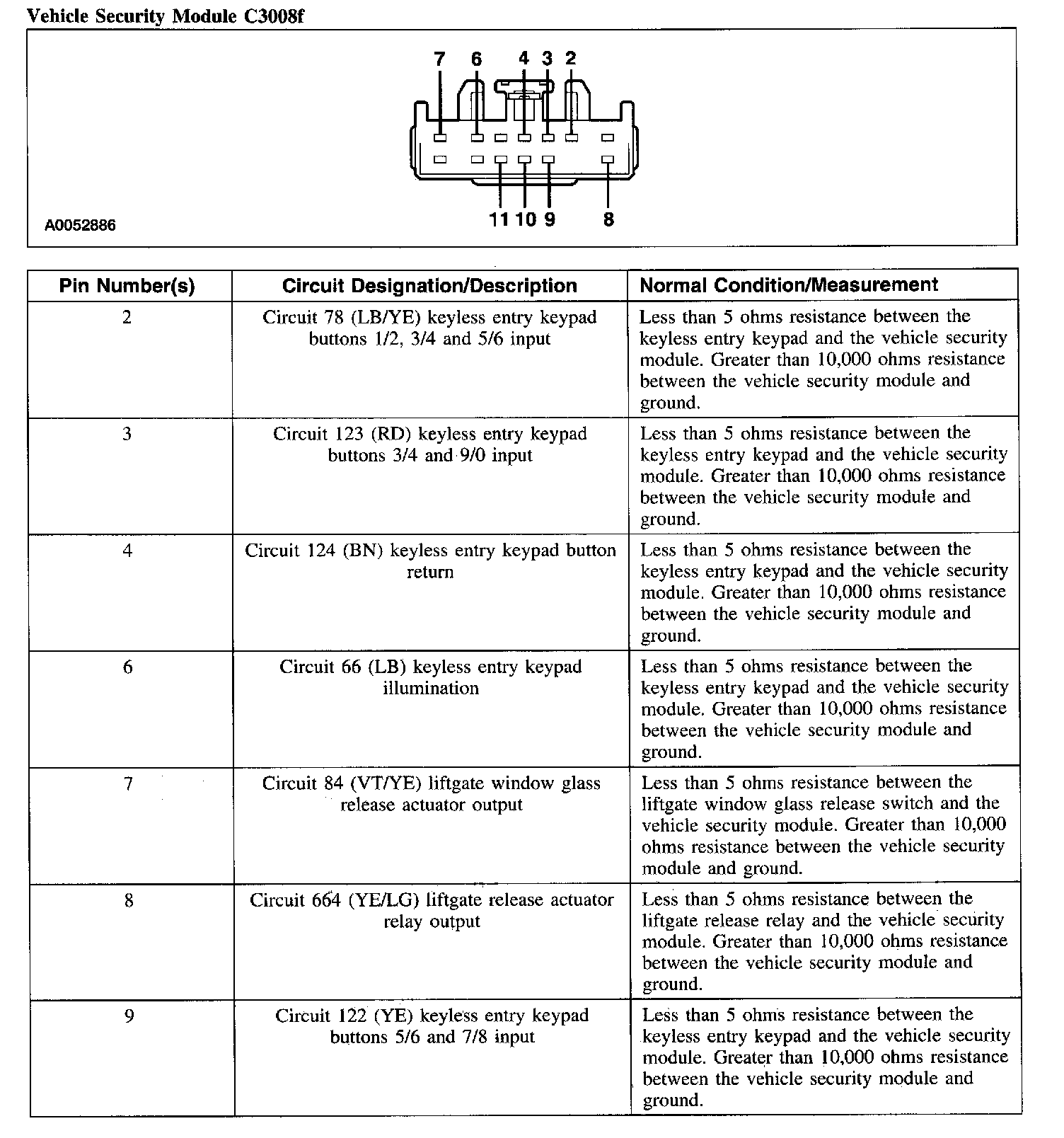

Vehicle Security Module C3008f, Part 1:



Vehicle Security Module C3008f, Part 2:
