Automatic Transmission/Transaxle

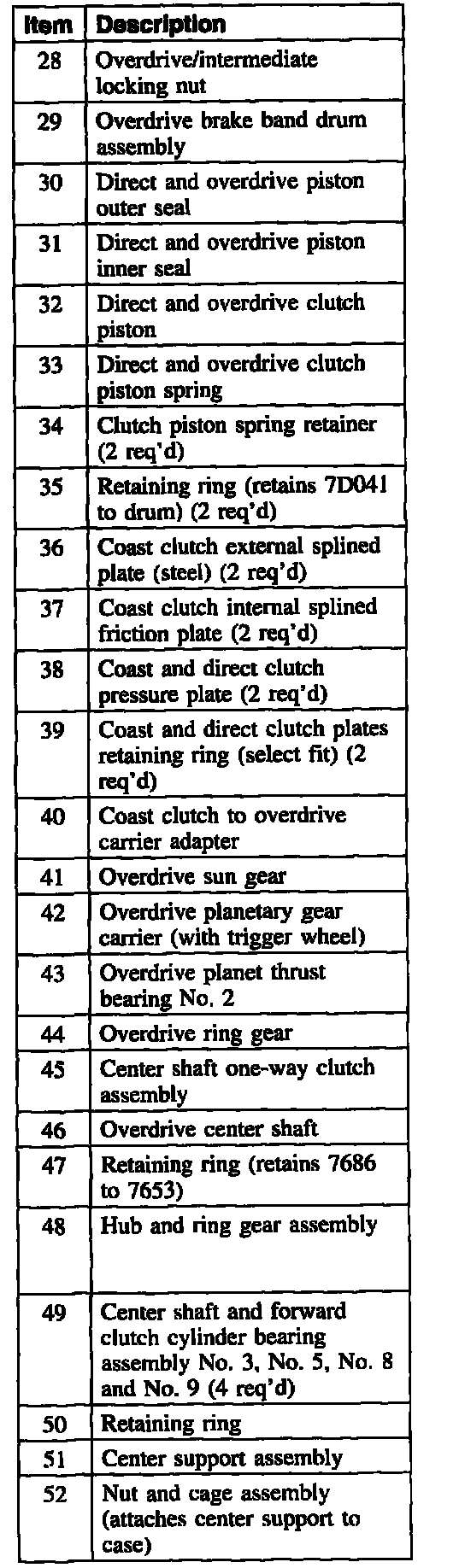

Disassembled Views

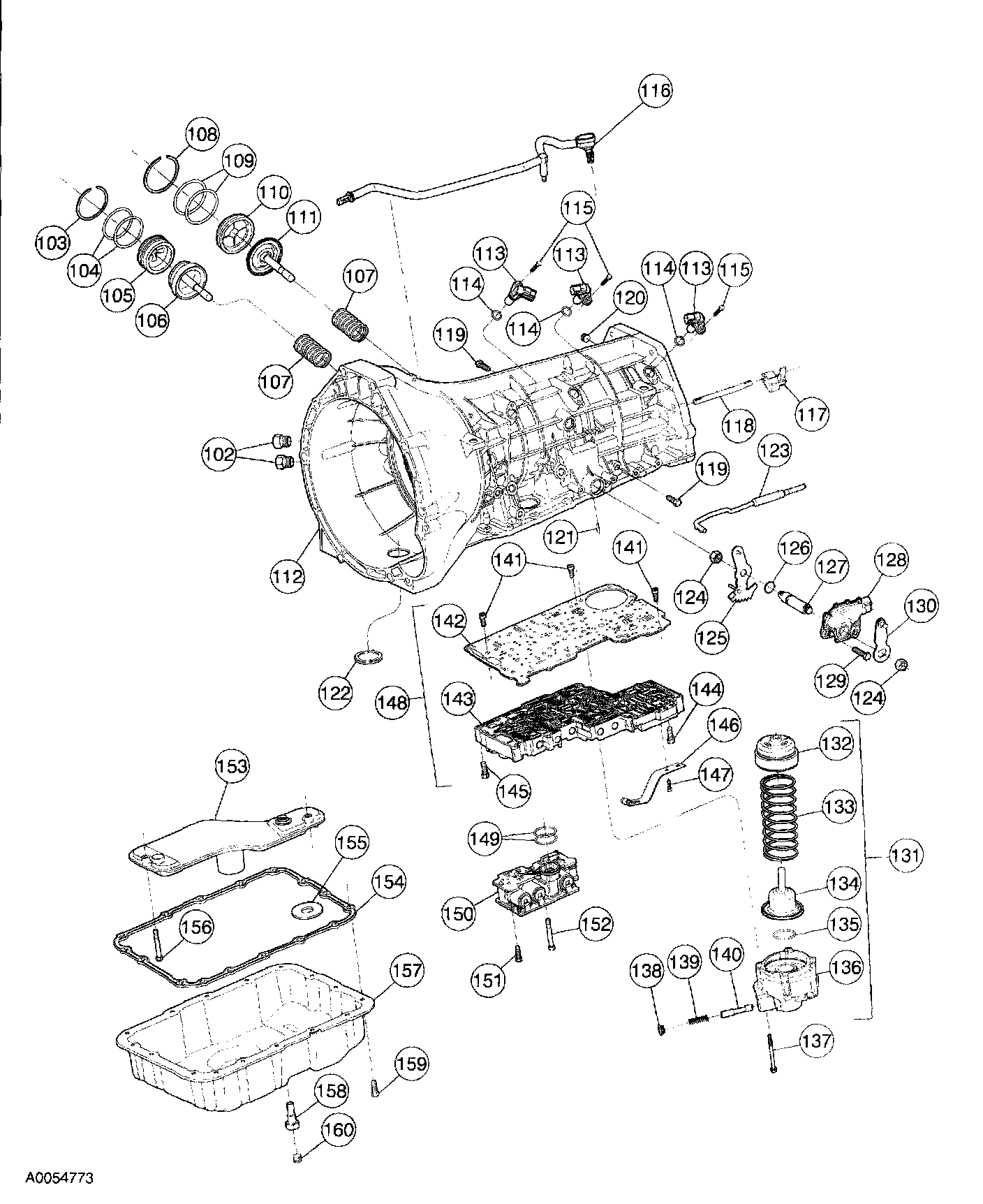

Part 1 Of 9:

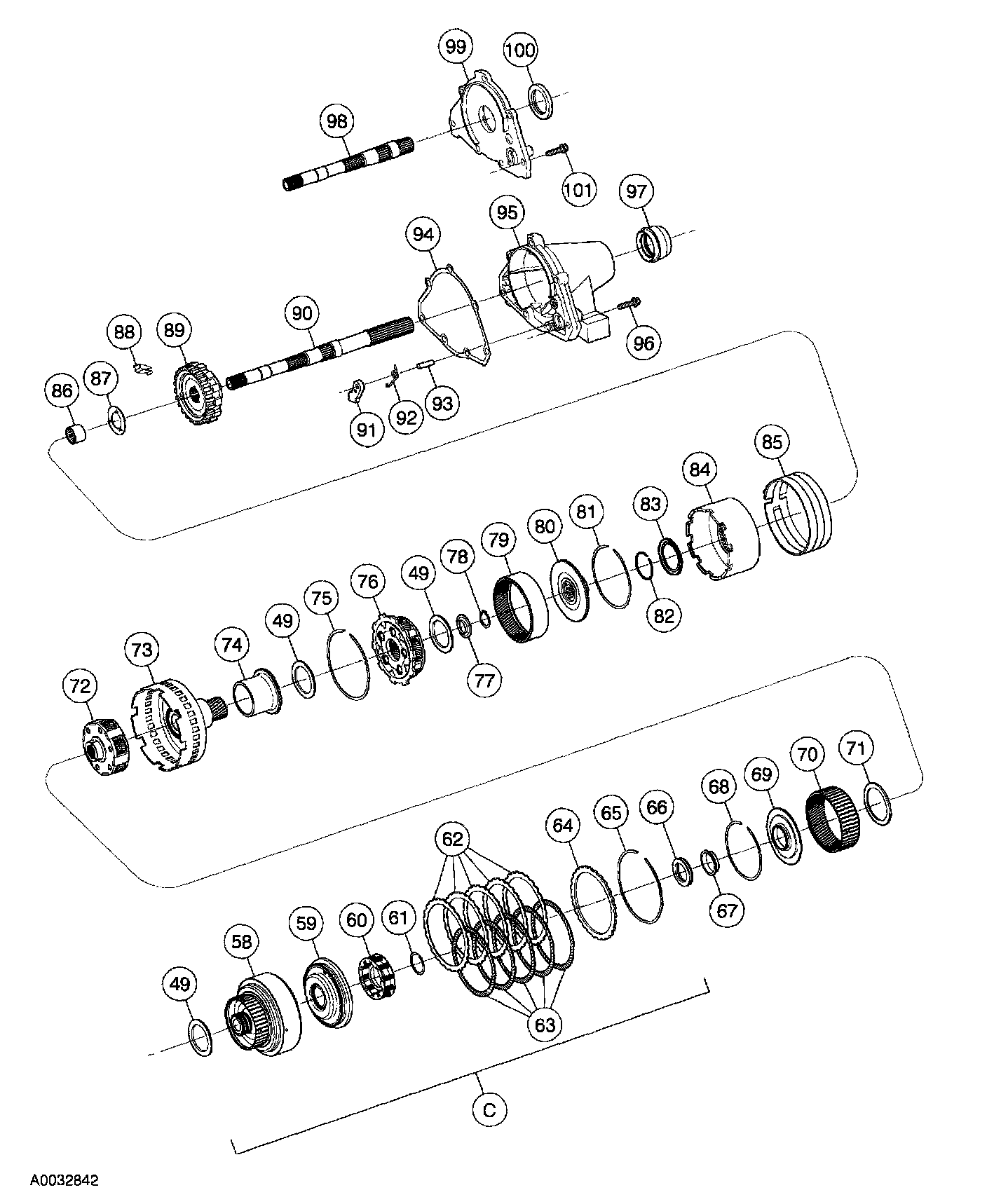

Part 2 Of 9:

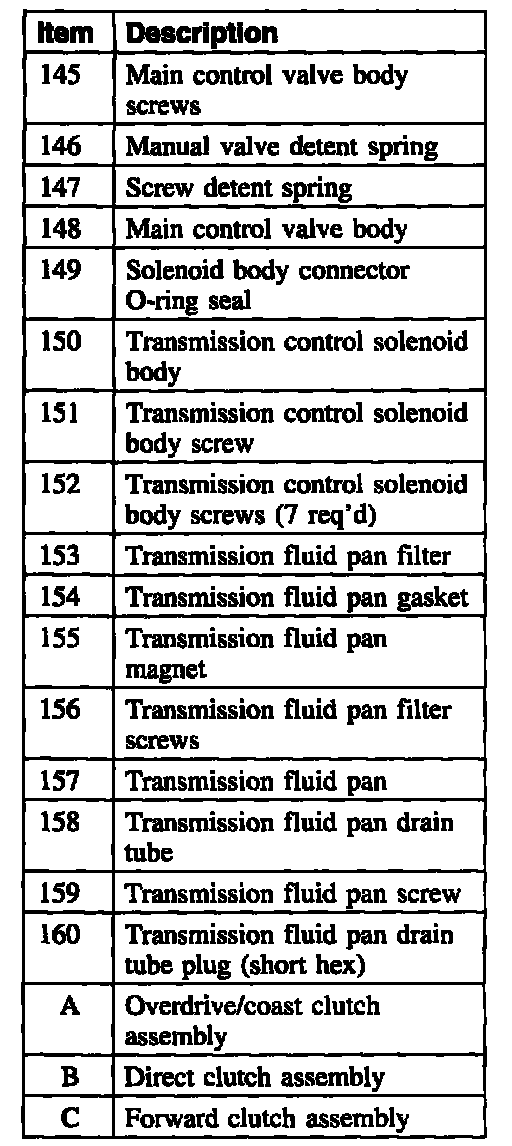

Part 3 Of 9:

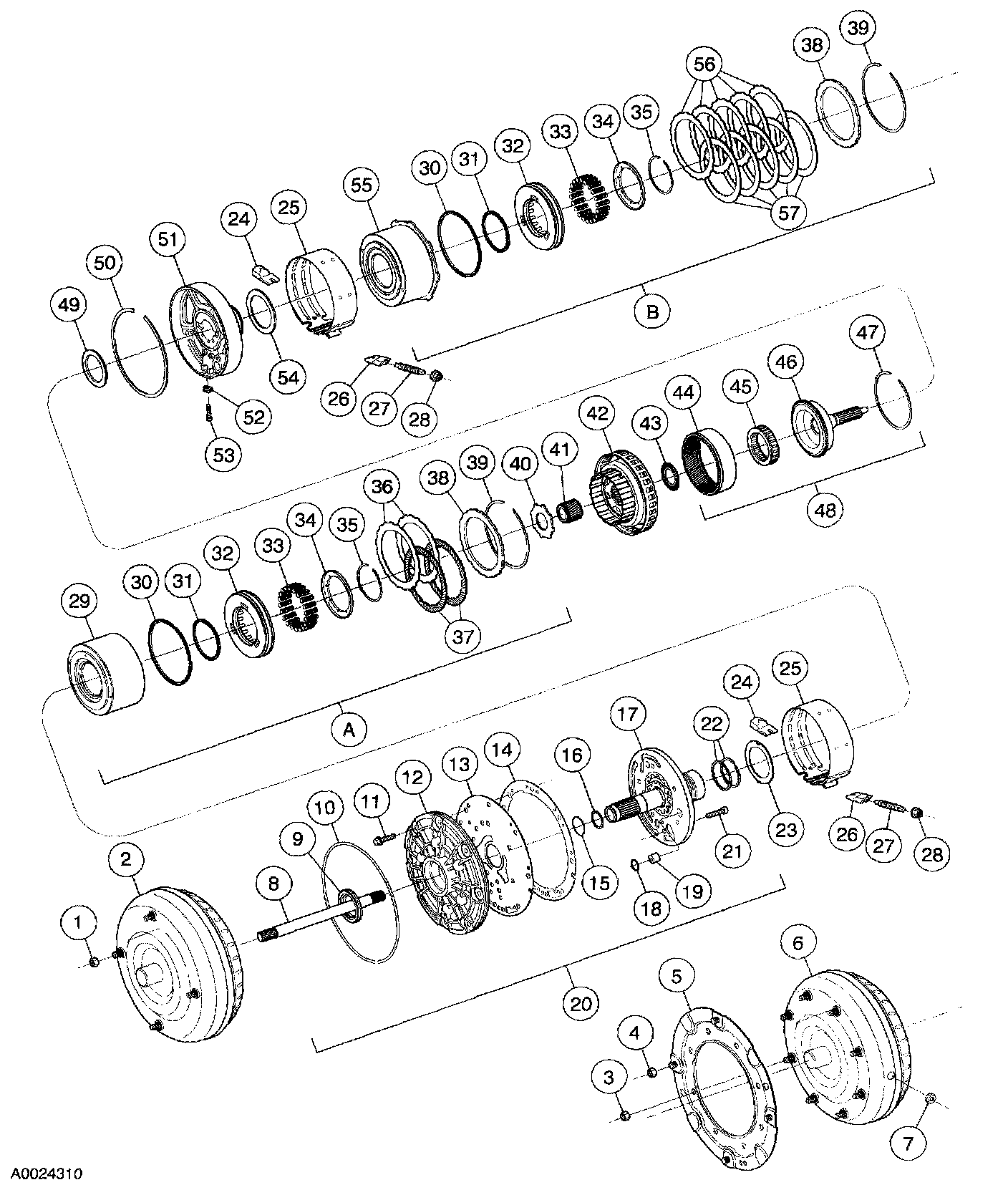

Part 4 Of 9:

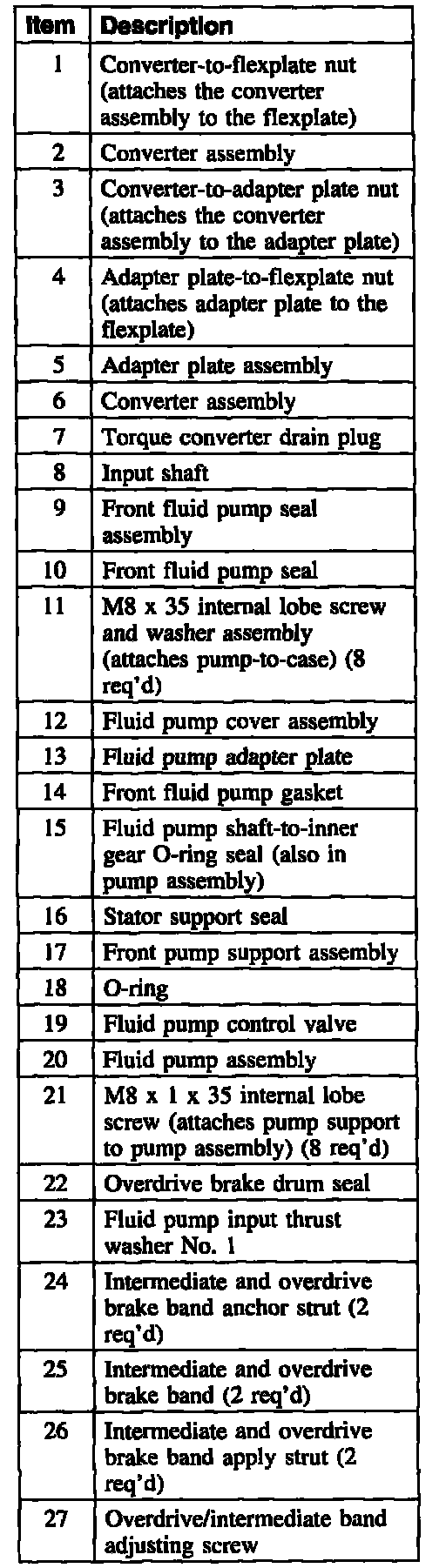

Part 5 Of 9:

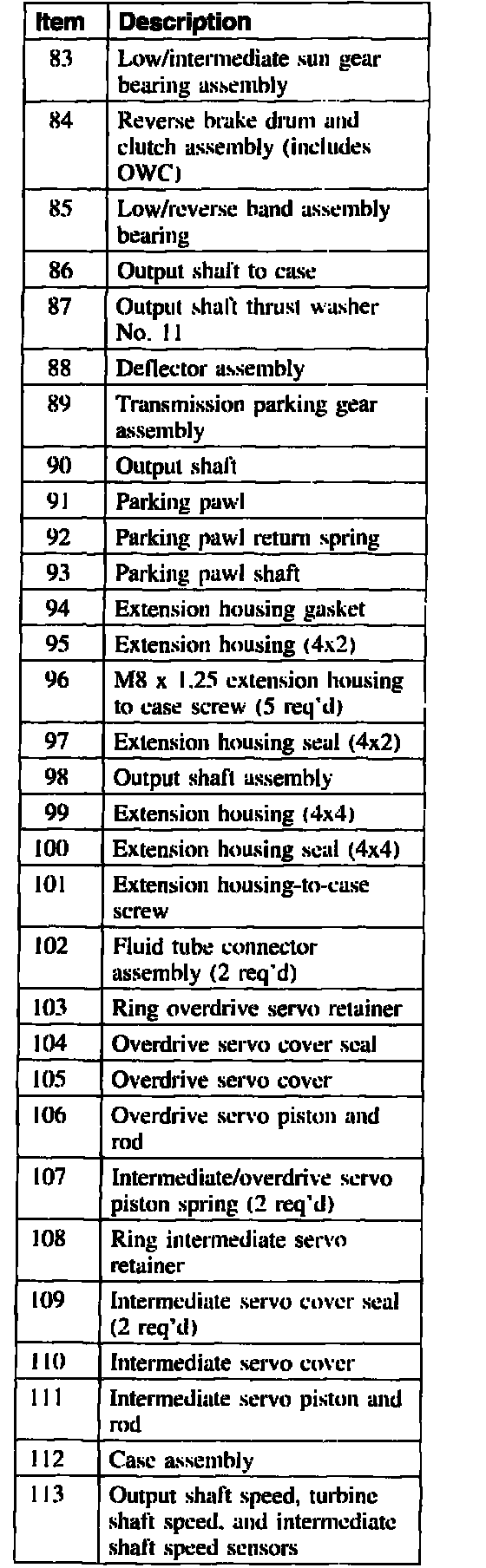

Part 6 Of 9:

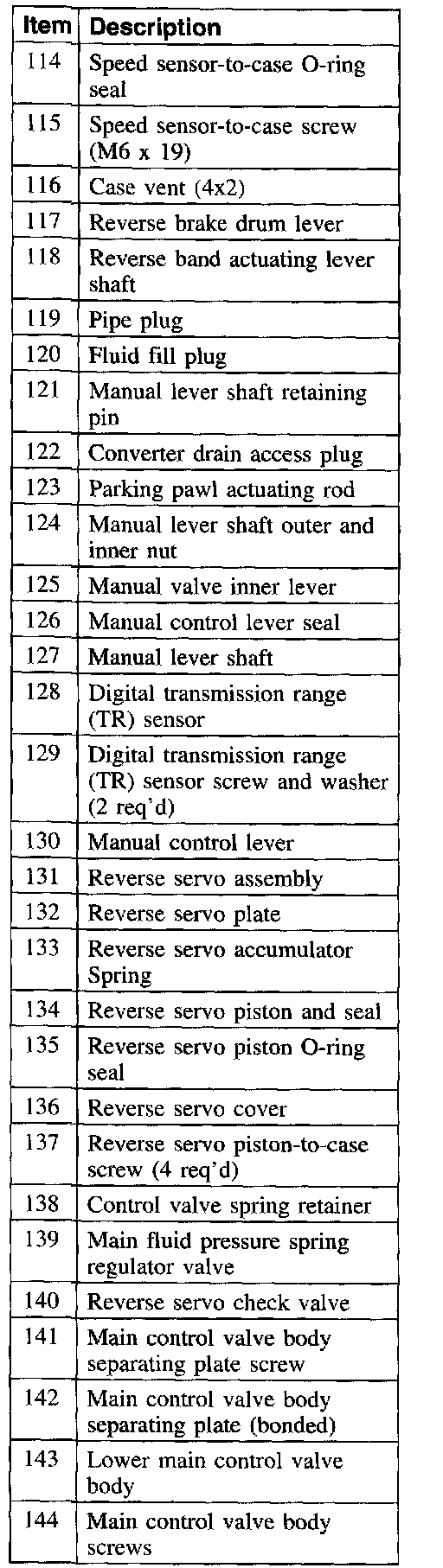

Part 7 Of 9:

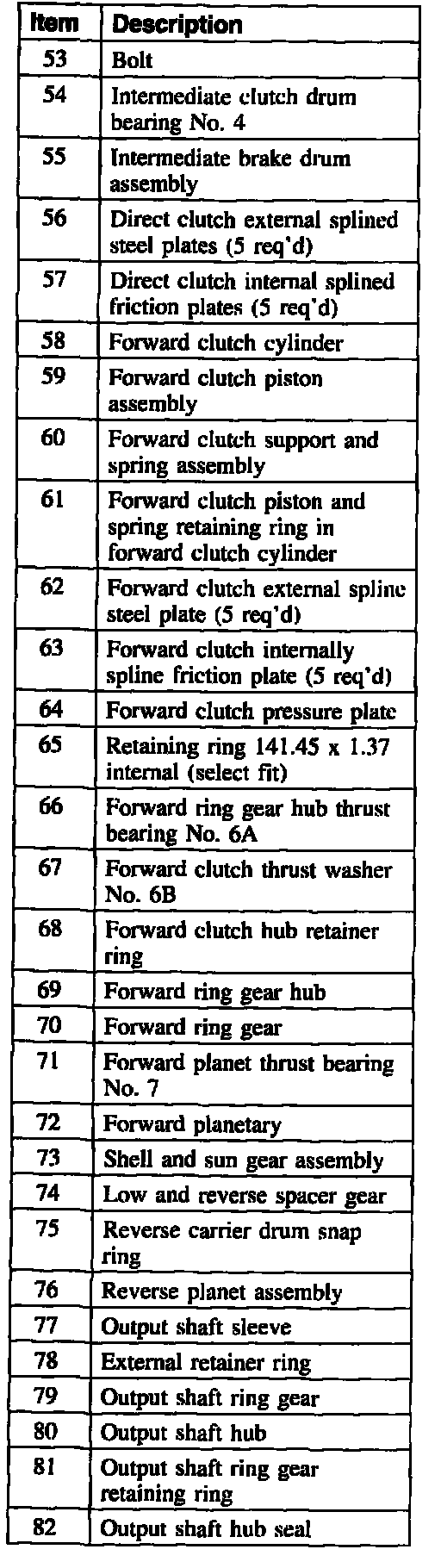

Part 8 Of 9:




Part 9 Of 9:
