Camshaft Position Sensor: Service and Repair

CAMSHAFT POSITION (CMP) SENSOR

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the engine appearance cover.
3. Remove the power steering reservoir and bracket.

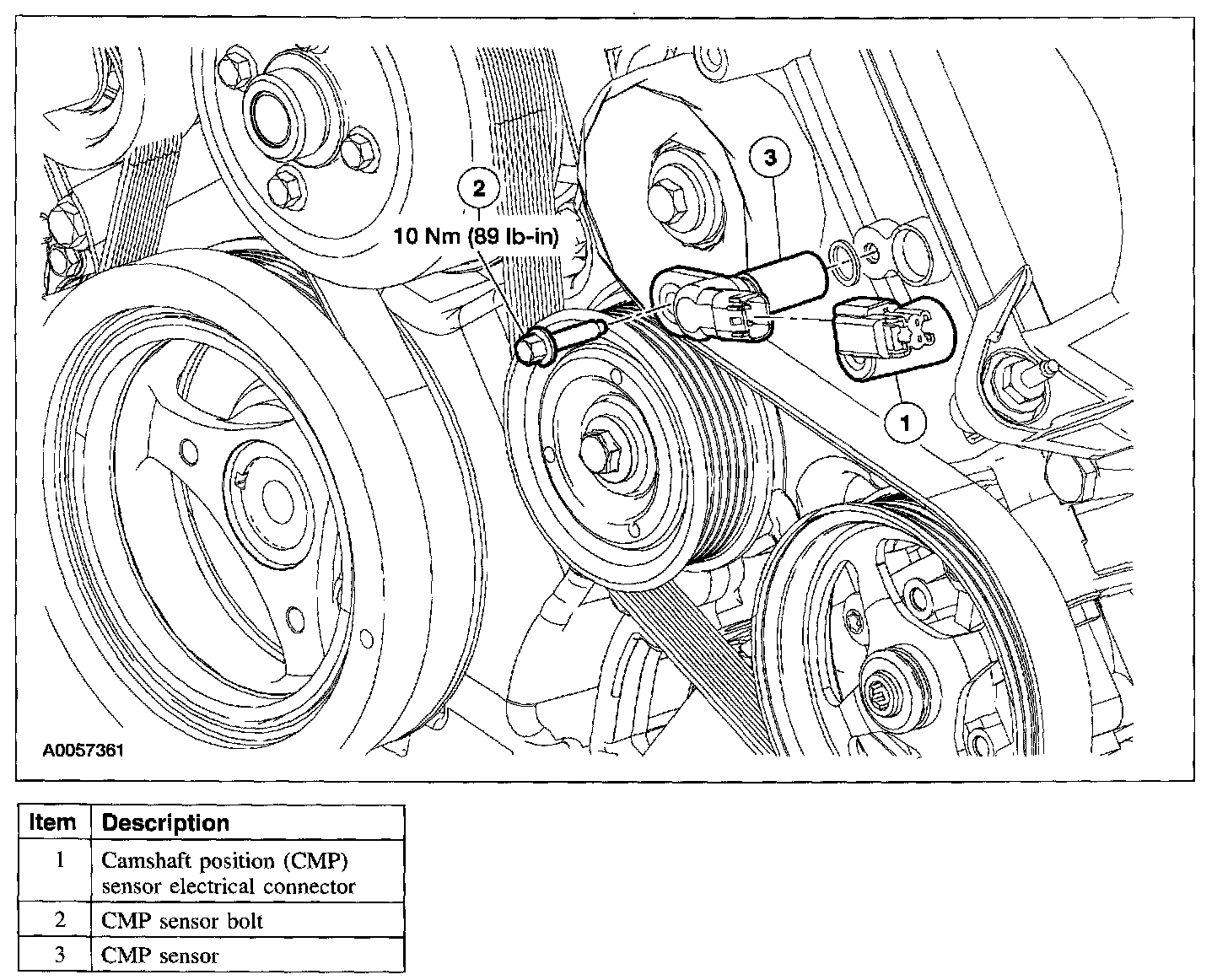

4. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
