Engine Temperature Sensor: Service and Repair

CYLINDER HEAD TEMPERATURE (CHT) SENSOR

REMOVAL
1. With the vehicle in NEUTRAL, position on a hoist.
2. Remove the right front fender splash shield.
3. Remove the front Y-pipe.

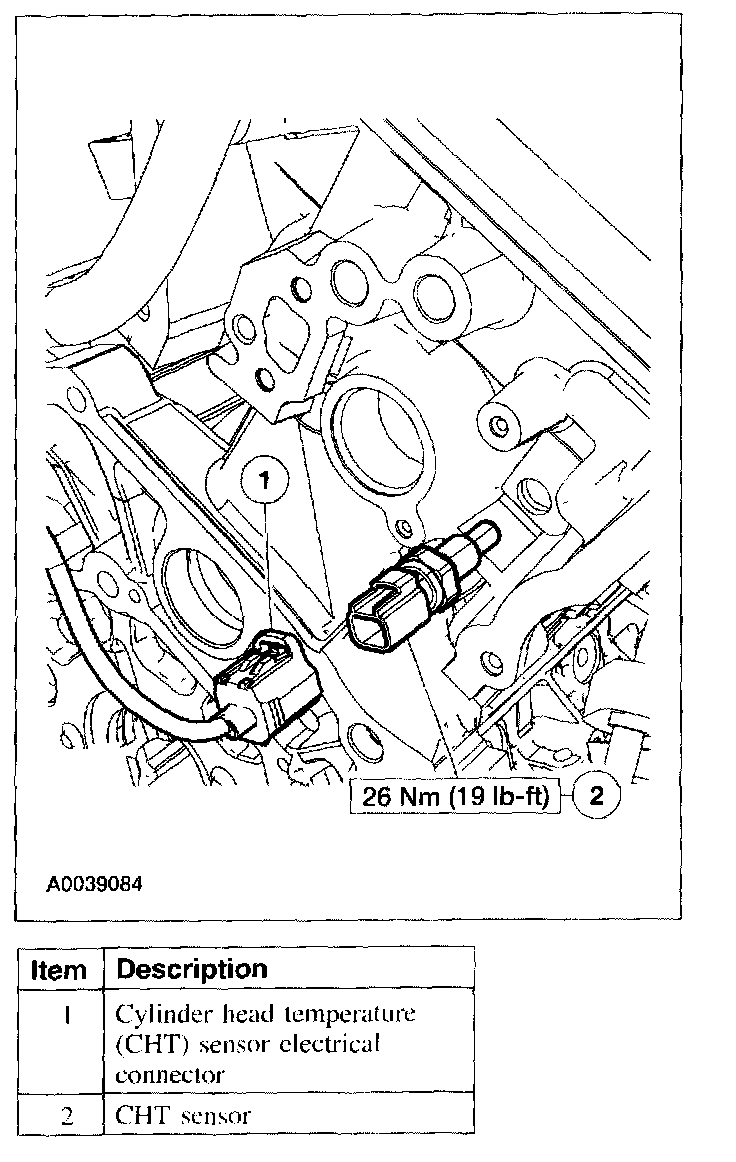

4. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
