Panel Illumination Control Module: Service and Repair

DIMMER MODULE

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the LH quarter trim panel.

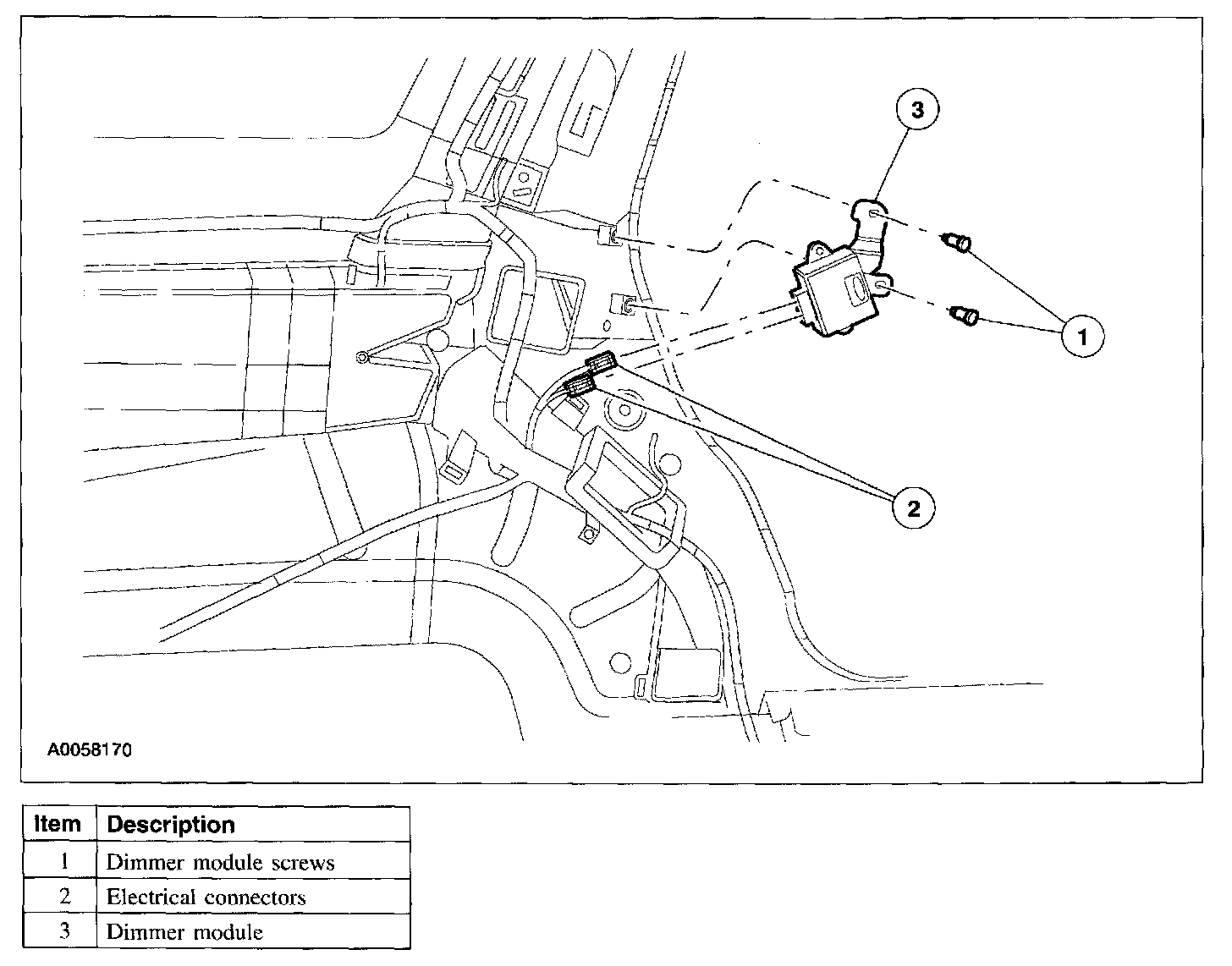

3. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
