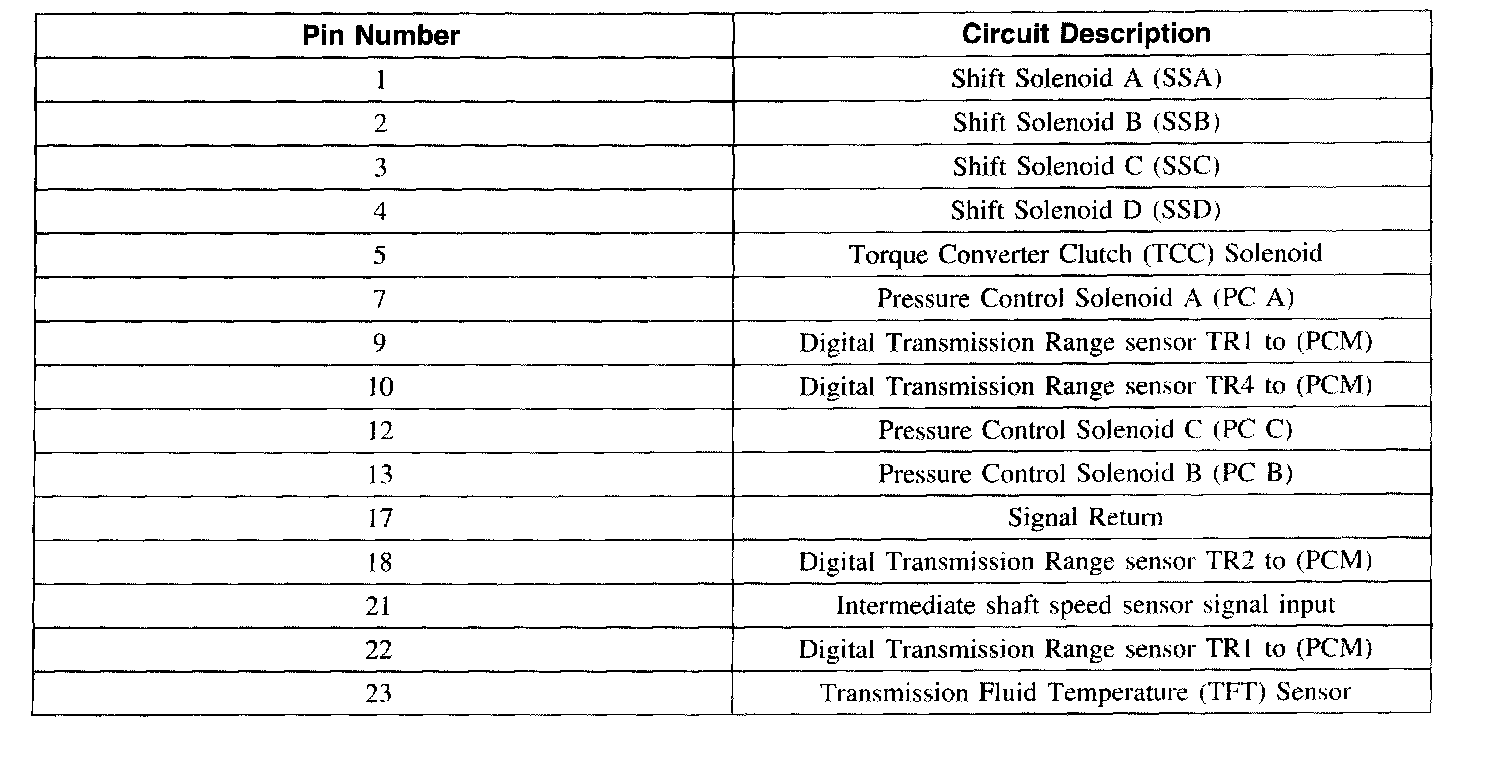

Powertrain Control Module (PCM)
Powertrain Control Module (PCM)
Part 1 Of 3:
Part 2 Of 3:
Part 3 Of 3:
