Multifunction Switch, Lamp Portion

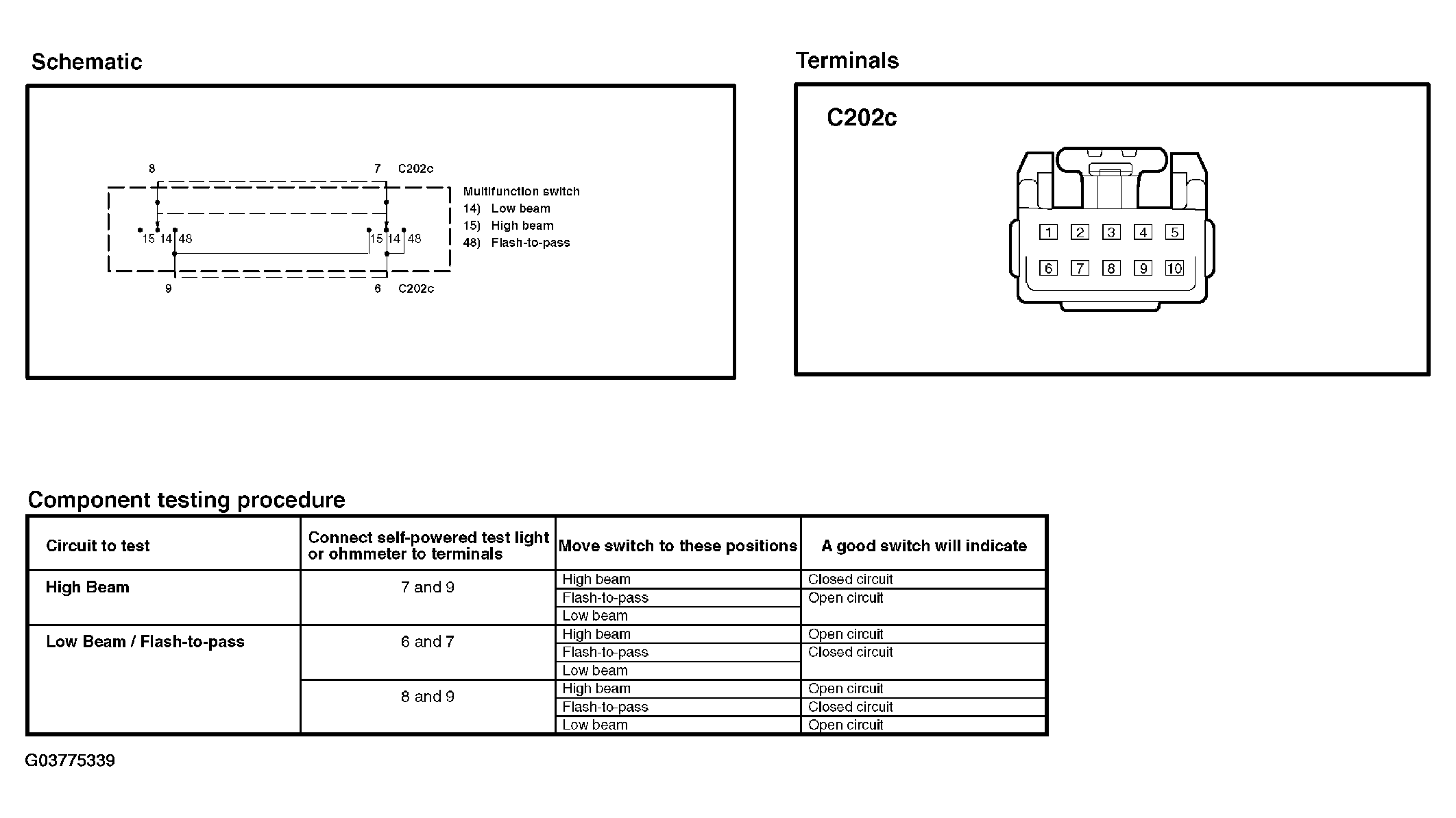

Fig 1: Testing Multifunction Switch - Lamp Portion
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
