Speed Control Cable

1. Remove the components in the order indicated in the following illustration.

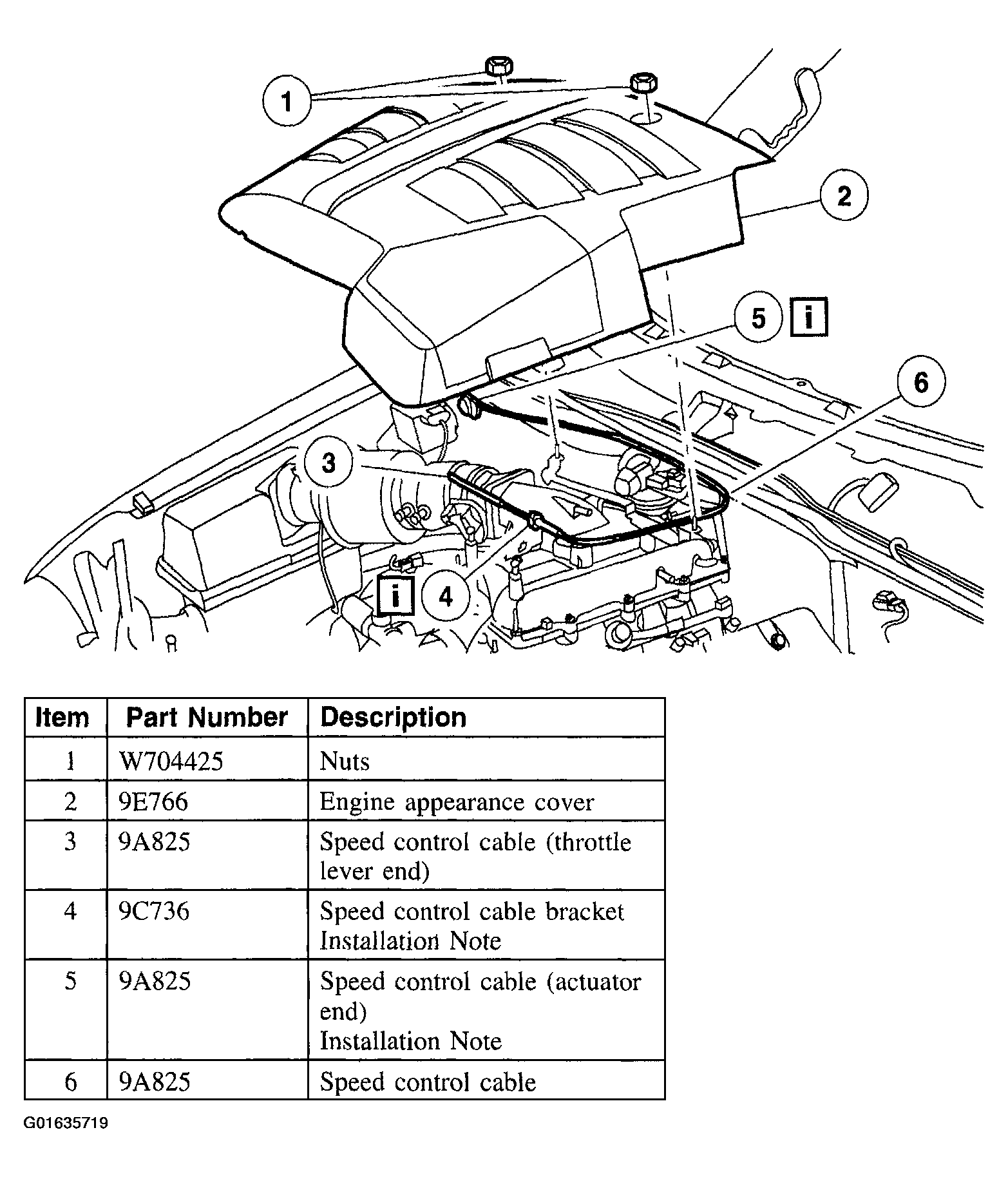

   Fig 1: Removal Sequence Of Speed Control Cable

   Courtesy of FORD MOTOR CO.
2. To install, reverse the removal procedure.

Item 4: Speed Control Cable Bracket Installation Note

1. Make sure the tabs on the speed control cable are locked in place and cable is fully seated in accelerator bracket.

Item 5: Speed Control Cable Installation Note

1. Make sure the rubber seal is fully seated onto the speed control cable cap.
