Cylinder Block Distortion

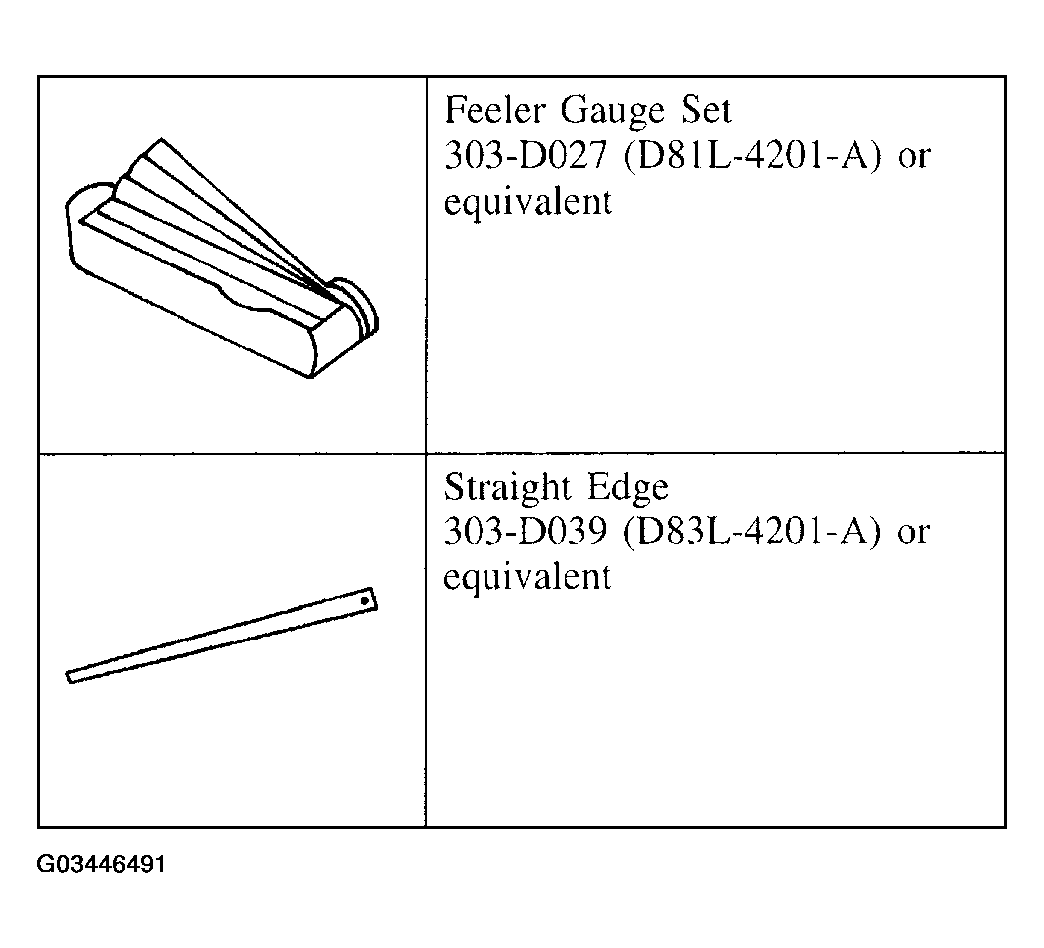

Special Tool(s)

Fig 1: Identifying Special Tool
G03446491Courtesy of FORD MOTOR CO.
  1. Use a straight edge and a feeler gauge to inspect the cylinder block for flatness. If the cylinder block is distorted, install a new short block assembly.

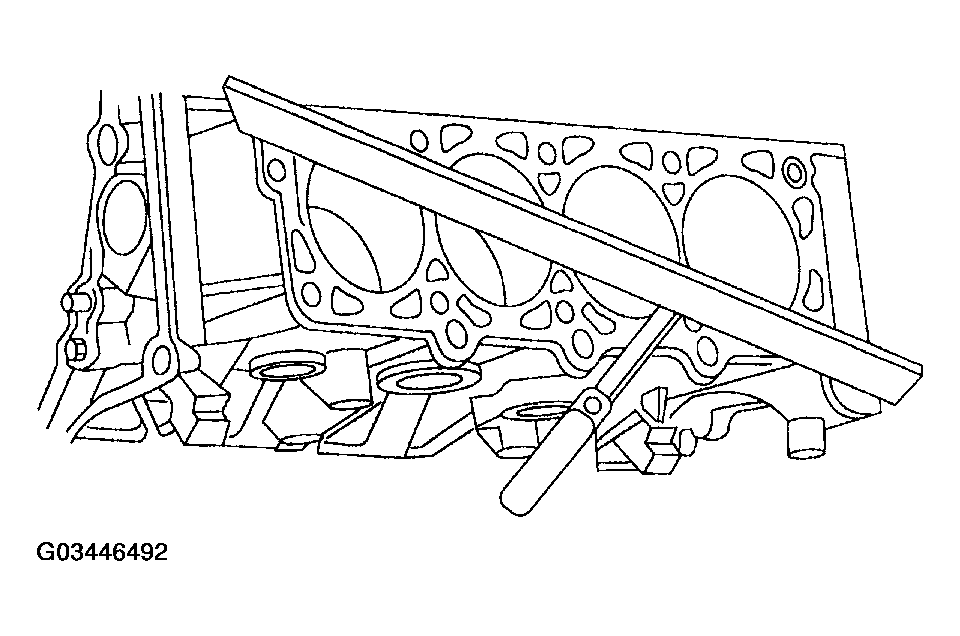

    Fig 2: Inspecting Cylinder Block For Flatness
    G03446492Courtesy of FORD MOTOR CO.
