Steering Column: Assembly

WARNING: This page is about a different car, the 2005 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Install the shift cable bracket and the 2 bolts.

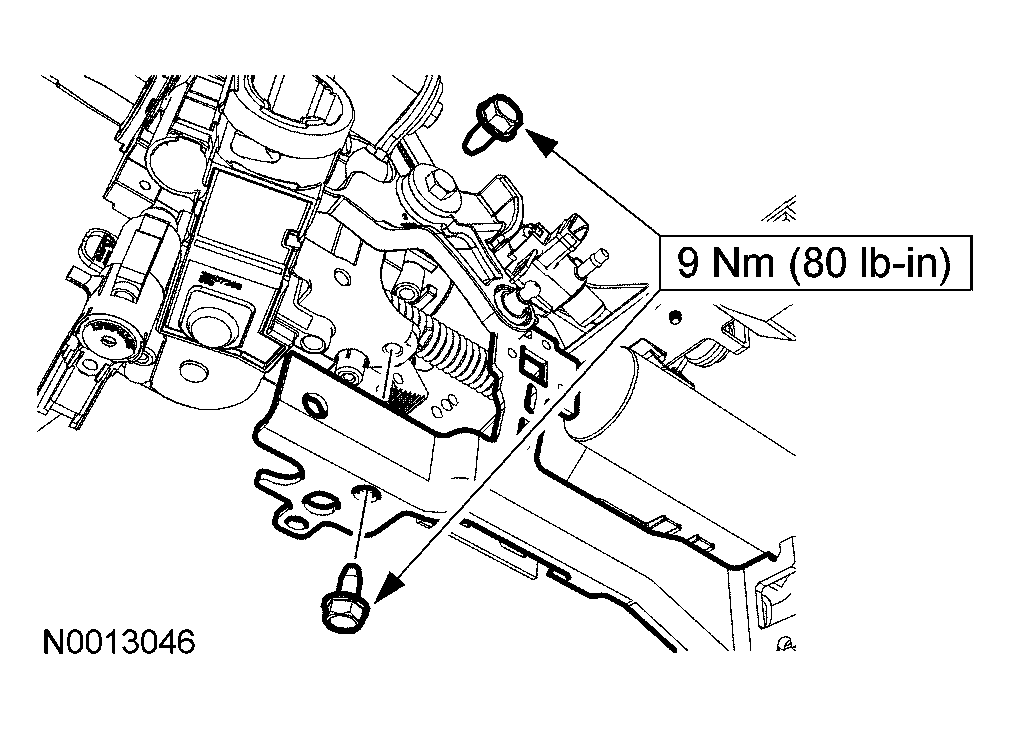

Fig 1: Installing Shift Cable Bracket And 2 Bolts
Courtesy of FORD MOTOR CO.
Install the gearshift lever and the screw.

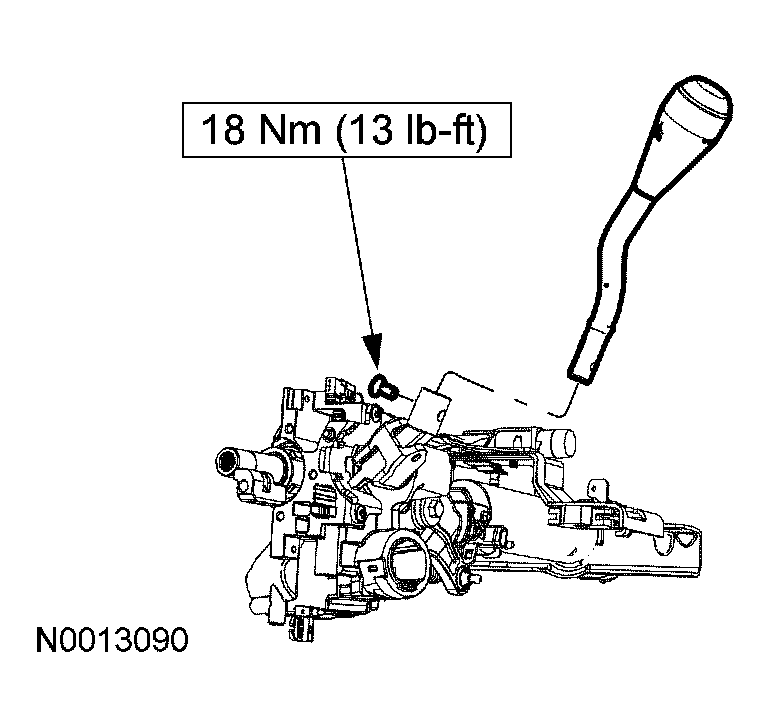

Fig 2: Installing Gearshift Lever And Screw
Courtesy of FORD MOTOR CO.

NOTE: Make sure the pocket in the inhibitor for the brake shift interlock solenoid plunger is free of grease and debris.

NOTE: Place the gear shift lever in the lowest gear position.

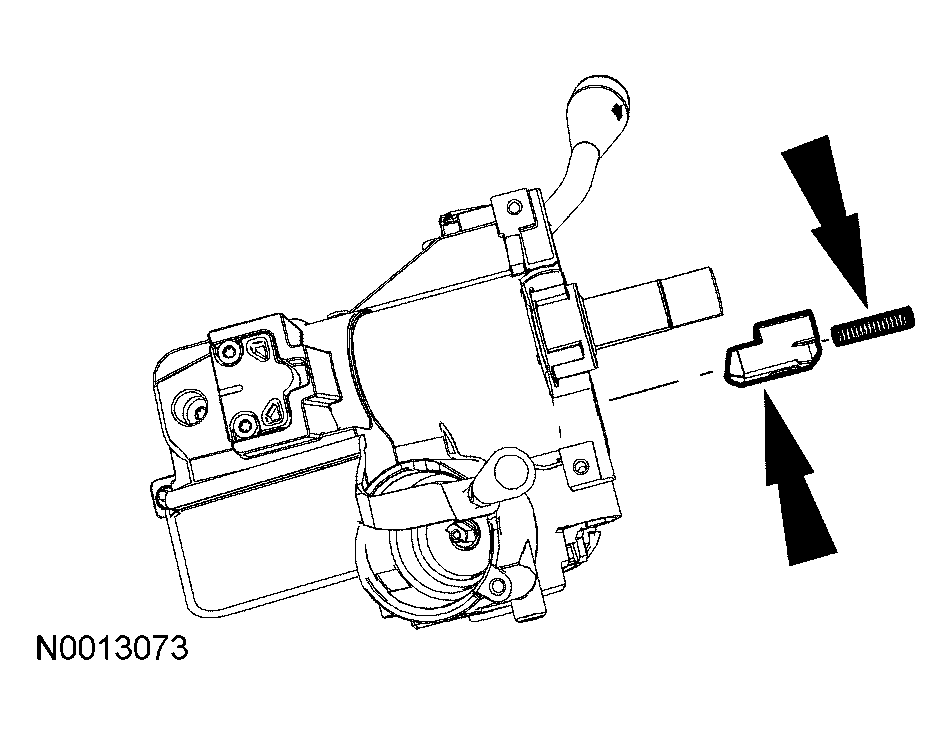

Fig 3: Inserting Inhibitor & Inhibitor Spring

Courtesy of FORD MOTOR CO.

Fully insert the inhibitor into the cavity and install the inhibitor spring.
- Apply grease to the outer surfaces of the inhibitor and in the inhibitor spring pocket.
Install the brake shift interlock solenoid.
- Simultaneously insert the park position switch and the brake shift interlock solenoid.
- Connect the clip.

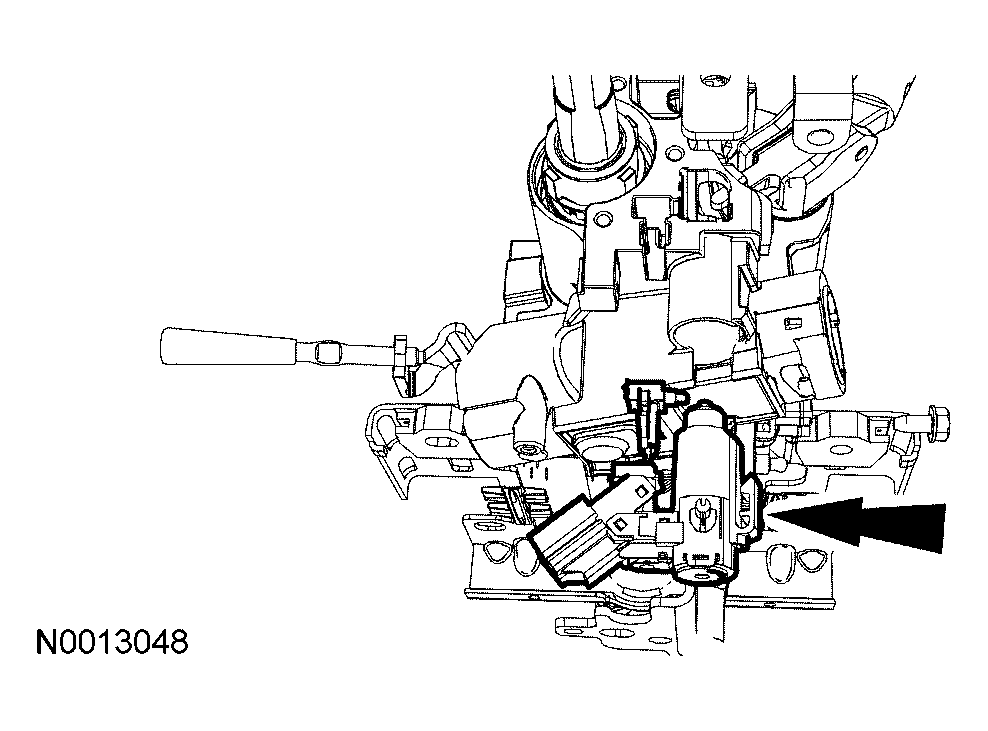

Fig 4: Installing Brake Shift Interlock Solenoid
Courtesy of FORD MOTOR CO.
Install the clockspring mounting bracket and the 3 screws.

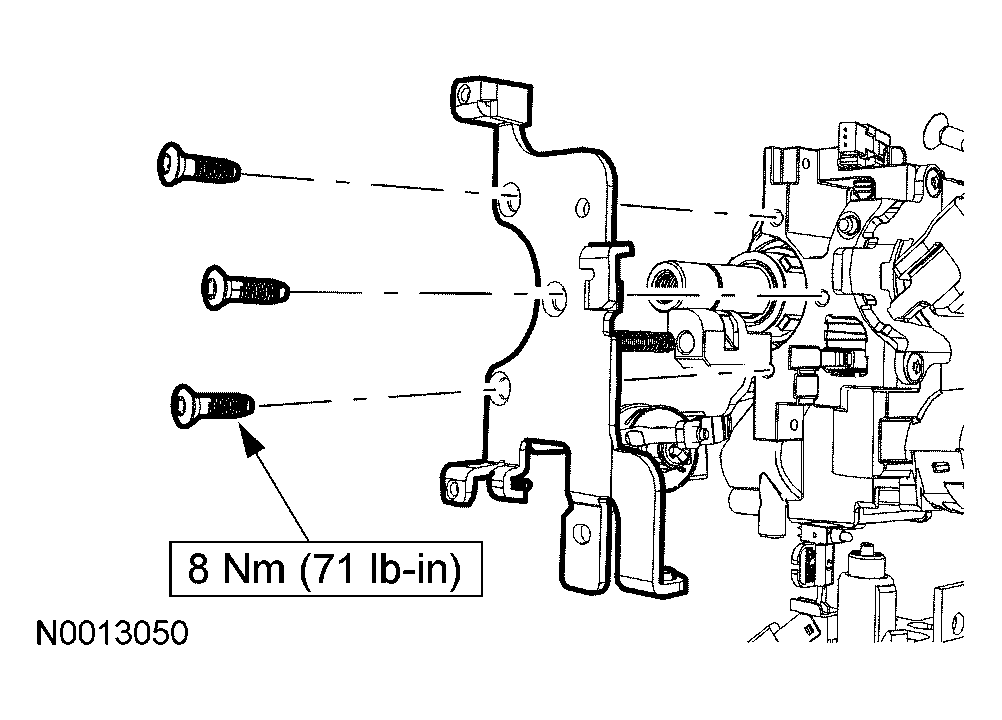

Fig 5: Installing Clockspring Mounting Bracket And 3 Screws
Courtesy of FORD MOTOR CO.

NOTE: Place the ignition key in the OFF position.

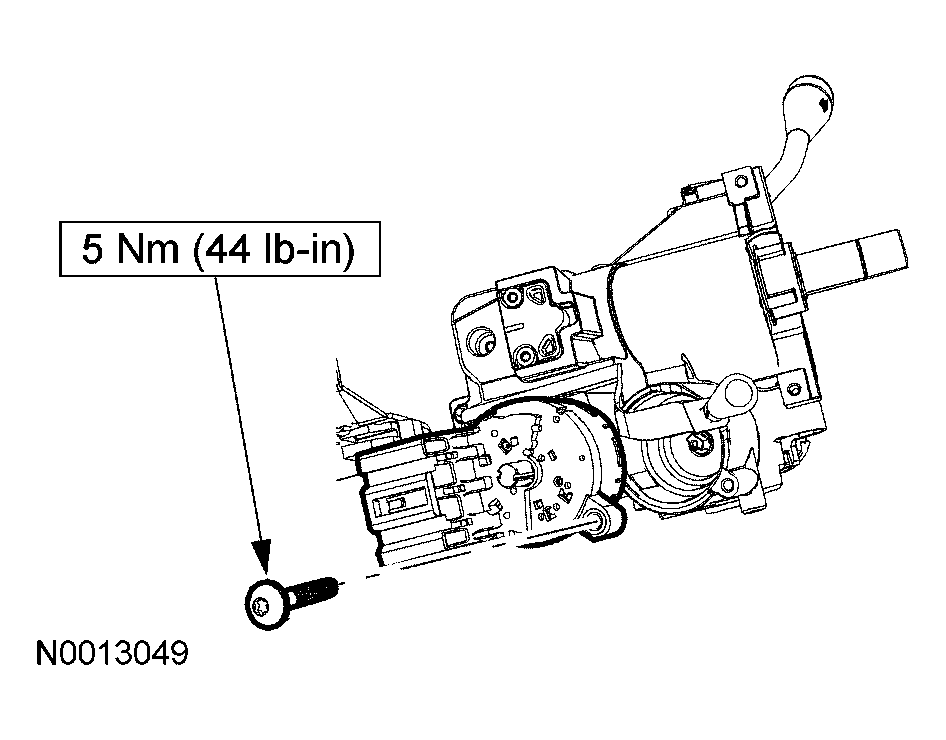

Fig 6: Installing Ignition Switch And Screw

Courtesy of FORD MOTOR CO.

Install the ignition switch and the screw.
Install the multifunction switch. For additional information, Refer to STEERING COLUMN SWITCHES .
Install the clockspring. For additional information, Refer to SUPPLEMENTAL RESTRAINT SYSTEM .
Install the steering wheel. For additional information, refer to STEERING WHEEL .
Install the steering column. For additional information, refer to STEERING COLUMN .
