Steering Column: Notes

WARNING: This page is about a different car, the 2004 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

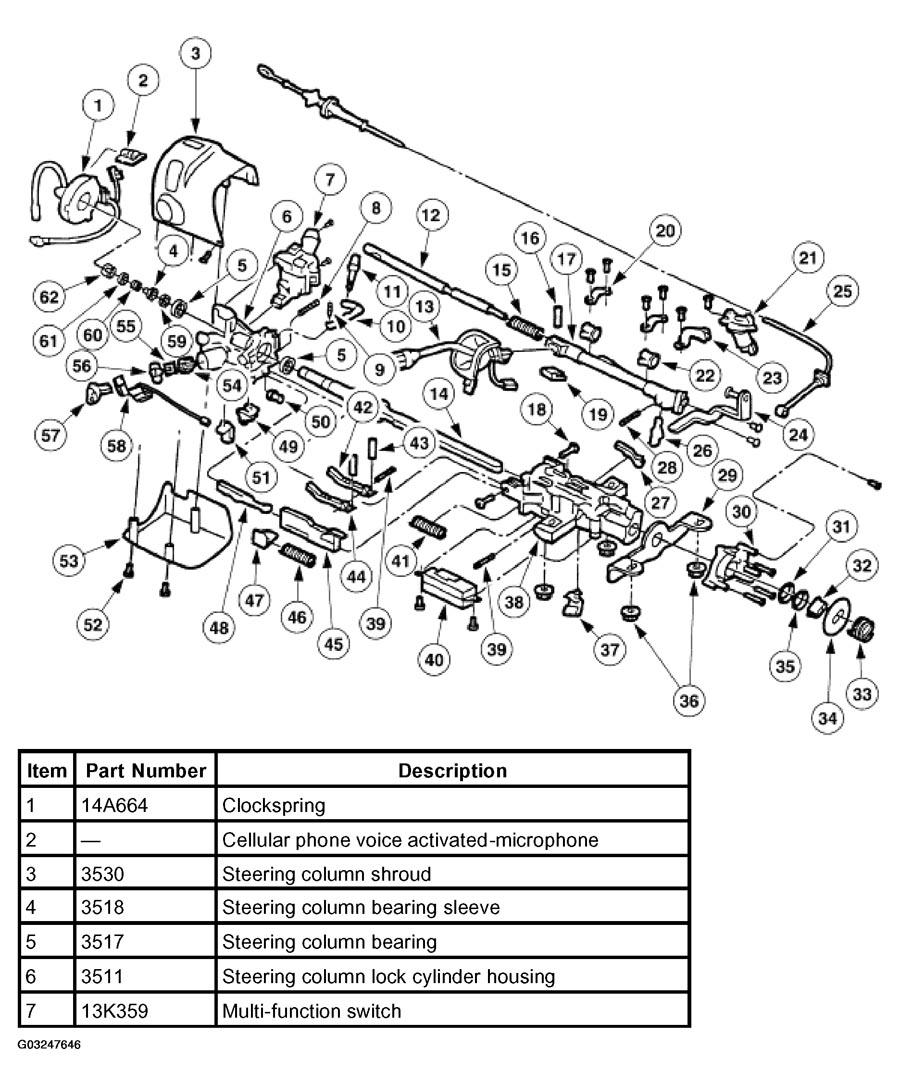

Fig 1: Exploded View Of Steering Column (Items 1-7)
G03247646Courtesy of FORD MOTOR CO.

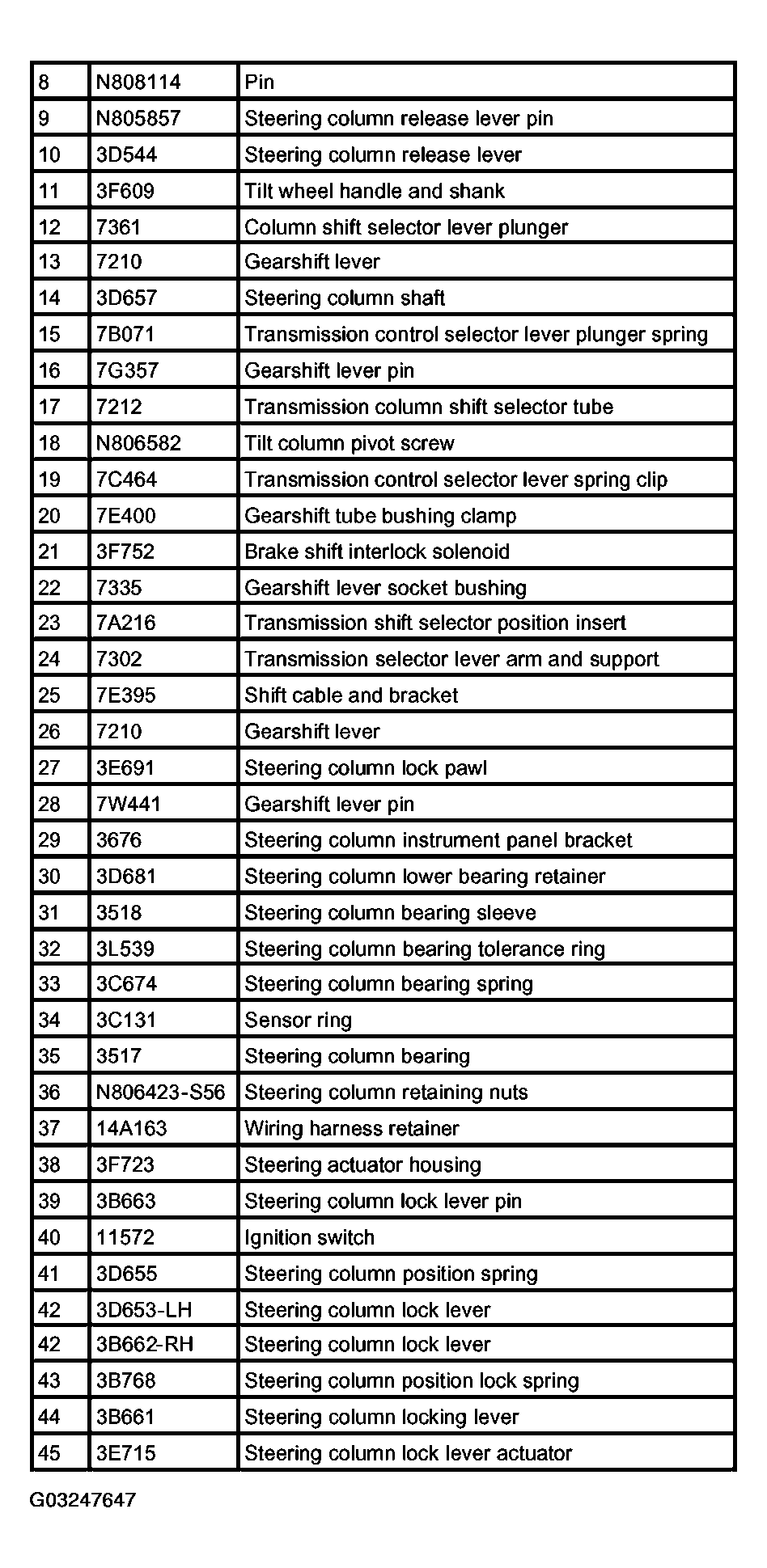

Fig 2: Exploded View Of Steering Column Legend (Items 8-45)
G03247647Courtesy of FORD MOTOR CO.

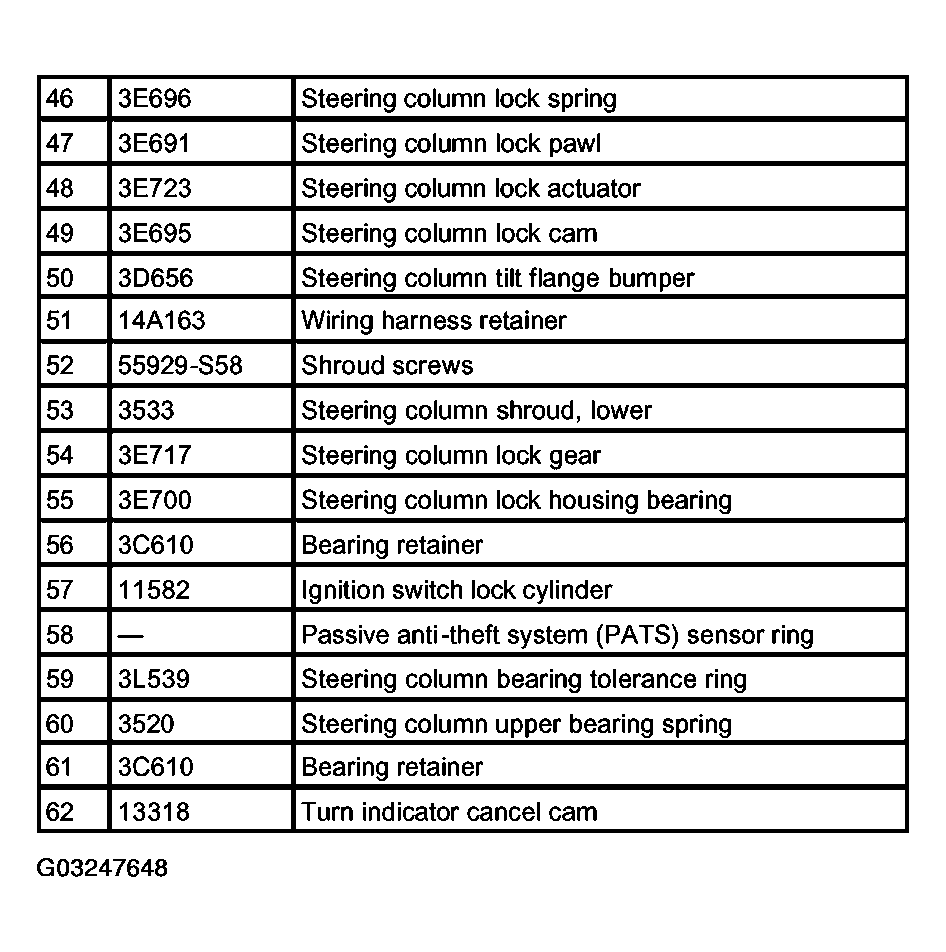

Fig 3: Exploded View Of Steering Column Legend (Items 46-62)
G03247648Courtesy of FORD MOTOR CO.
