Tire Pressure Monitoring System Module

Remove the components in the order indicated in the following illustration.
To install, reverse the removal procedure.

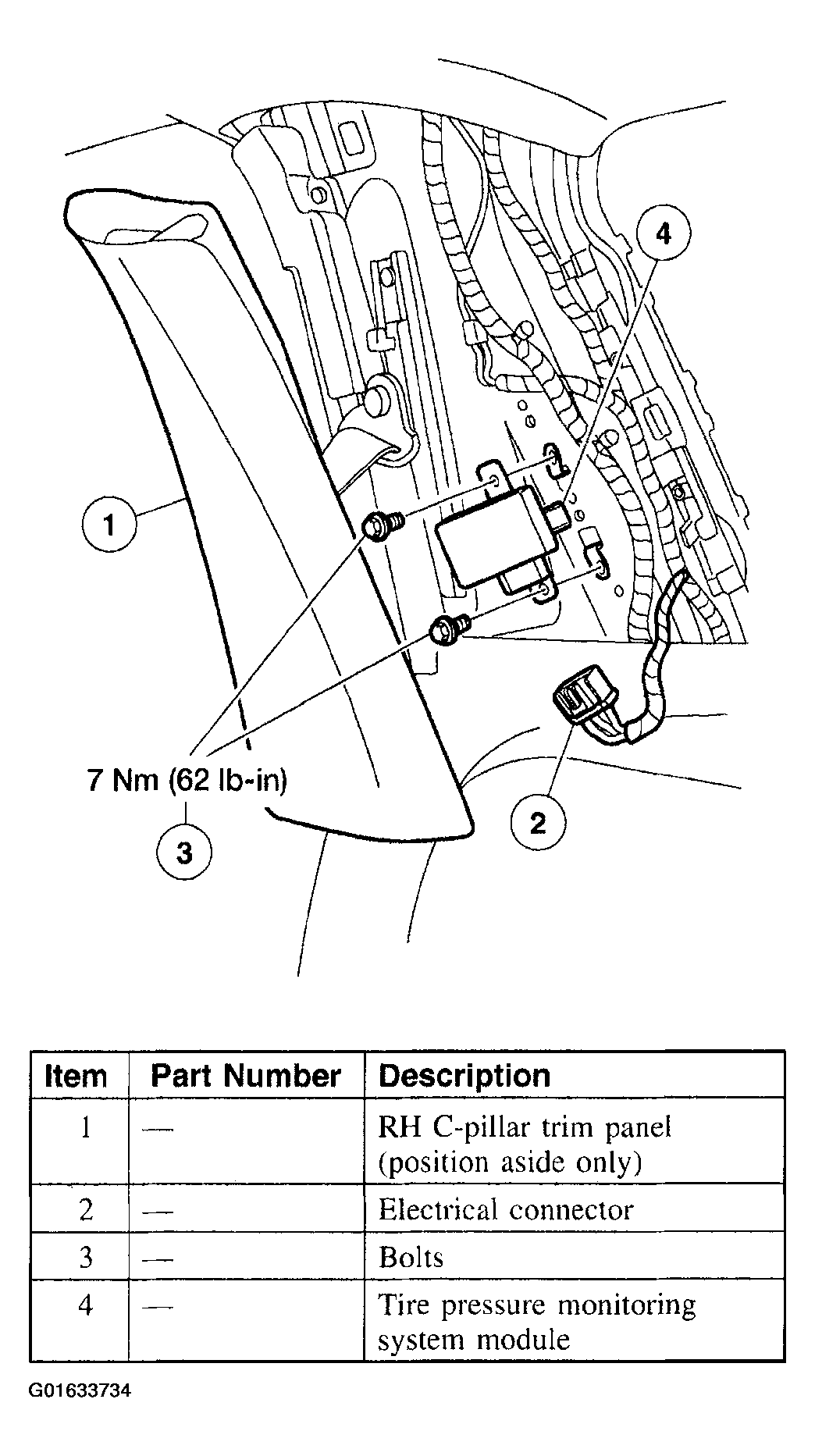

Fig 1: Removal And Installation Tire Pressure Monitoring System Module
Courtesy of FORD MOTOR CO.
Train the tire pressure sensors. For additional information, refer to SENSOR TRAINING .
Reconfigure the module. For additional information refer to MODULE COMMUNICATIONS NETWORK .
