Line Pressure Diagnosis Chart

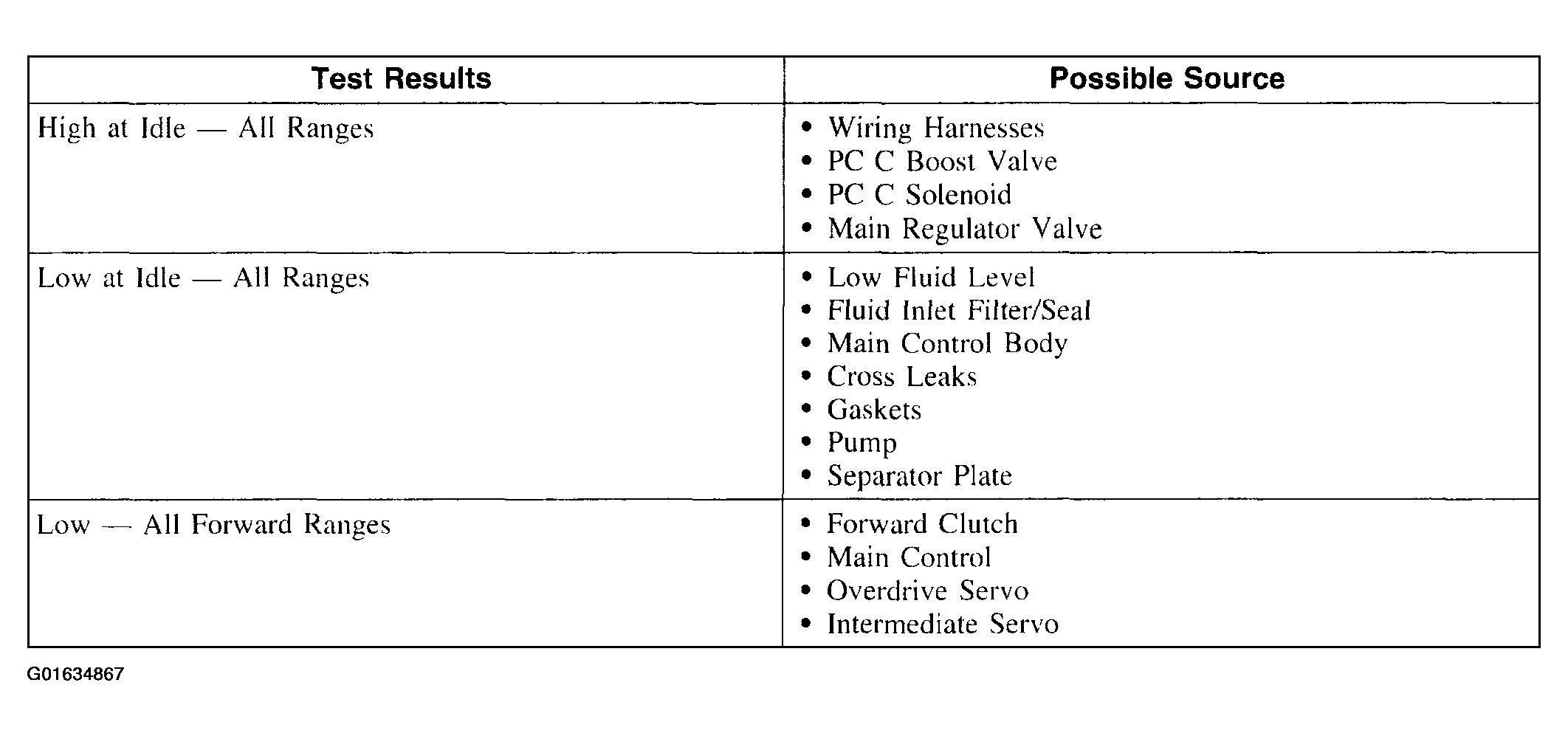

Fig 1: Line Pressure Diagnosis Chart (1 Of 2)
G01634867Courtesy of FORD MOTOR CO.

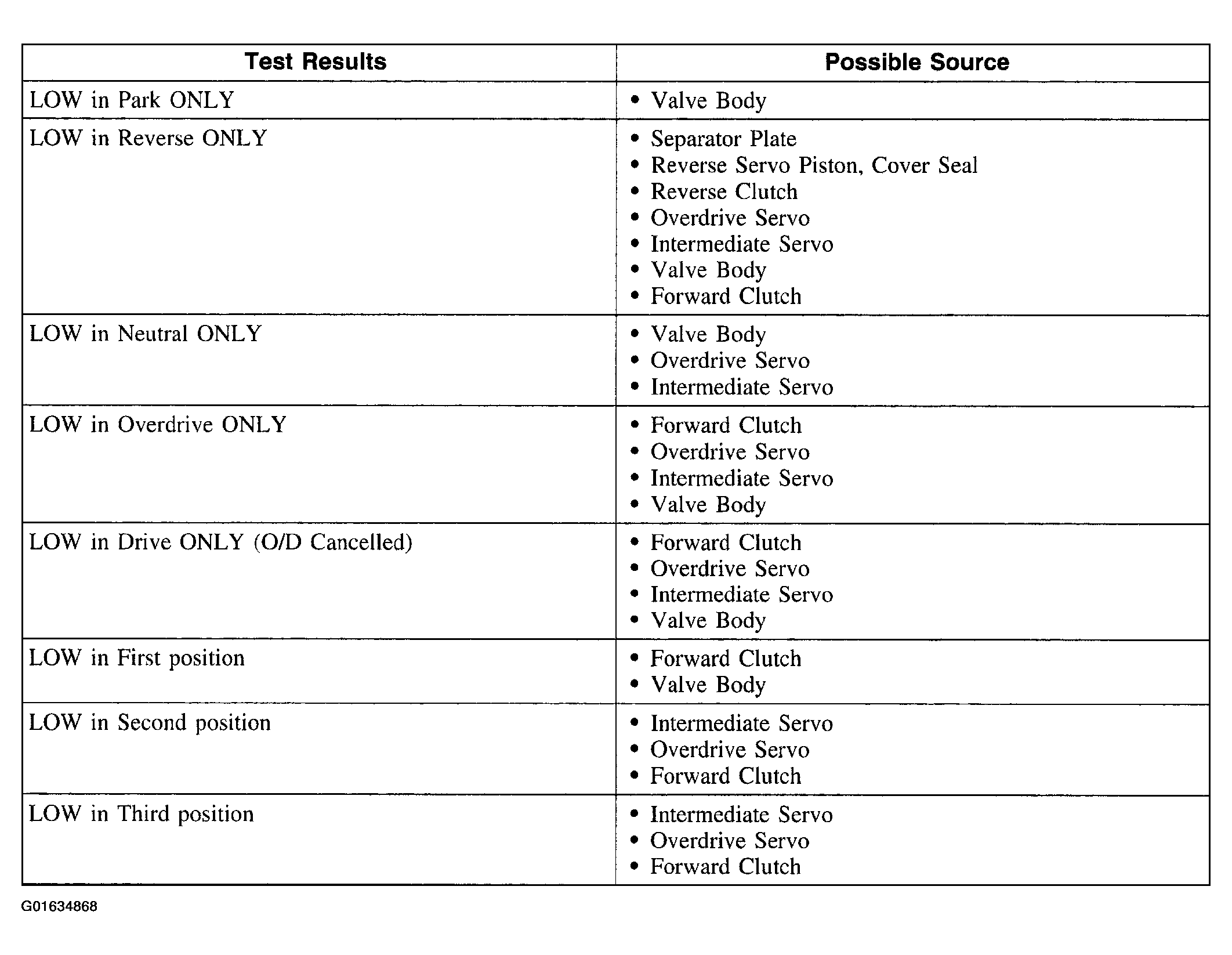

Fig 2: Line Pressure Diagnosis Chart (2 Of 2)
G01634868Courtesy of FORD MOTOR CO.
