Transmission Component Index

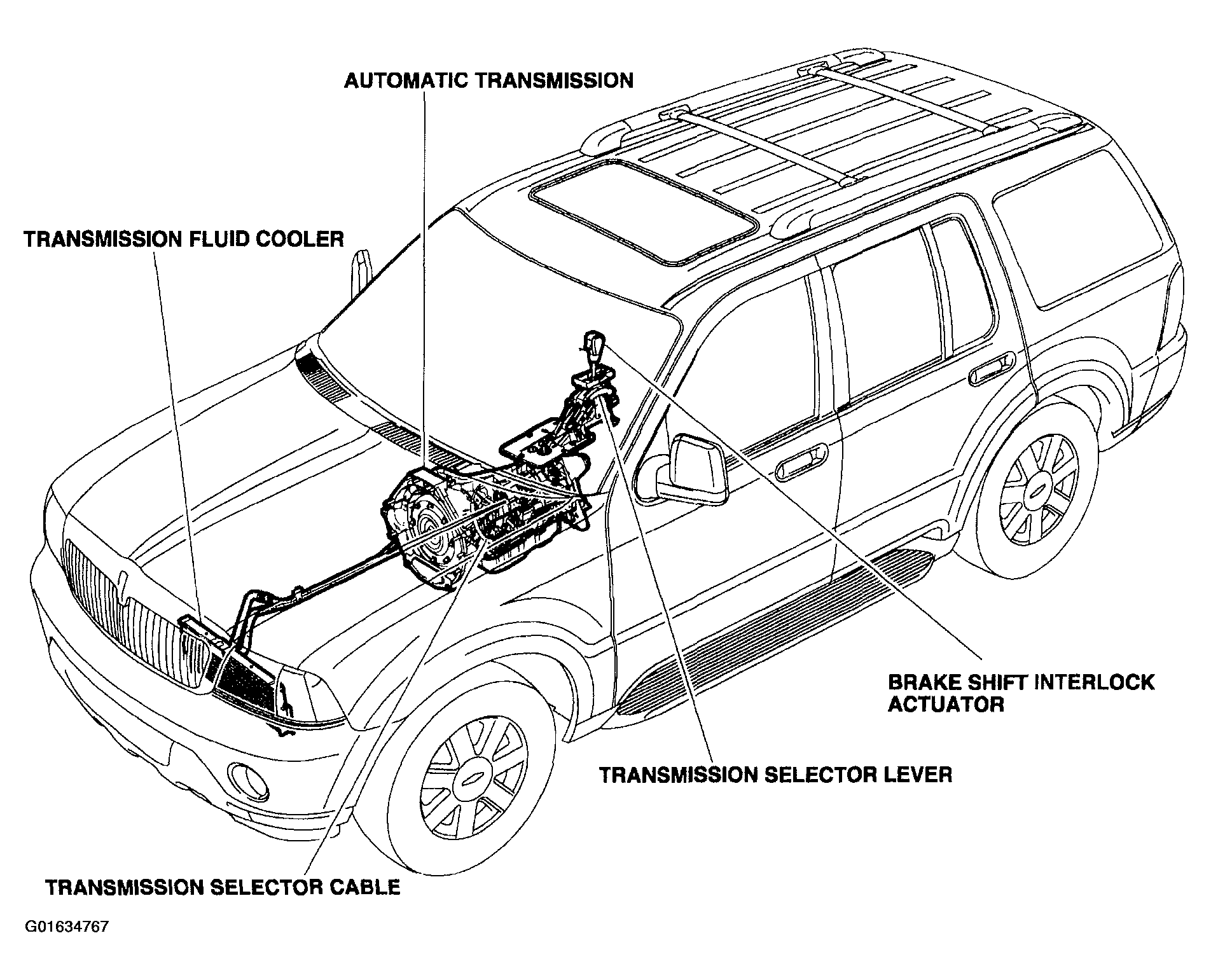

Fig 1: Identifying Transmission Components (1 Of 2)
G01634767Courtesy of FORD MOTOR CO.

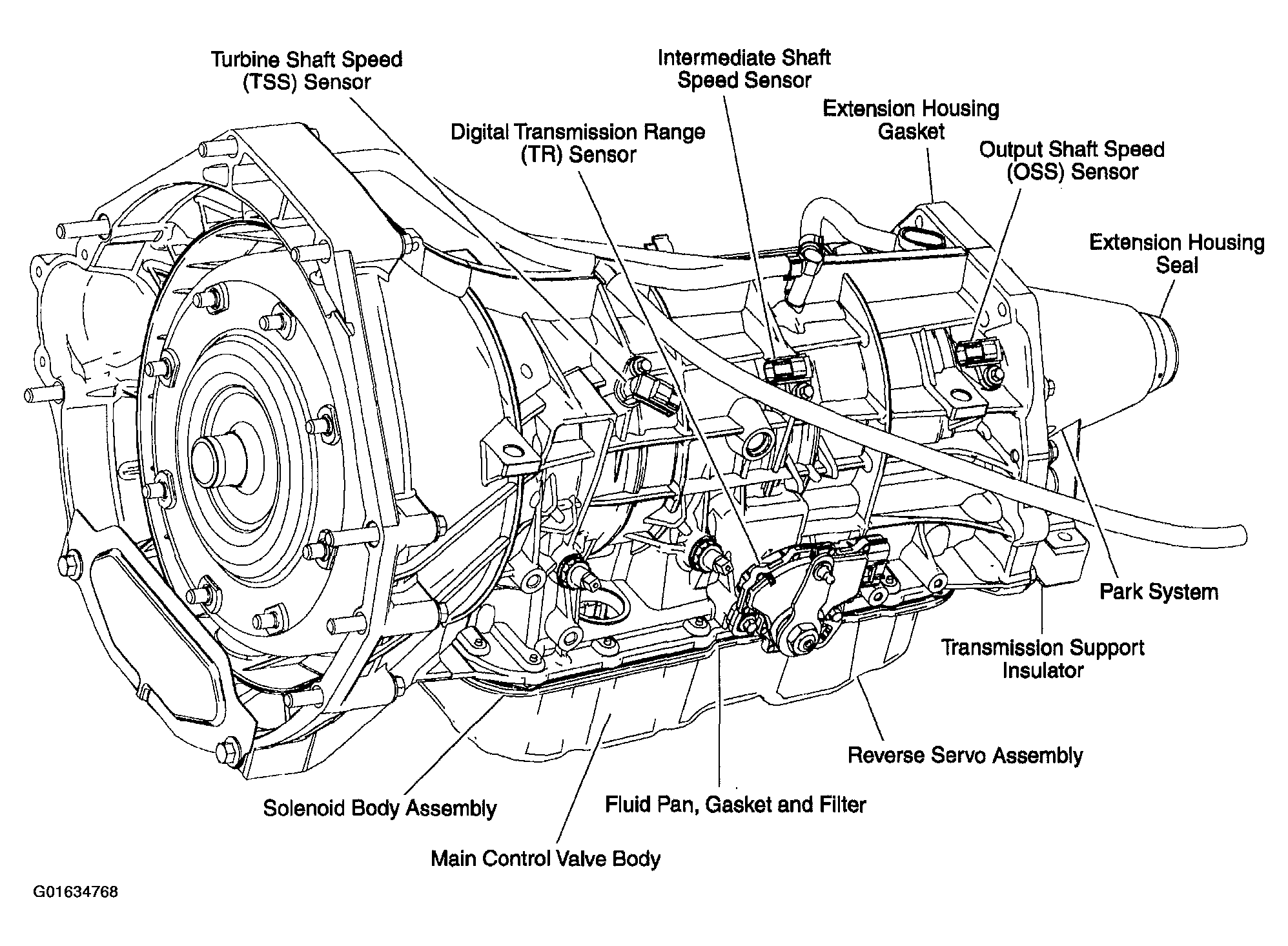

Fig 2: Identifying Transmission Components (2 Of 2)
G01634768Courtesy of FORD MOTOR CO.
