Speed Control Switch C208

Fig 1: Identifying Speed Control Switch C208 Connector
G01286964Courtesy of FORD MOTOR CO.

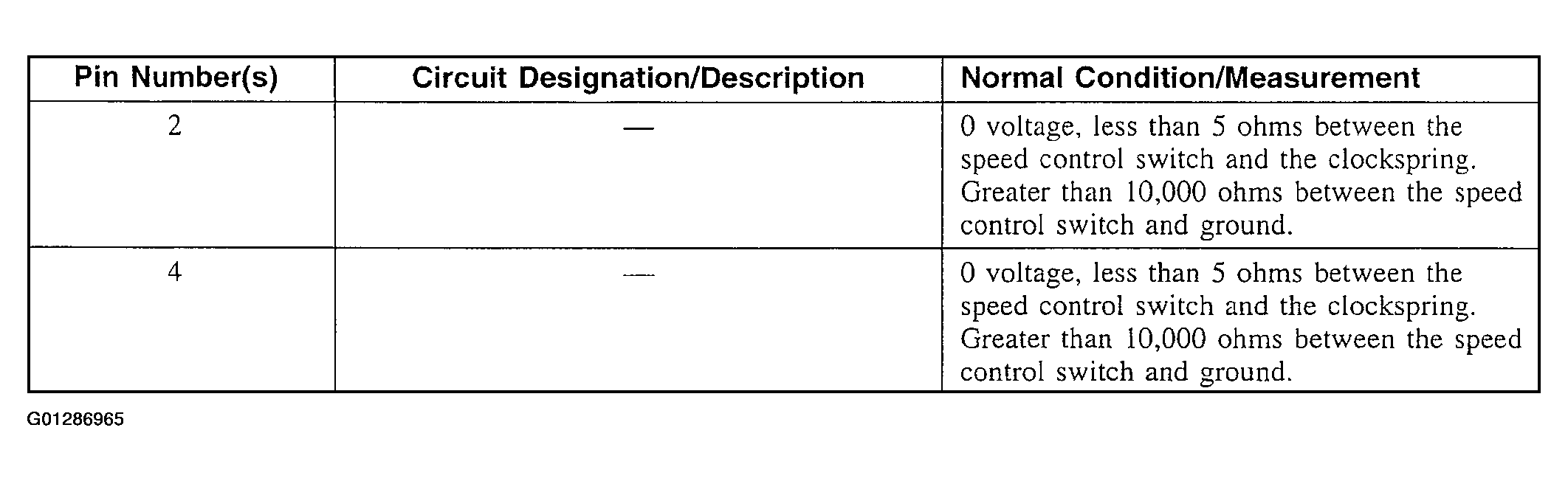

Fig 2: Connector Circuit Reference Chart
G01286965Courtesy of FORD MOTOR CO.
