Speed Control Switch

  1. Remove the air bag. For additional information, Refer to AIR BAG RESTRAINT SYSTEMS .
  2. Remove the components in the order indicated in Fig 1.

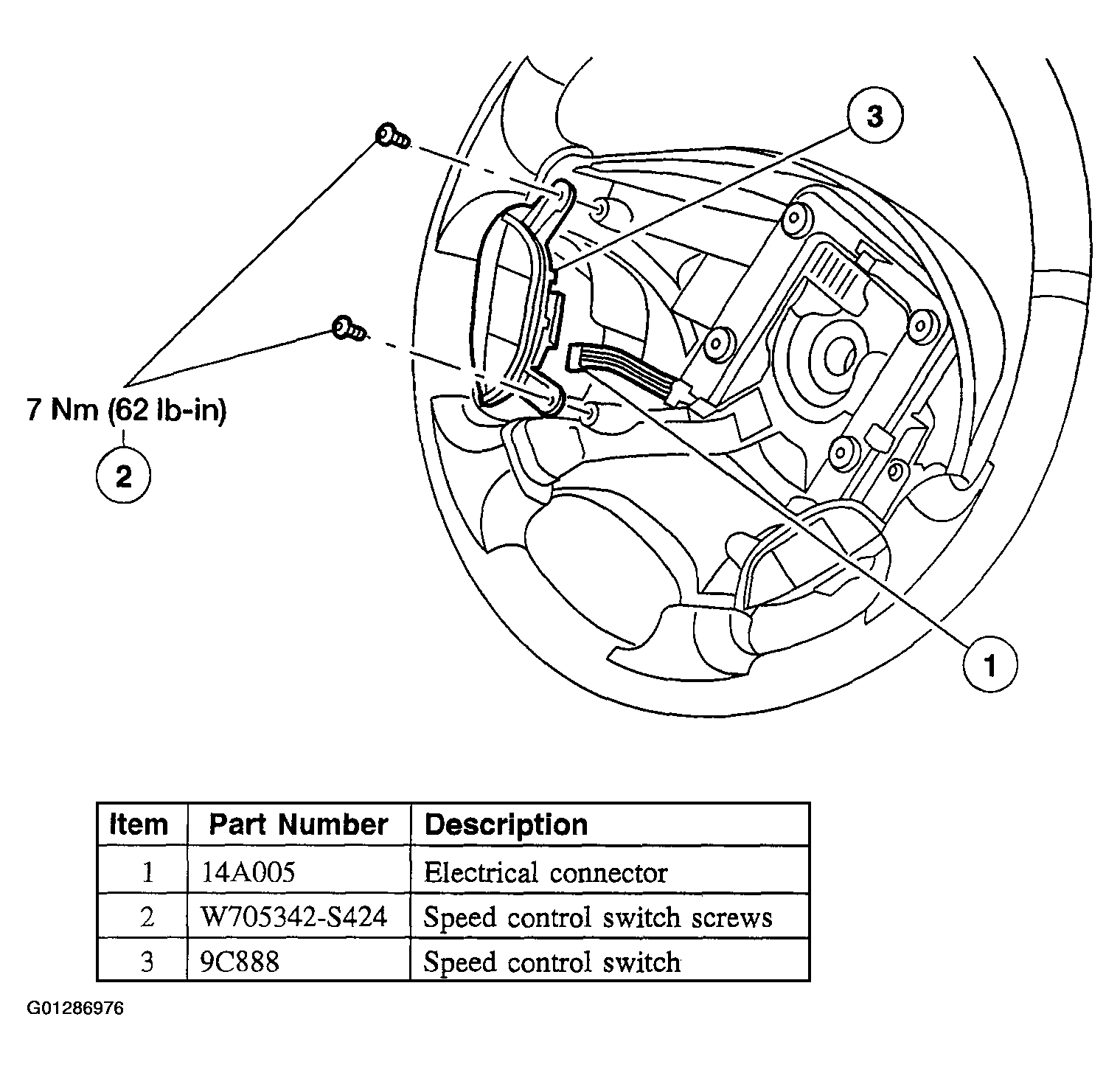

    Fig 1: Removing Vehicle Speed Control Components And Part Description Chart (1 Of 2)
    G01286976Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
