Navigation System Module C4209

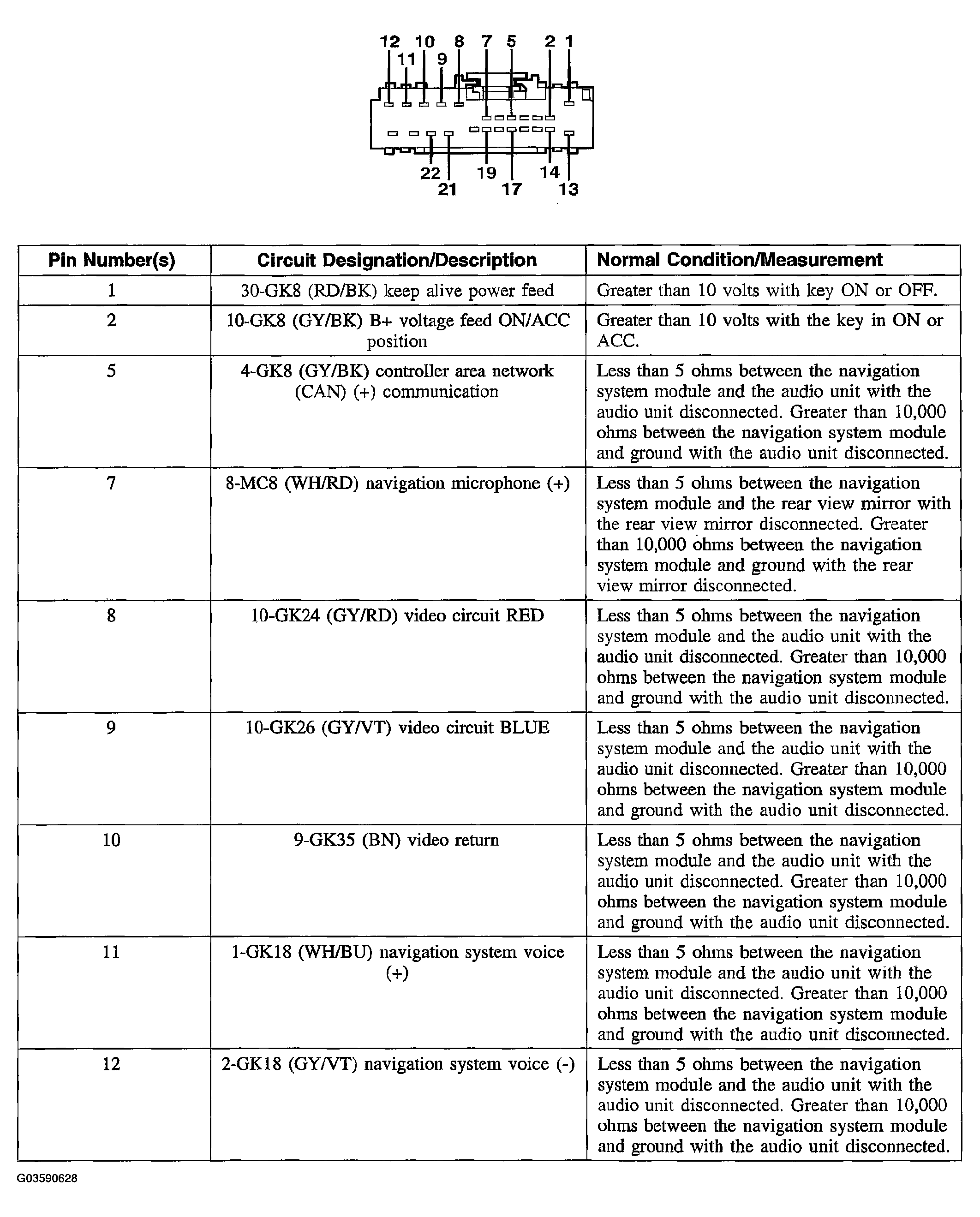

Fig 1: Identifying Navigation System Module C4209
G03590628Courtesy of FORD MOTOR CO.

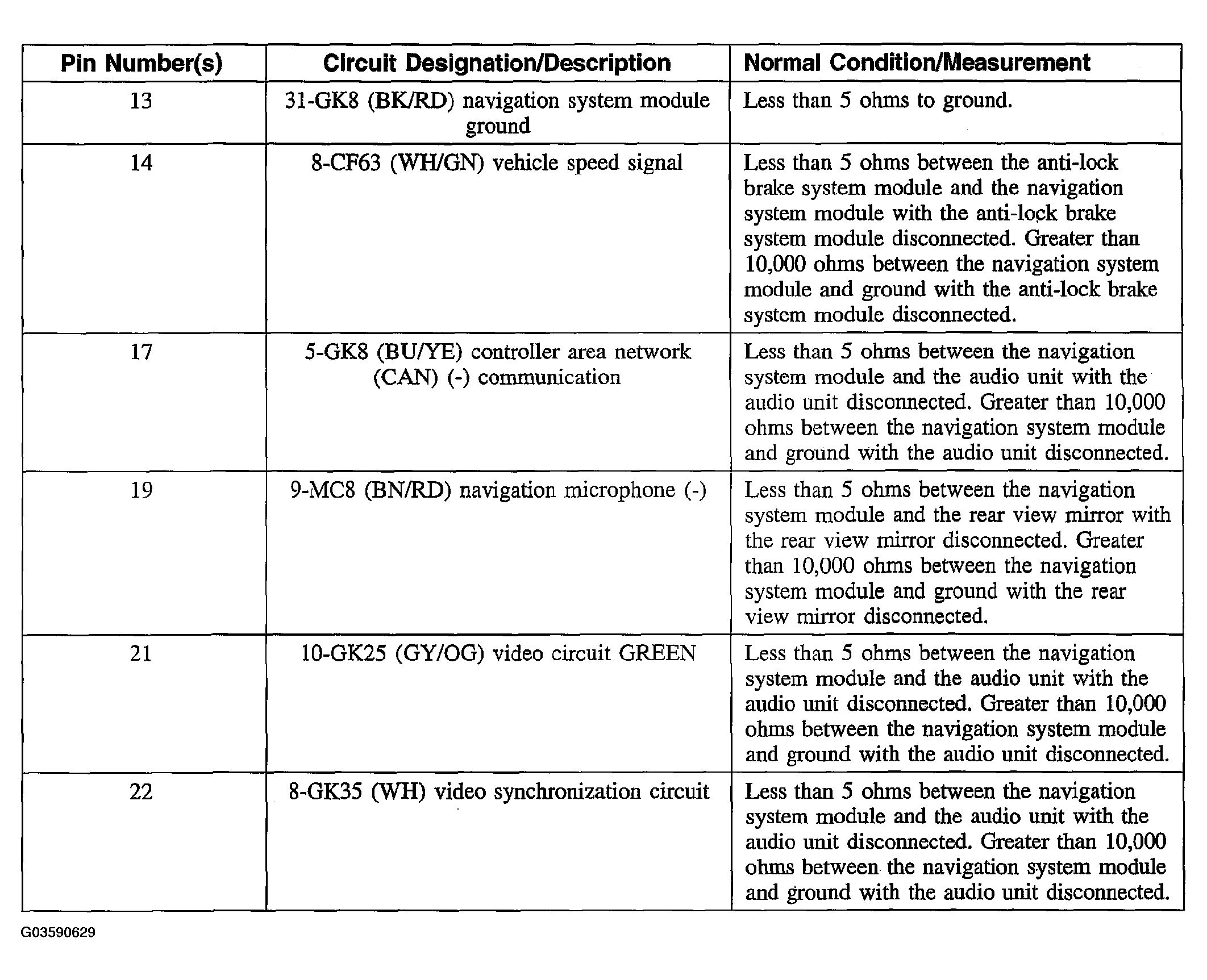

Fig 2: Navigation System Module C4209 Reference Chart
G03590629Courtesy of FORD MOTOR CO.
