Powertrain Control Module C175c

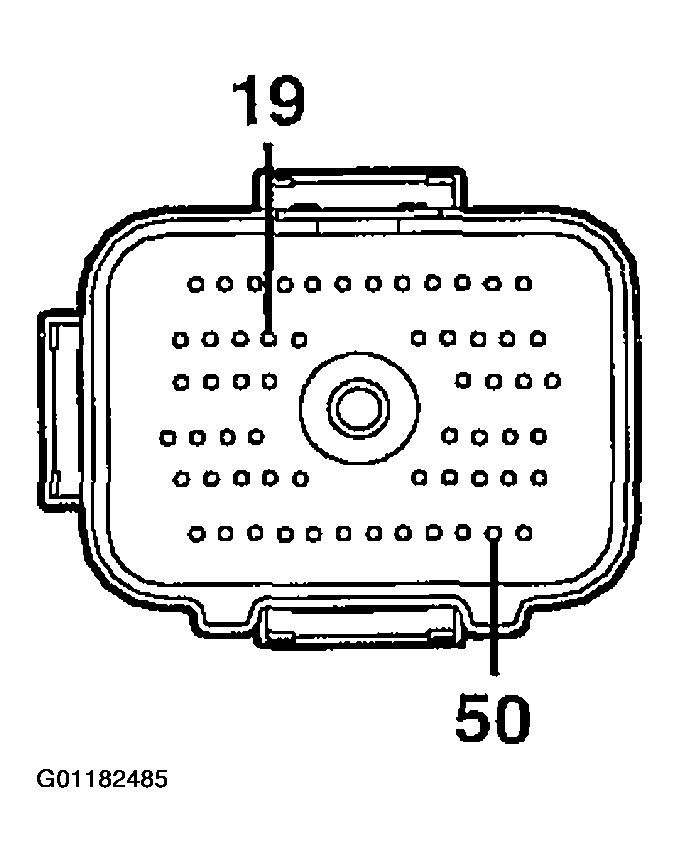

Fig 1: Identifying Powertrain Control Module C175c Connector Pinouts
G01182485Courtesy of FORD MOTOR CO.

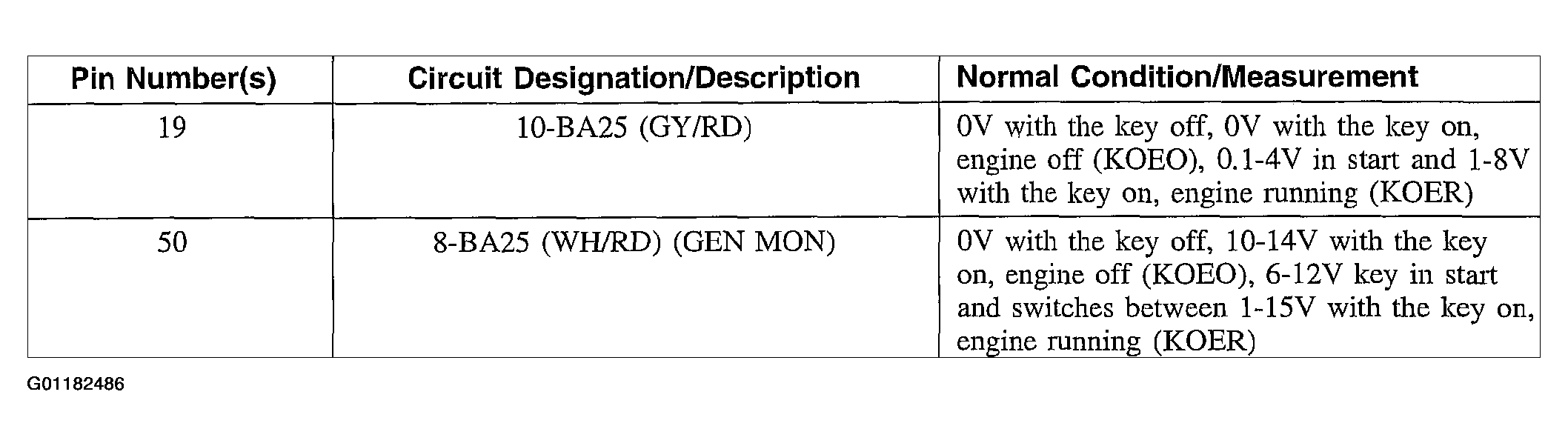

Fig 2: Powertrain Control Module C175c Connector Pin Reference Chart
G01182486Courtesy of FORD MOTOR CO.
