Anti-Lock Brake System/Traction Control (ABS/TC) Module C135 or Stability Assist Module C155
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

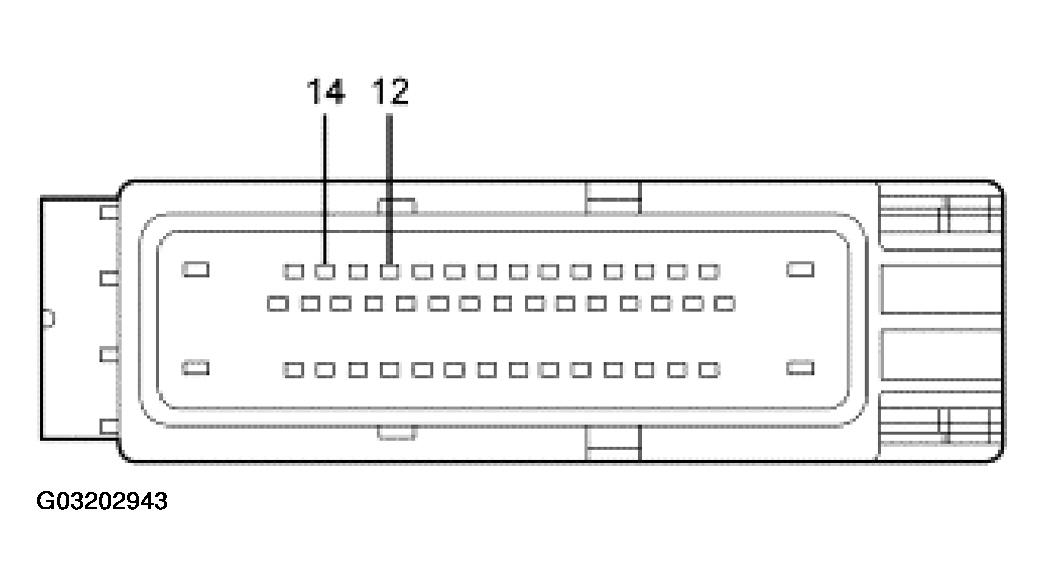

Fig 1: Identifying Anti-Lock Brake System/Traction Control (ABS/TC) Module C135 Or Stability Assist Module C155 Connector Pins
ANTI-LOCK BRAKE SYSTEM/TRACTION CONTROL (ABS/TC) MODULE C135 OR STABILITY ASSIST MODULE C155 PINS DESCRIPTION
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 12 | 4-CF6 (GY) SCP communication circuit | Less than 5 ohms between the ABS/TC module or stability assist module, and the DLC. Greater than 10,000 ohms to ground with all network modules disconnected. |
| 14 | 5-CF6 (BU) SCP communication circuit | Less than 5 ohms between the ABS/TC module or stability assist module, and the DLC. Greater than 10,000 ohms to ground with all network modules disconnected. |
