Front Electronic Module (FEM) C201a

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

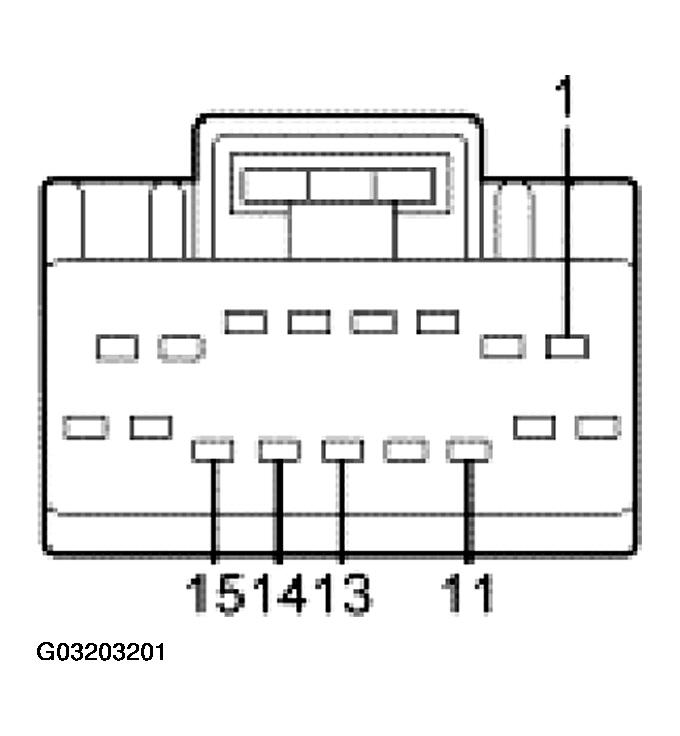

Fig 1: Identifying Front Electronic Module (FEM) C201A Connector Pins
G03203201Courtesy of FORD MOTOR CO.
FRONT ELECTRONIC MODULE (FEM) C201A CONNECTOR PINS DESCRIPTION

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
1 29S-DK22 (OG/WH) FEM power supply. 10 volts or greater at the FEM connector.
11 31-DK20A (BK/RD) FEM ground. Less than 5 ohms between the FEM connector and ground.
13 31-DK20B (BK/RD) FEM ground. Less than 5 ohms between the FEM connector and ground.
14 31-DK20C (BK/RD) FEM ground. Less than 5 ohms between the FEM connector and ground.
15 31-DK20D (BK/RD) FEM ground. Less than 5 ohms between the FEM connector and ground.
