Steering Gear: Notes

Special Tool(s)

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

1. Remove the steering gear. For additional information, Refer to STEERING GEAR .
2. Drain any excess power steering fluid from the steering gear and then clean the exterior of the gear using a suitable solvent.
3. Index-mark the tie-rod end to the tie-rod end jam nut and to the spindle tie- rod.
4. Disassemble the components in the order indicated in Fig 2.
5. To assemble, reverse the disassembly procedure.

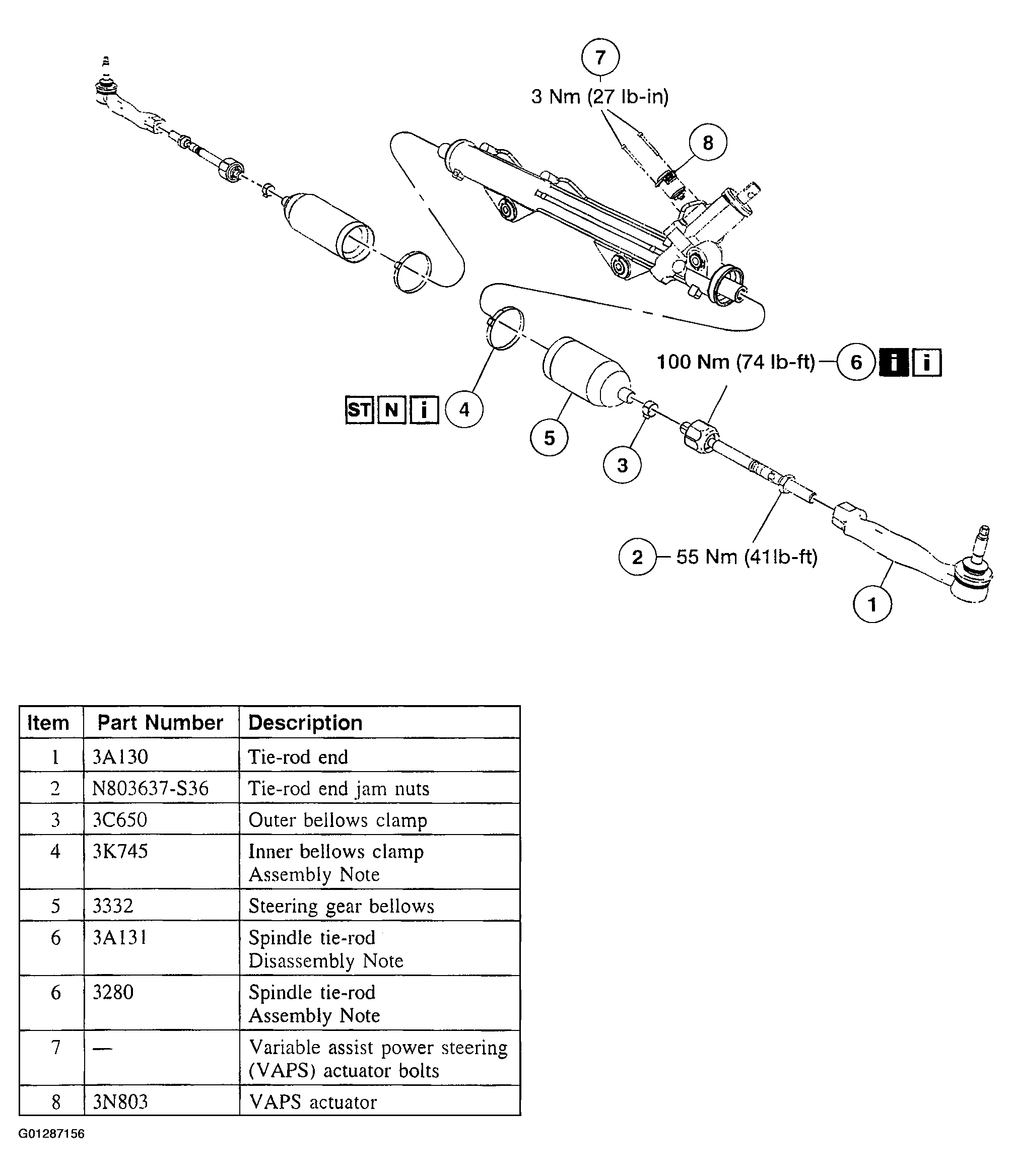

   Fig 2: Assembling Steering Gear Components And Parts Description Chart

   Courtesy of FORD MOTOR CO.
6. After installing the steering gear in the vehicle, adjust the front toe. For additional information, Refer to SPECIFICATIONS & PROCEDURES article .
