Adjustable pedal switch - without memory

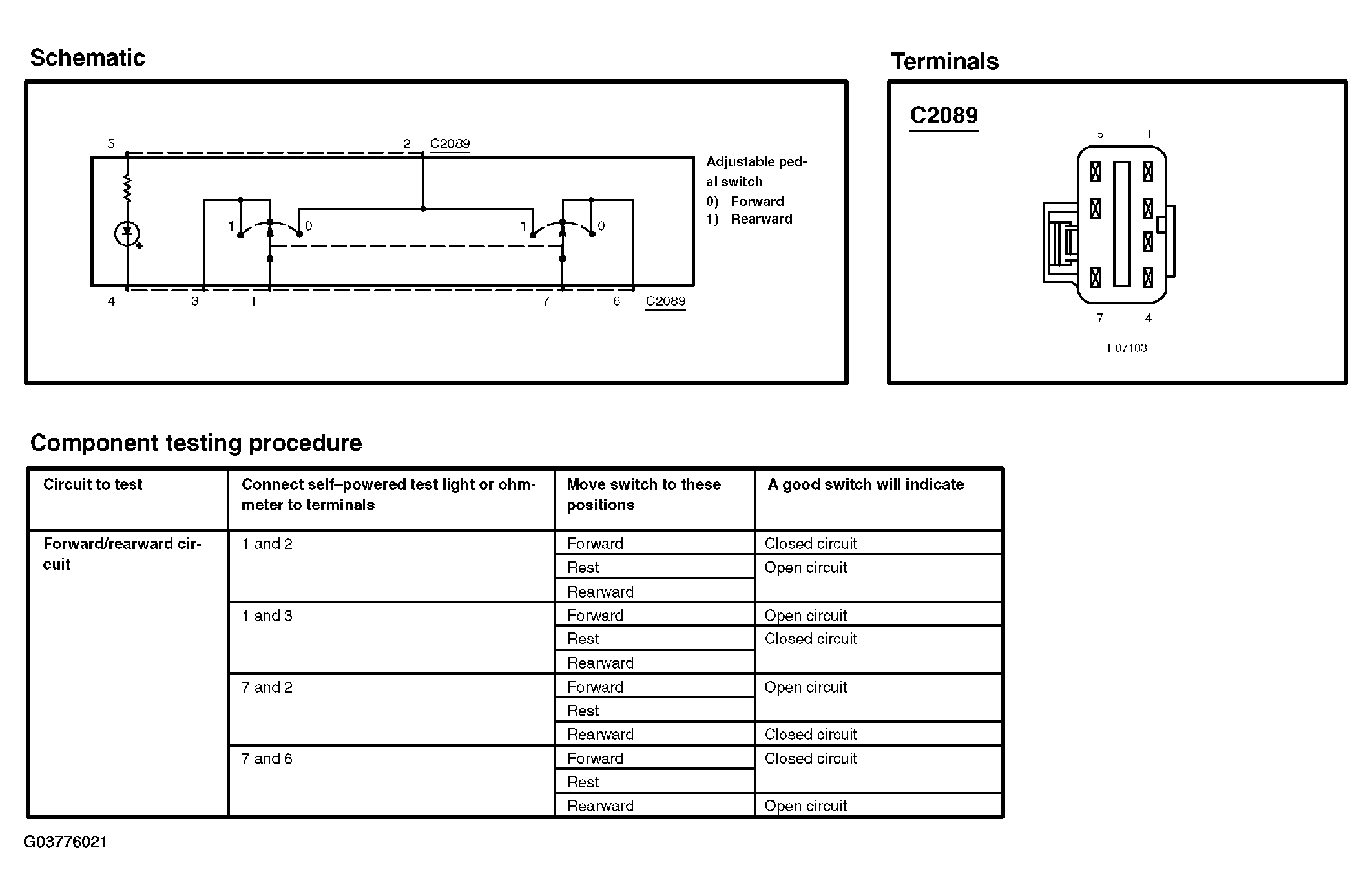

Fig 1: Testing Adjustable Pedal Switch - Without Memory
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
