Speed Control Cable: Installation

  1. Insert the speed control cable slug into the speed control actuator pulley slot.
    1. Gently compress the speed control actuator spring.

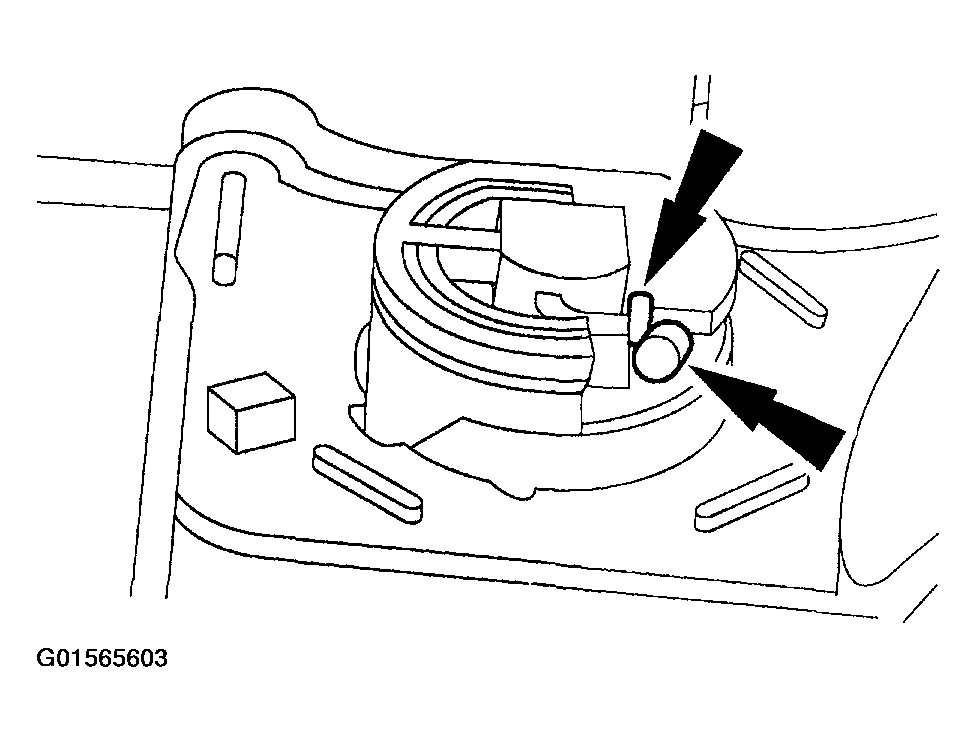

      Fig 1: Compressing Speed Control Actuator Spring
      G01565603Courtesy of FORD MOTOR CO.
    2. NOTE: Make sure the rubber seal is fully seated onto the speed control actuator cable cap.
    NOTE: Incorrect wrapping of the speed control actuator cable around the speed control actuator pulley may result in a high idle condition.
    Fig 2: Releasing Compressed Spring
    G01565604Courtesy of FORD MOTOR CO.
  2. Release the compressed spring while aligning the speed control actuator cable cap tabs with the slots in the speed control actuator housing
  3. Rotate the speed control actuator cable cap until the locking arm engages.
    Fig 3: Rotating Speed Control Actuator Cable
    G01565605Courtesy of FORD MOTOR CO.
    4. NOTE: Make sure the speed control cable is installed to all cable retainer clips.
  4. Install the speed control actuator cable.
    1. Open the throttle valve.
    2. Install the speed control cable to the throttle valve.
    3. Install the speed control cable to the bracket.

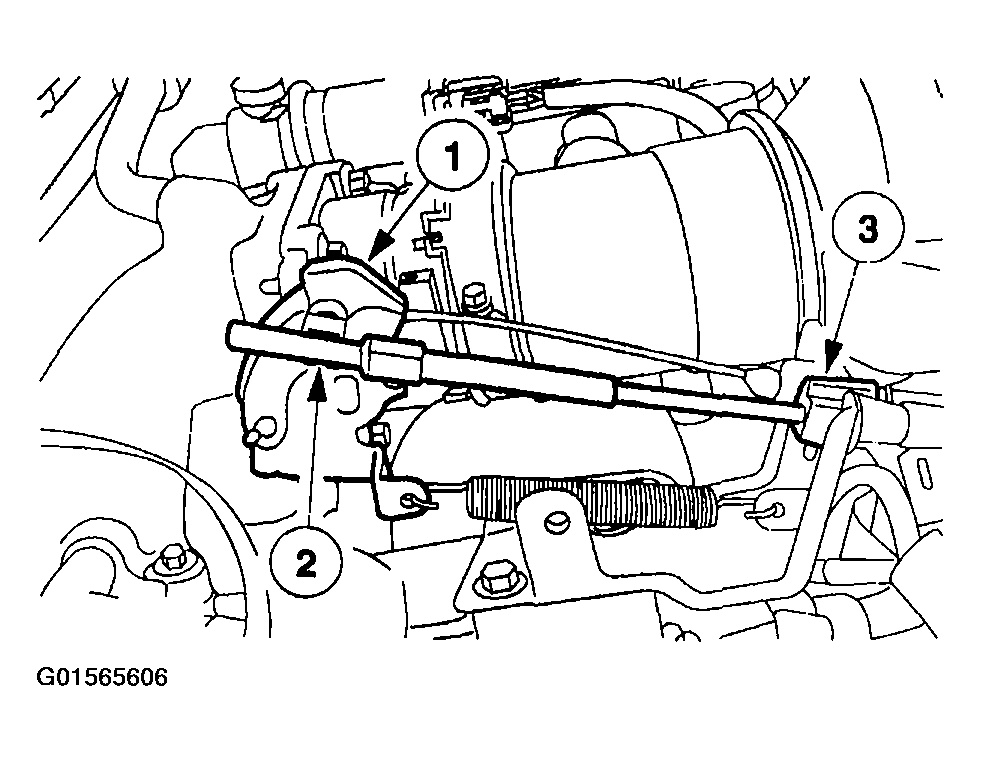

      Fig 4: Installing Speed Control Cable To Bracket
      G01565606Courtesy of FORD MOTOR CO.
