Climate Controlled Seat Module: Installation
WARNING:
To reduce the risk of serious personal injury, read and follow all warnings, cautions, and notes at the beginning of the removal procedure.

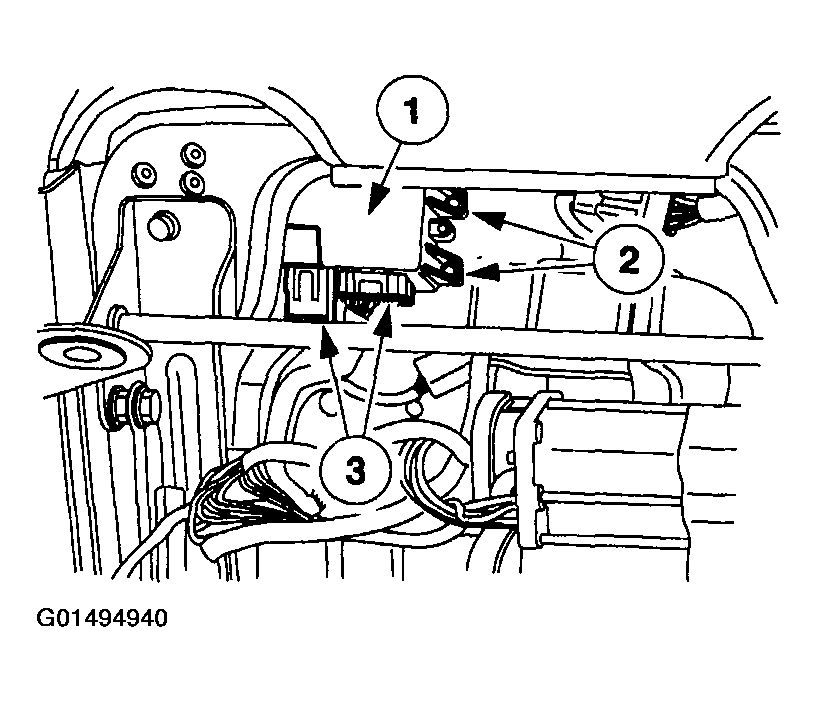

- Install the temperature controlled seat module.
- Install the temperature controlled seat module.
- Install the screws.
- Connect the temperature controlled seat module electrical connectors.
- Install the 40 percent seat. For additional information, refer to FRONT SEAT - 40 PERCENT .
- Reactivate the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
- With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
WARNING:
To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the front seat removal and installation procedure.
WARNING:
To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.
WARNING:
The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
