Lumbar Control Switch: Installation
WARNING:
To reduce the risk of serious personal injury, read and follow all warnings, cautions, and notes at the beginning of the removal procedure.
- Install the power lumbar switch into the side shield.

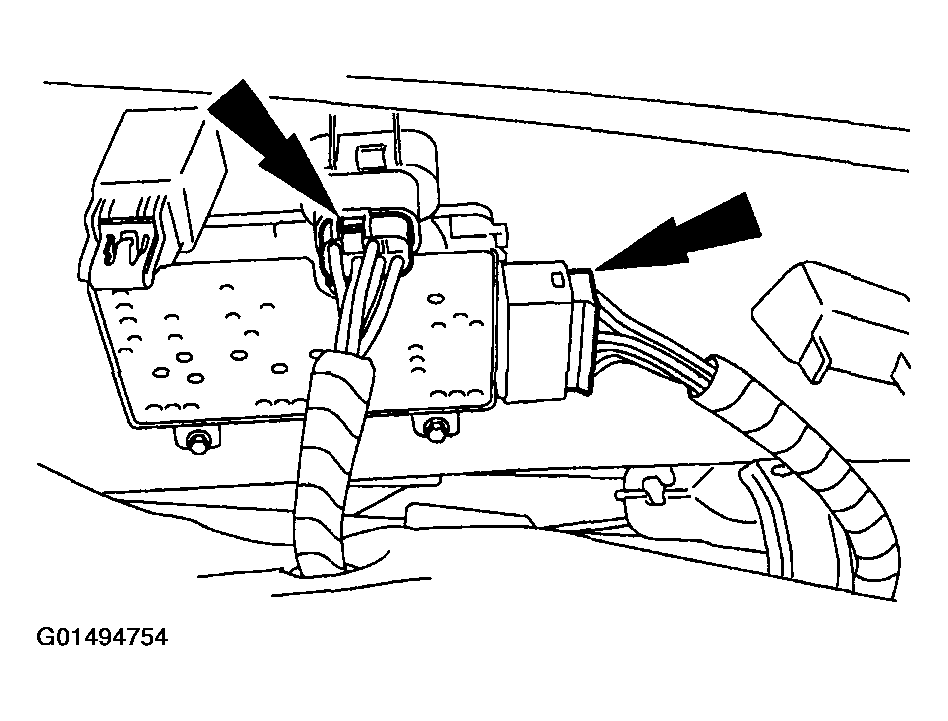

- Connect the 8-way power seat and power lumbar switch electrical connectors.

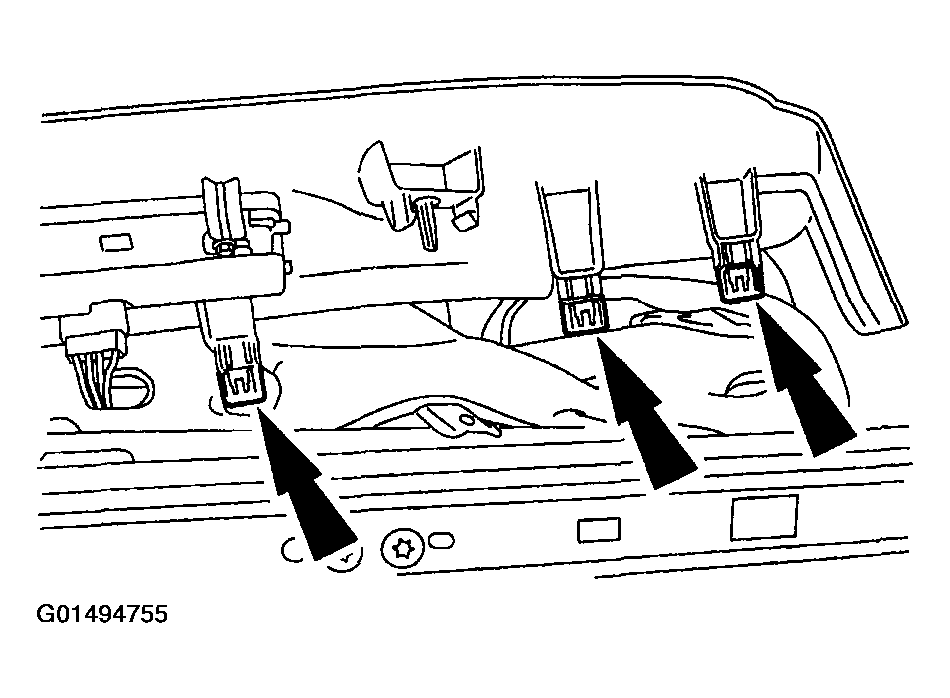

- Push to install the three side shield retainers onto the seat frame.
- Access and install the front side shield screw.
- Install the 40 percent seat. For additional information, refer to FRONT SEAT - 40 PERCENT .
-
Reactivate the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
-
With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
WARNING:
To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in AIR BAG RESTRAINT SYSTEMS
.
WARNING:
To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in AIR BAG RESTRAINT SYSTEMS
.
WARNING:
The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
