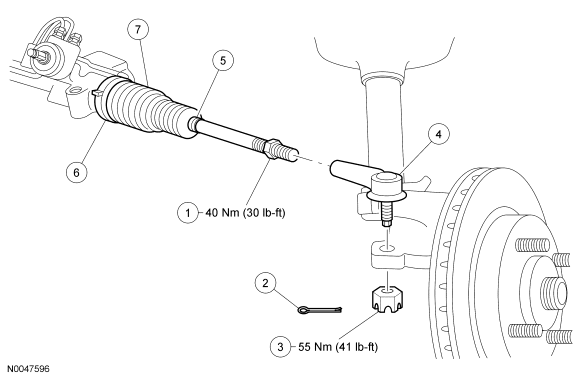

Steering Linkage - Exploded View
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Tie-rod end jam nut (part of 3280) |
| 2 | - | Cotter pin |
| 3 | W700318 | Tie-rod end nut |
| 4 | 3289-GA | Outer tie-rod end |
| 5 | 3C650B | Steering gear boot clamp, outer |
| 6 | 3C650A | Steering gear boot clamp, inner |
| 7 | 3K661 | Steering gear boot |
- For additional information, refer to the following procedures.
