Fog Lamp: Notes

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure the headlamp switch and ignition switch are in the OFF position.

Raise and support the vehicle. .
To remove individual components, only carry out the following steps.

Fig 1: Fog Lamp Removing Sequence Index
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in Fig 2.

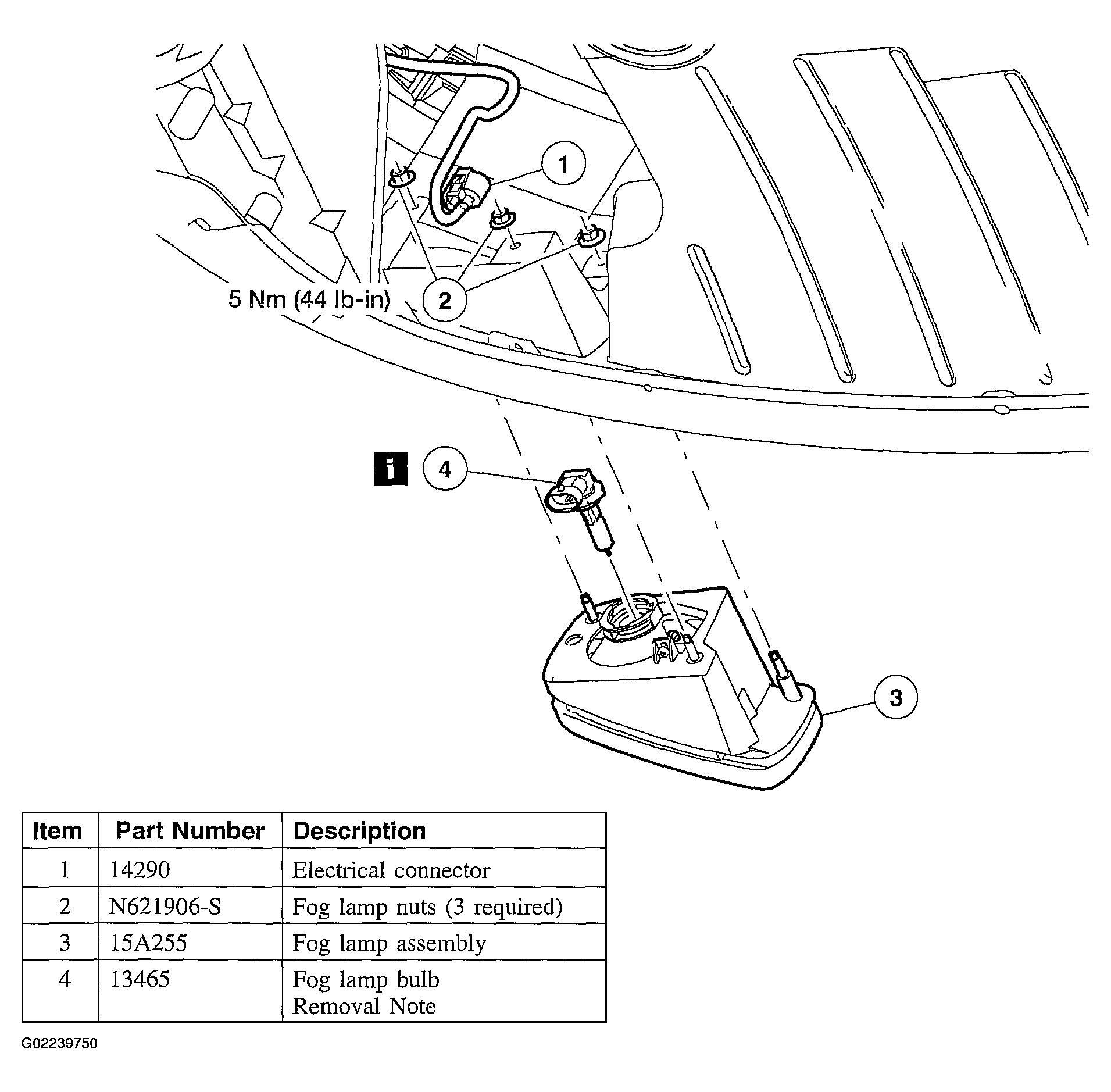

Fig 2: Removing Sequence Of Fog Lamp
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
