Headlamp Assembly: Notes

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure the headlamp switch and ignition switch are in the OFF position.

To remove individual components, only carry out the following steps.

Fig 1: Headlamp Assembly Removing Sequence Index
Courtesy of FORD MOTOR CO.
View 1 of 2. Remove the components in the order indicated in Fig 2.

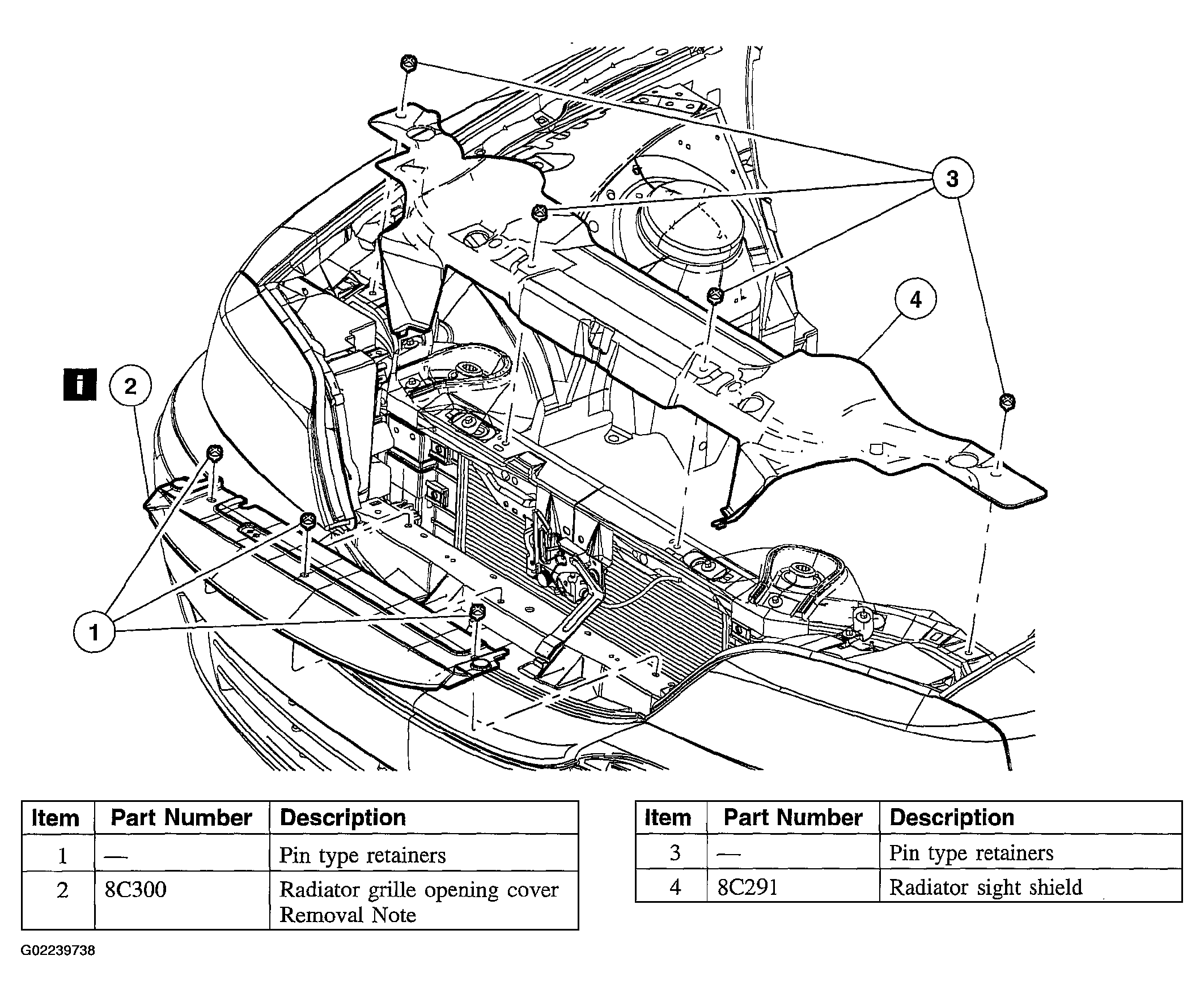

Fig 2: Removing Sequence Of Headlamp Assembly (1 Of 2)
Courtesy of FORD MOTOR CO.
View 2 of 2. Remove the components in the order indicated in Fig 3.

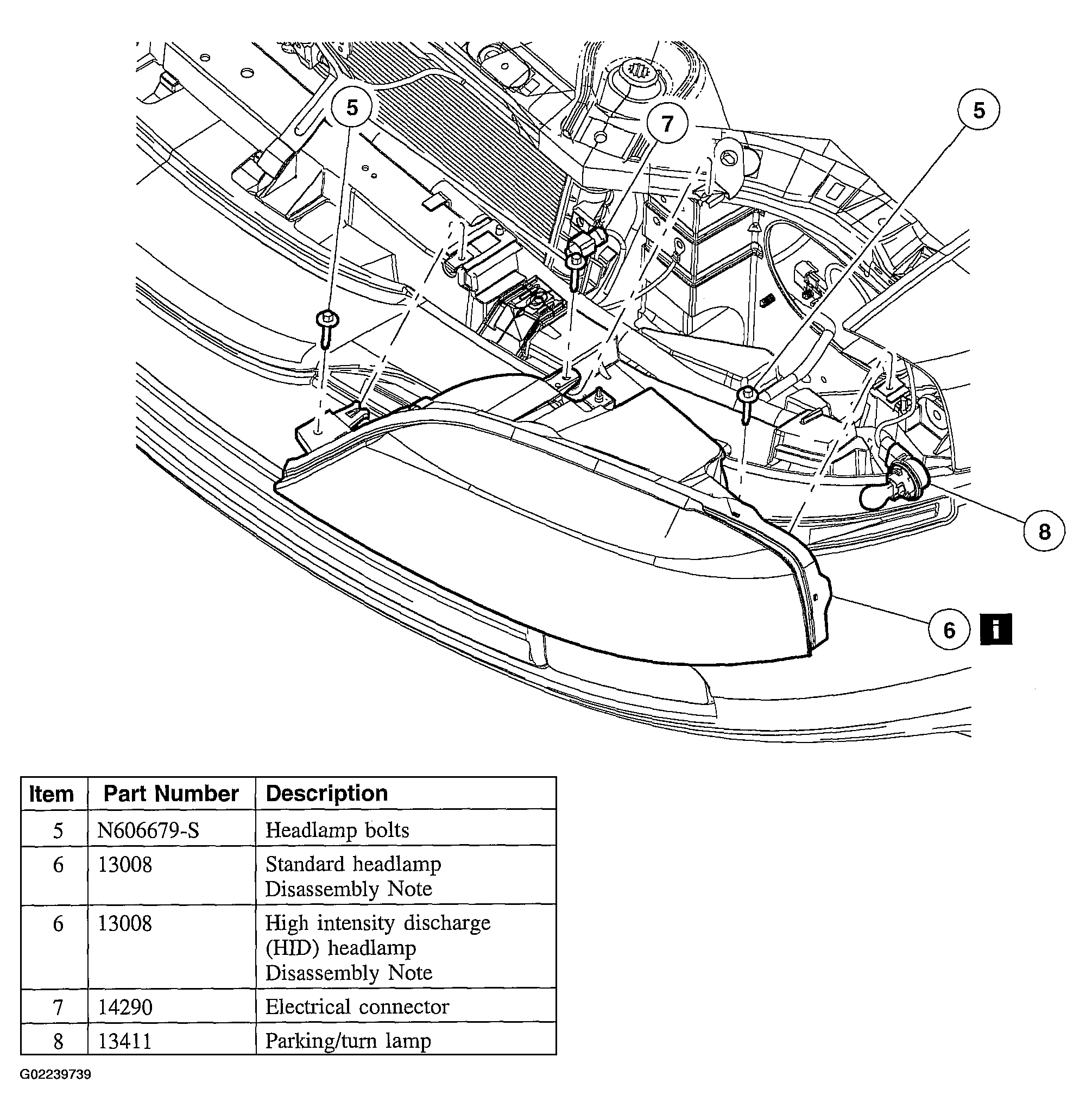

Fig 3: Removing Sequence Of Headlamp Assembly (2 Of 2)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
