Removal And Installation

WARNING: This page is about a different car, the 2004 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Prior to removal of the module, it is necessary to upload the module configuration information to a diagnostic tool. This information needs to be downloaded into the new module once installed. For additional information, refer to MODULE CONFIGURATION .

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the driver door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Disconnect the electrical connectors from the DDM.

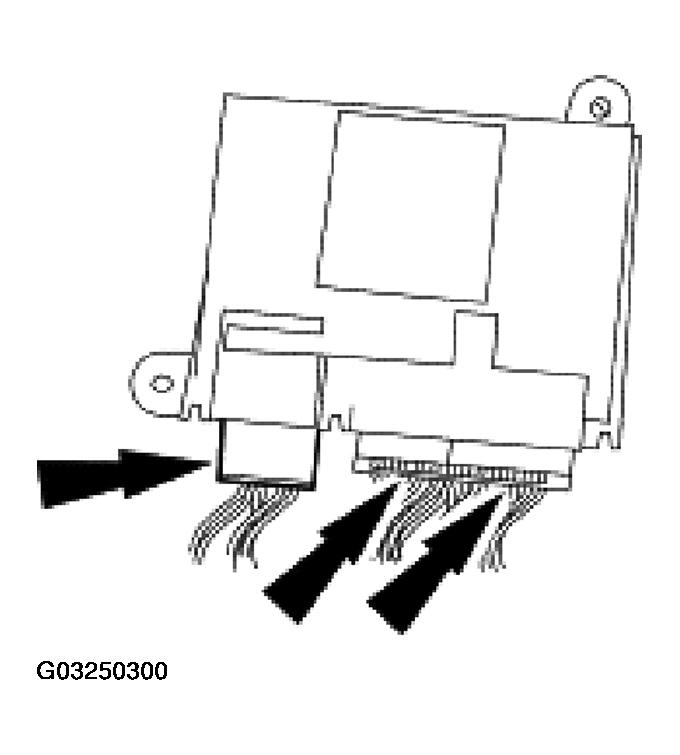

Fig 1: Disconnecting Electrical Connectors From DDM
Courtesy of FORD MOTOR CO.
Remove the DDM.

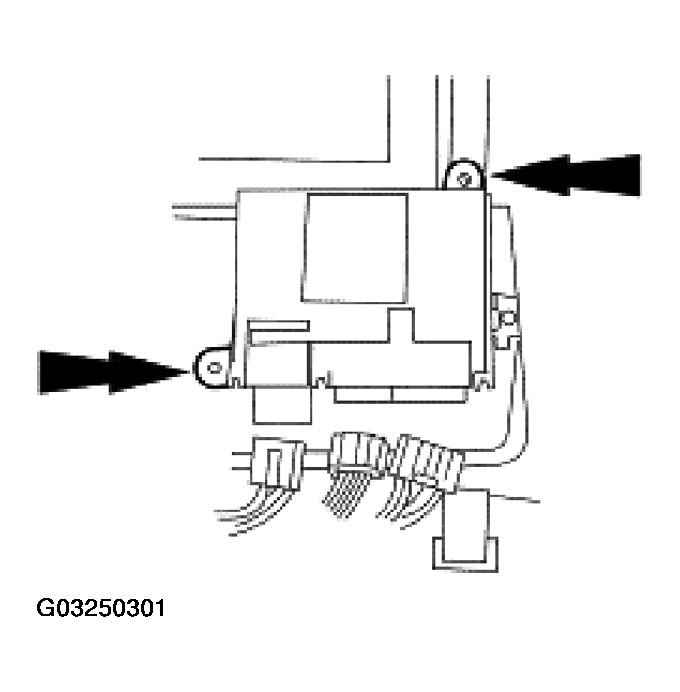

Fig 2: Removing DDM
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
