Pinpoint Test C

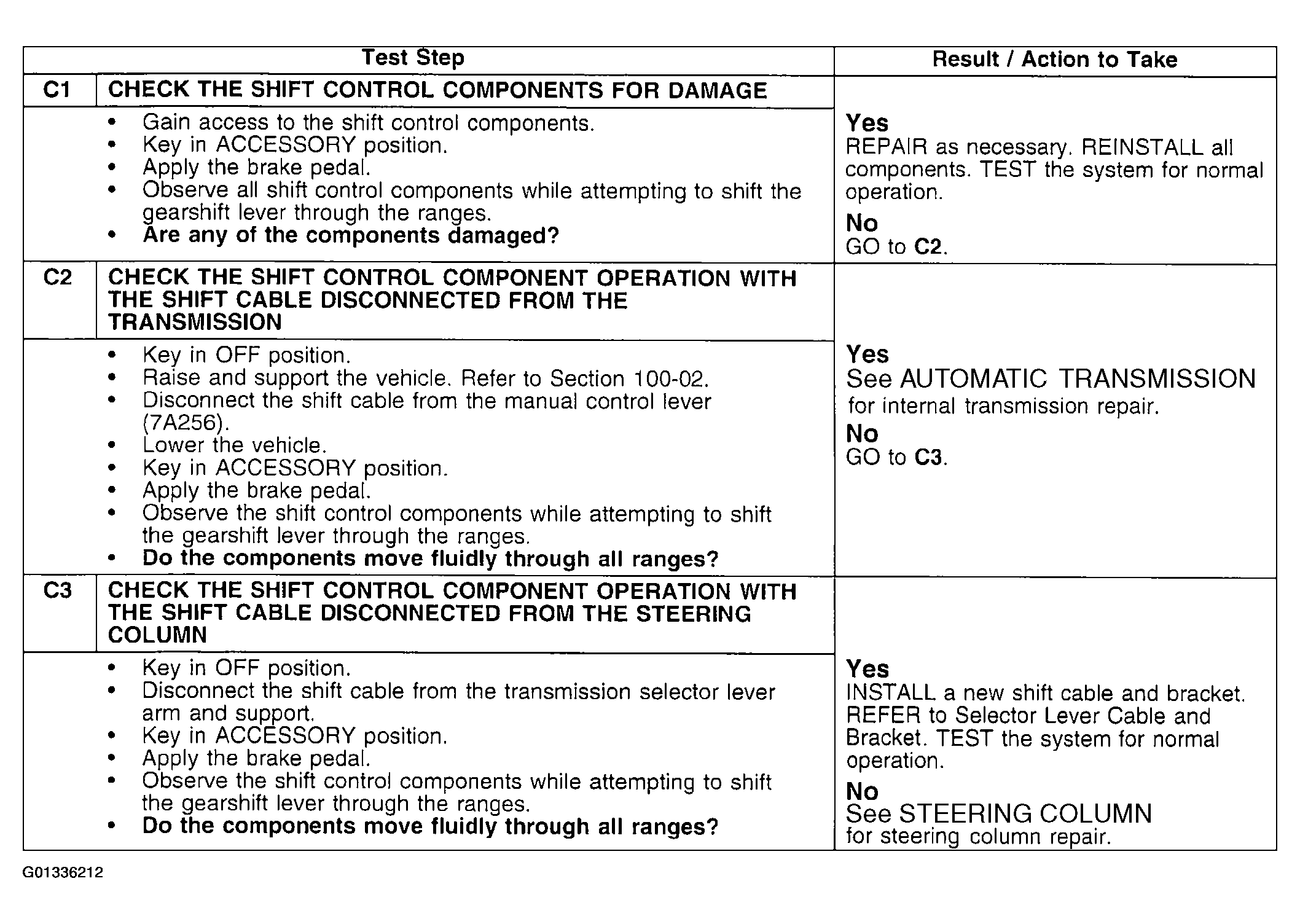

Fig 1: Pinpoint Test C: The Control Linkage Is Binding
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
