Relay - Micro ISO
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Relay - Micro ISO: Notes

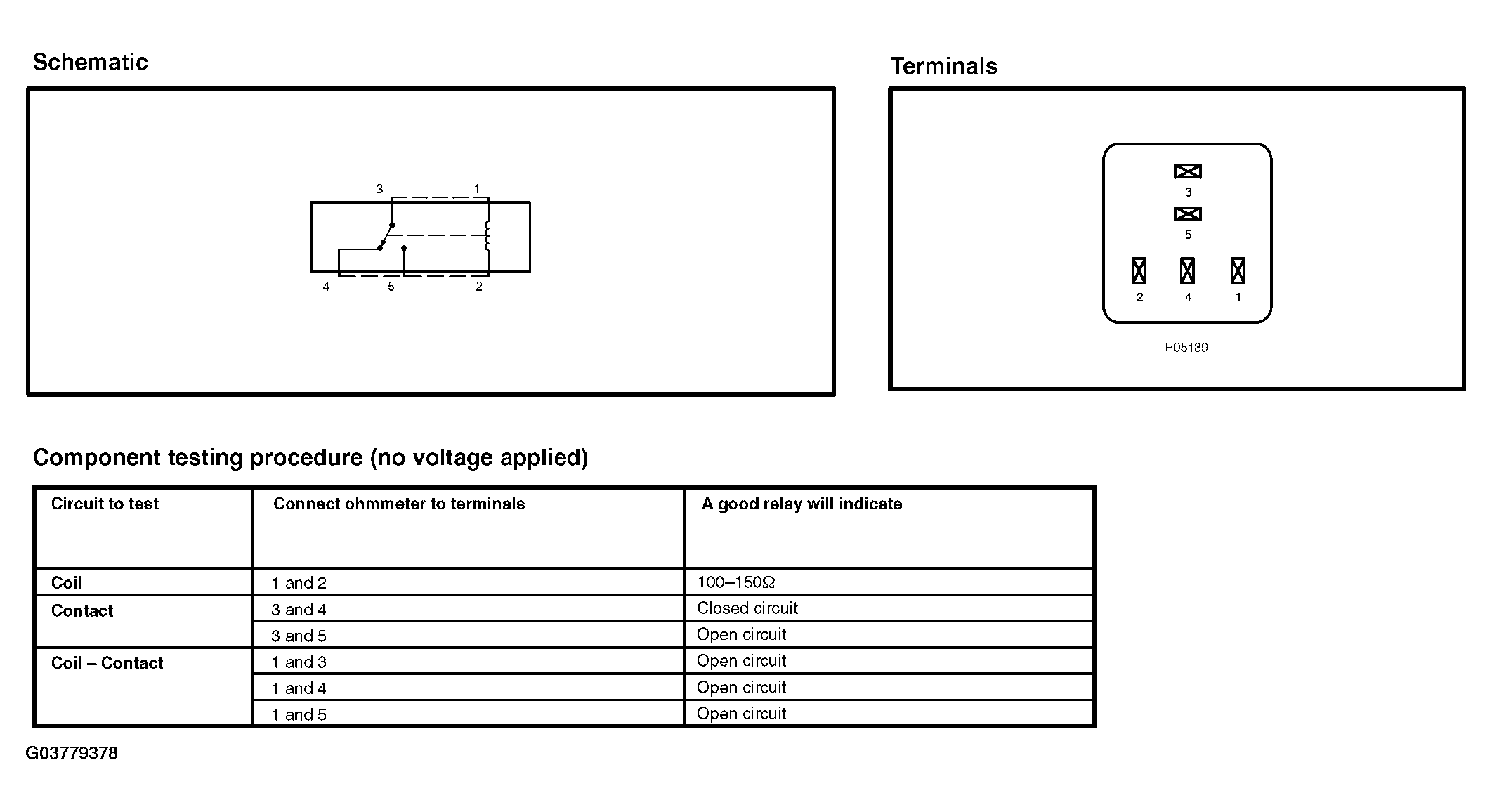

Fig 1: Testing Relay - Micro ISO
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
