Door Lock Switch

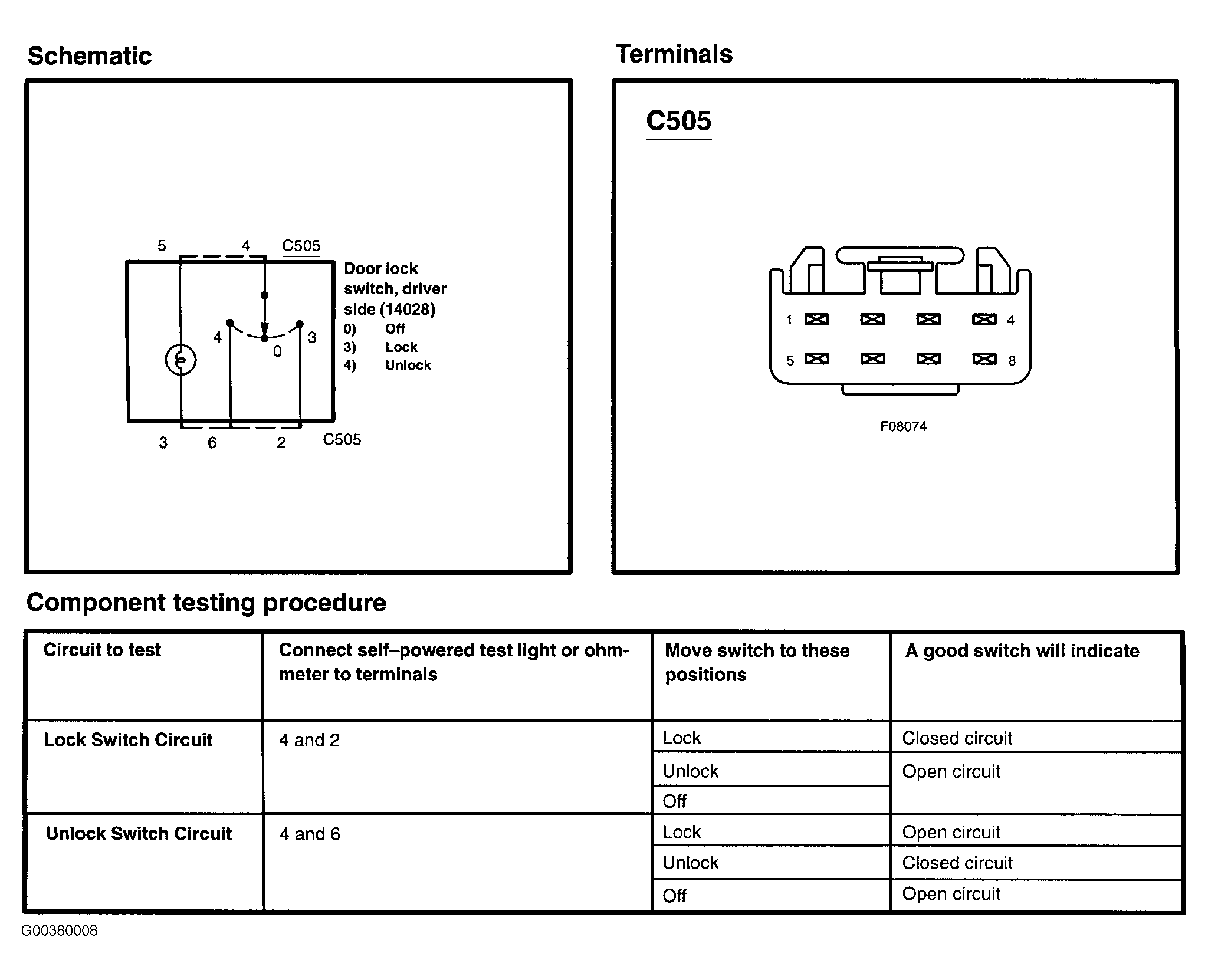

Fig 1: Testing Door Lock Switch - Driver Side
G00380008Courtesy of FORD MOTOR CO.

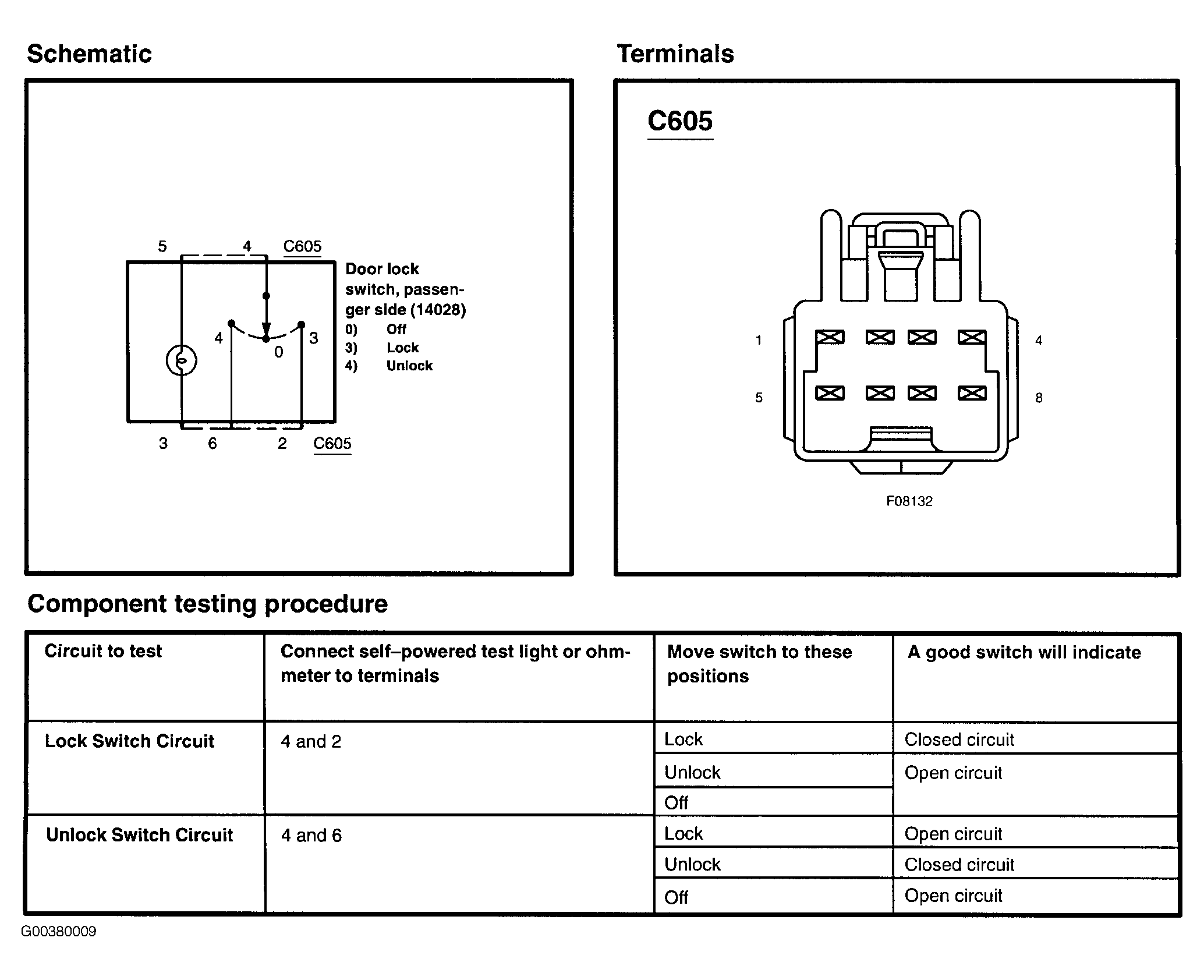

Fig 2: Testing Door Lock Switch - Passenger Side
G00380009Courtesy of FORD MOTOR CO.
