Ambient Air Temperature Sensor C132

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Ambient Air Temperature Sensor C132
G01182929Courtesy of FORD MOTOR CO.

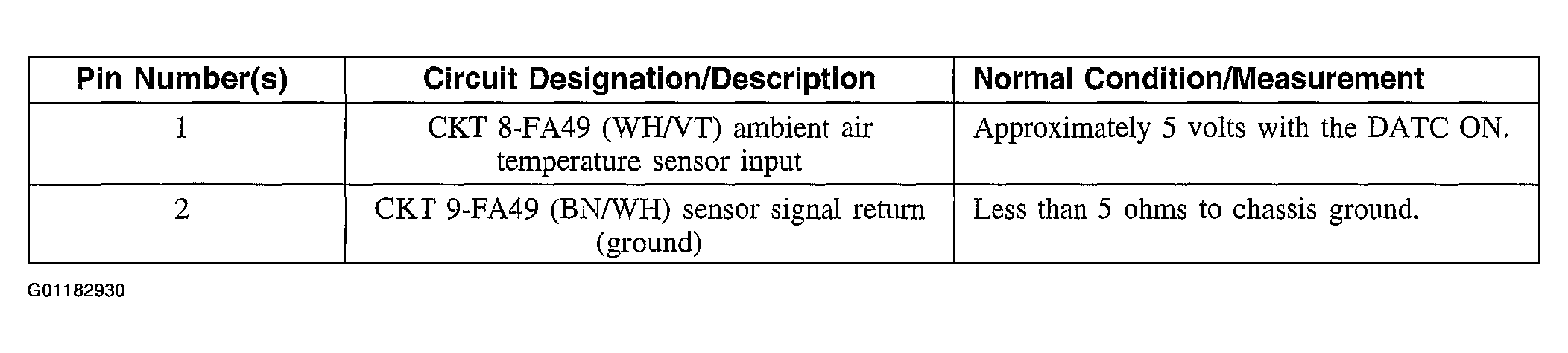

Fig 2: Ambient Air Temperature Sensor C132 Pin Specifications Chart (1 - 2)
G01182930Courtesy of FORD MOTOR CO.
