Blower Motor C288

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Blower Motor C288
G01182950Courtesy of FORD MOTOR CO.

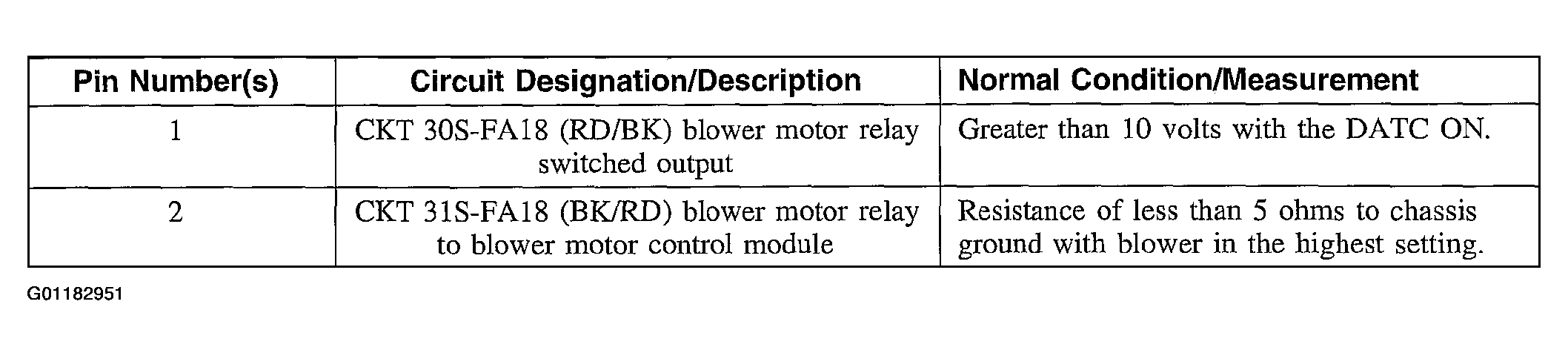

Fig 2: Blower Motor C288 Pin Specifications Chart (1 - 2)
G01182951Courtesy of FORD MOTOR CO.
